12 SERVICE WORK ON THE CHASSIS
98
E01224-10

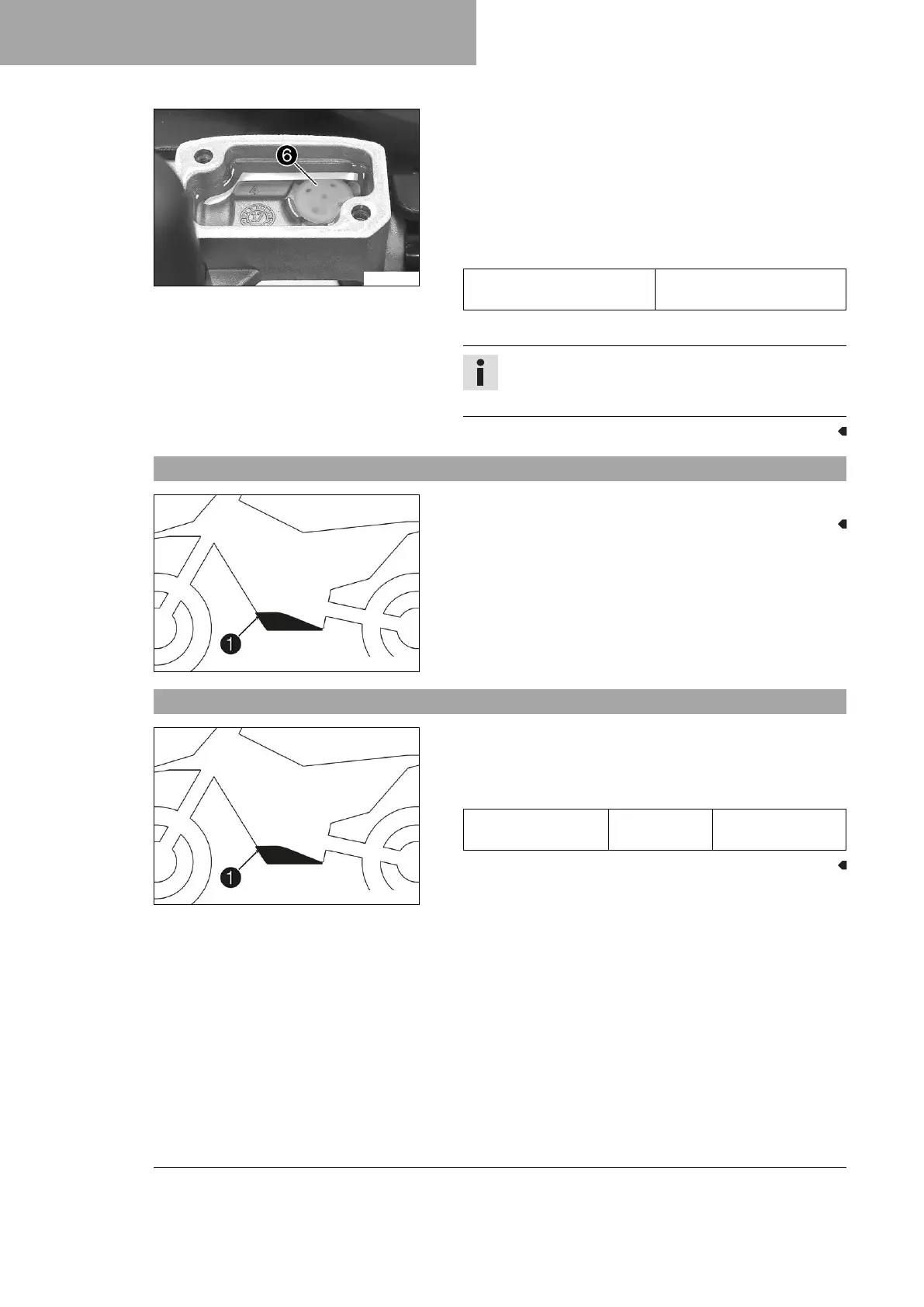

– Now press the fluid into the system until it emerges from the
hole
6
of the master cylinder without bubbles.
– Now and then, extract fluid from the master cylinder reservoir
to prevent overflow.
– Remove the bleeding syringe. Tighten the bleeder screw.
Mount protection cap.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container
rim
4 mm (0.16 in)
– Position cover with membrane. Mount and tighten screws.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
12.46 Removing the engine guard (All Six Days models)
H01638-10
–
Remove screws
1
and engine guard.
12.47 Installing the engine guard (All Six Days models)
H01638-10
– Attach the engine guard on the frame at the rear and swing up
at the front.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 300 XC-W TPI 2019 Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	2-stroke
Fuel System	TPI (Transfer Port Injection)
Front Suspension	WP XPlor 48
Rear Suspension	WP XPlor PDS
Front Brake	260 mm disc
Rear Brake	220 mm disc
Fuel Capacity	9 liters
Frame	Central-tube frame with double-cradle
