KTM 300 XC-W TPI 2019 User Manual

12 SERVICE WORK ON THE CHASSIS
68

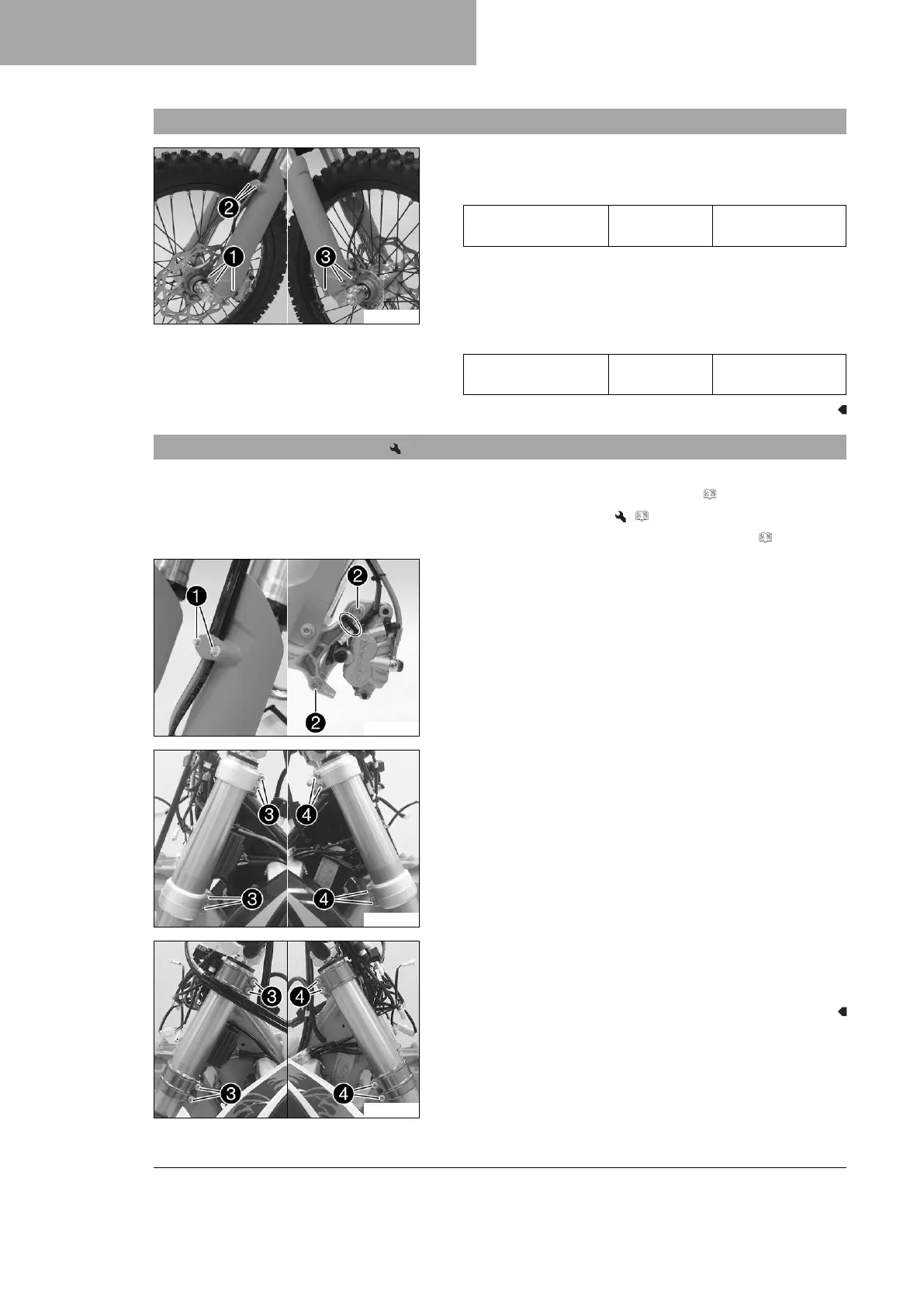

12.6 Installing the fork protector
V00332-11
– Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
12.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 66)
– Remove the front wheel. ( p. 111)
– Remove the headlight mask with the headlight. ( p. 123)
E00375-10
Main work
–
Remove screws
1
and take off the clamp.
– Remove the cable tie.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and brake line to hang loosely to the
side.
E00914-10
(All standard EXC/XC-W models)
–
Loosen screws
3
. Take out the left fork leg.
–
Loosen screws
4
. Take out the right fork leg.
E00919-10
(All Six Days models)
–
Loosen screws
3
. Take out the left fork leg.
–
Loosen screws
4
. Take out the right fork leg.

KTM 300 XC-W TPI 2019 Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	2-stroke
Fuel System	TPI (Transfer Port Injection)
Front Suspension	WP XPlor 48
Rear Suspension	WP XPlor PDS
Front Brake	260 mm disc
Rear Brake	220 mm disc
Fuel Capacity	9 liters
Frame	Central-tube frame with double-cradle
