ELECTRICAL SYSTEM 15
127

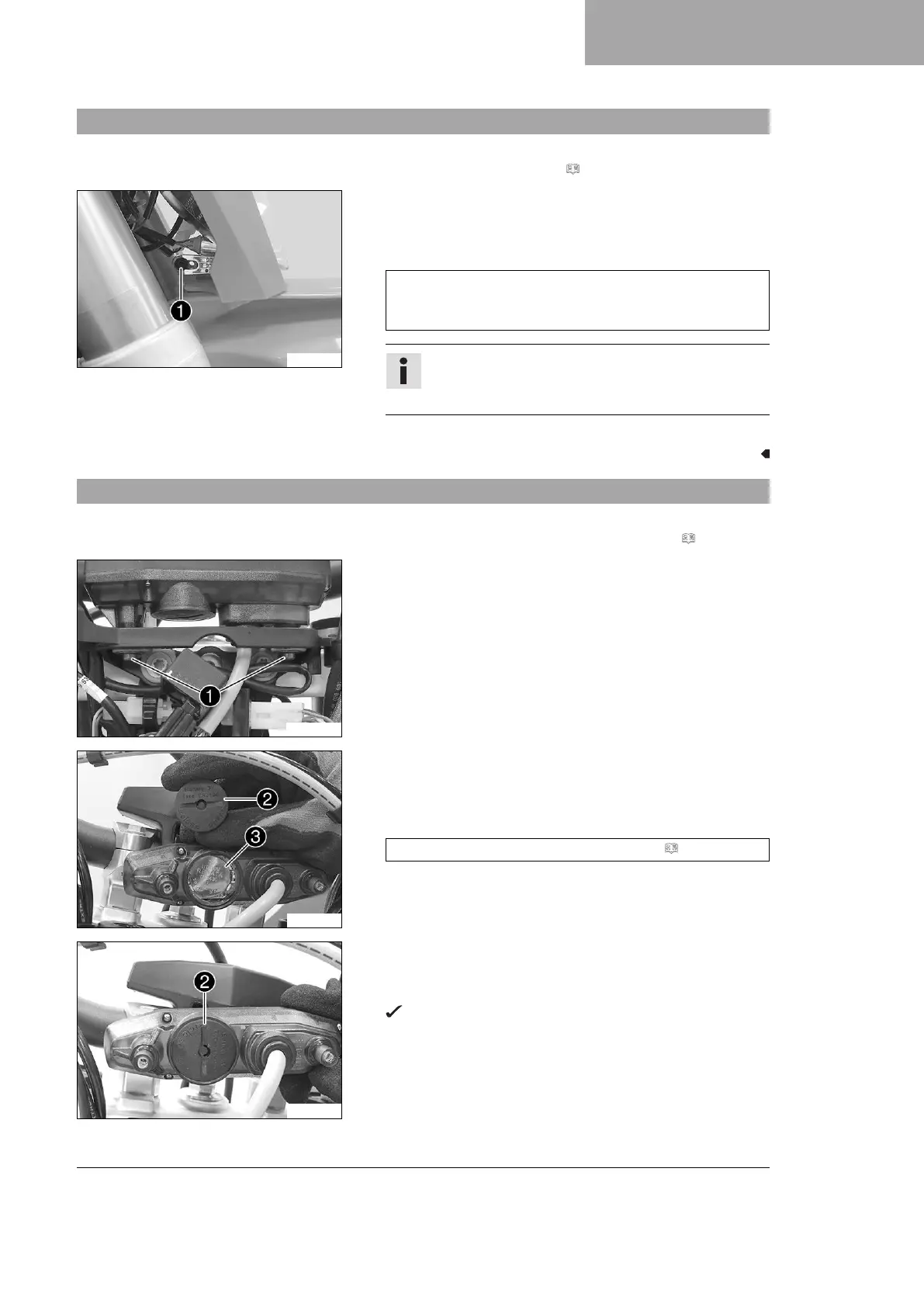

15.11 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 126)
V00369-10
Main work
–
Loosen screw
1
.
– Adjust the headlight range by pivoting the headlight.
Guideline
The boundary between light and dark must be exactly on the
lower marking for a motorcycle with rider (instructions on
how to apply the marking: Checking the headlight setting).
Info
If you have a payload, you may have to correct the
headlight range.
–
Tighten screw
1
.
15.12 Changing the combination instrument
Preparatory work
– Remove the headlight mask with the headlight. ( p. 123)
E00901-10
Main work
–
Remove screws
1
.
– Pull the combination instrument upward out of the holder.
V00371-10
–
Using a coin, turn protection cap
2
all the way counterclock-
wise and remove it.
–
Remove combination instrument
3
.
– Insert the new battery with the label facing outward.
Combination instrument battery (CR 2430) ( p. 157)
– Check the O-ring of the protection cap for correct seating.
V00372-10
–
Position protection cap
2
and turn all the way clockwise
using a coin.
– Press any button on the combination instrument.
The combination instrument is activated.
– Position the combination instrument in the holder.
– Mount and tighten the screws with washers.
