SERVICE WORK ON THE CHASSIS 35

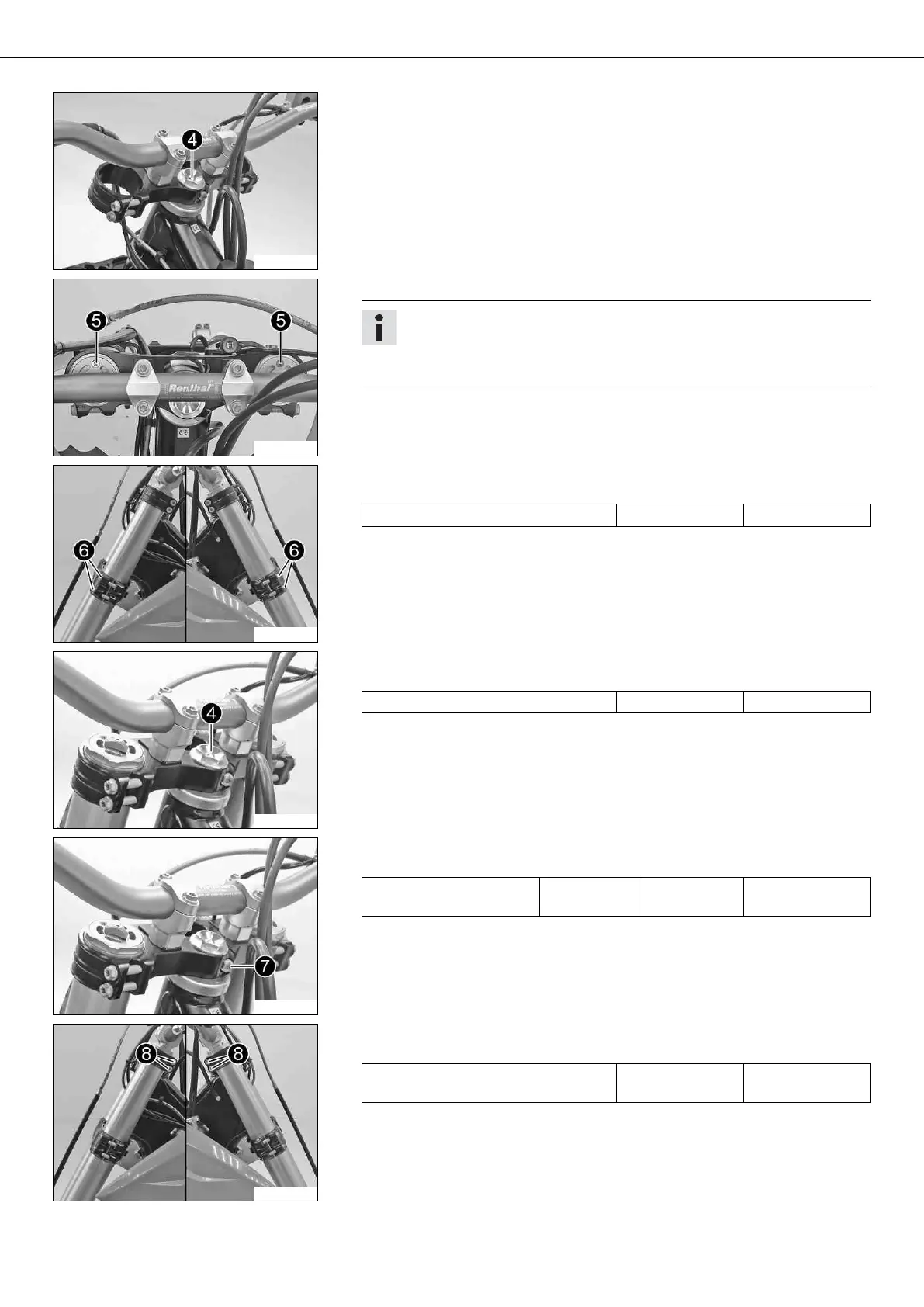

B00376-10
– Position the upper triple clamp with the steering.
– Mount screw but do not tighten yet.
B00377-10
– Position the fork legs.
Info
The upper milled groove in the fork leg must be flush with the top edge of
the upper triple clamp.
Position bleeder screws toward the front.
B00378-10
– Fully tighten screws .
Guideline
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
B00380-10
– Tighten screw .
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
B00380-11
– Mount and tighten screw .
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
B00378-11
– Fully tighten screws .
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
