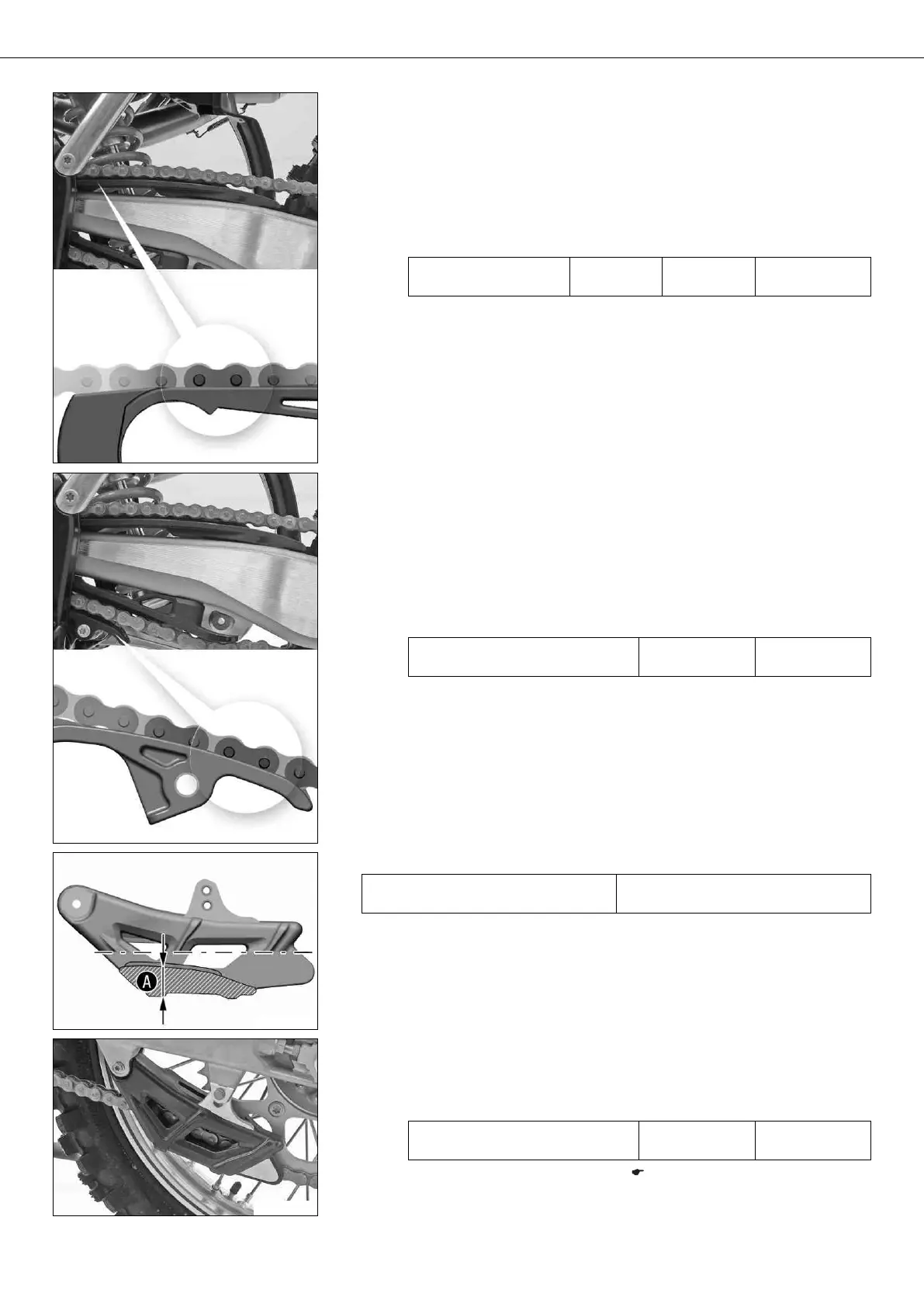

SERVICE WORK ON THE CHASSIS 47
B00346-01
– Check the chain sliding guard for wear.
» If the bottom edge of the chain bolt is in line with or below the chain sliding
guard:
–
Change the chain sliding guard. x
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the chain sliding guard.
Guideline
Screw, chain sliding
guard
M6 6 Nm
(4.4 lbf ft)
Loctite
®
243™
B00345-01
– Check the chain sliding piece for wear.
» If the bottom edge of the chain bolt is in line with or below the chain sliding
piece:
–
Change the chain sliding piece. x
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
400984-10
– Measure material thickness at the bottom of the chain guide.
Minimum distance at the lowest
point
12 mm (0.47 in)
» If distance is less than the specified measurement:
–
Change the chain guide. x
B00347-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Remove the motorcycle from the lift stand. ( p. 31)
