11 SERVICE WORK ON THE CHASSIS
76
K01034-10
–

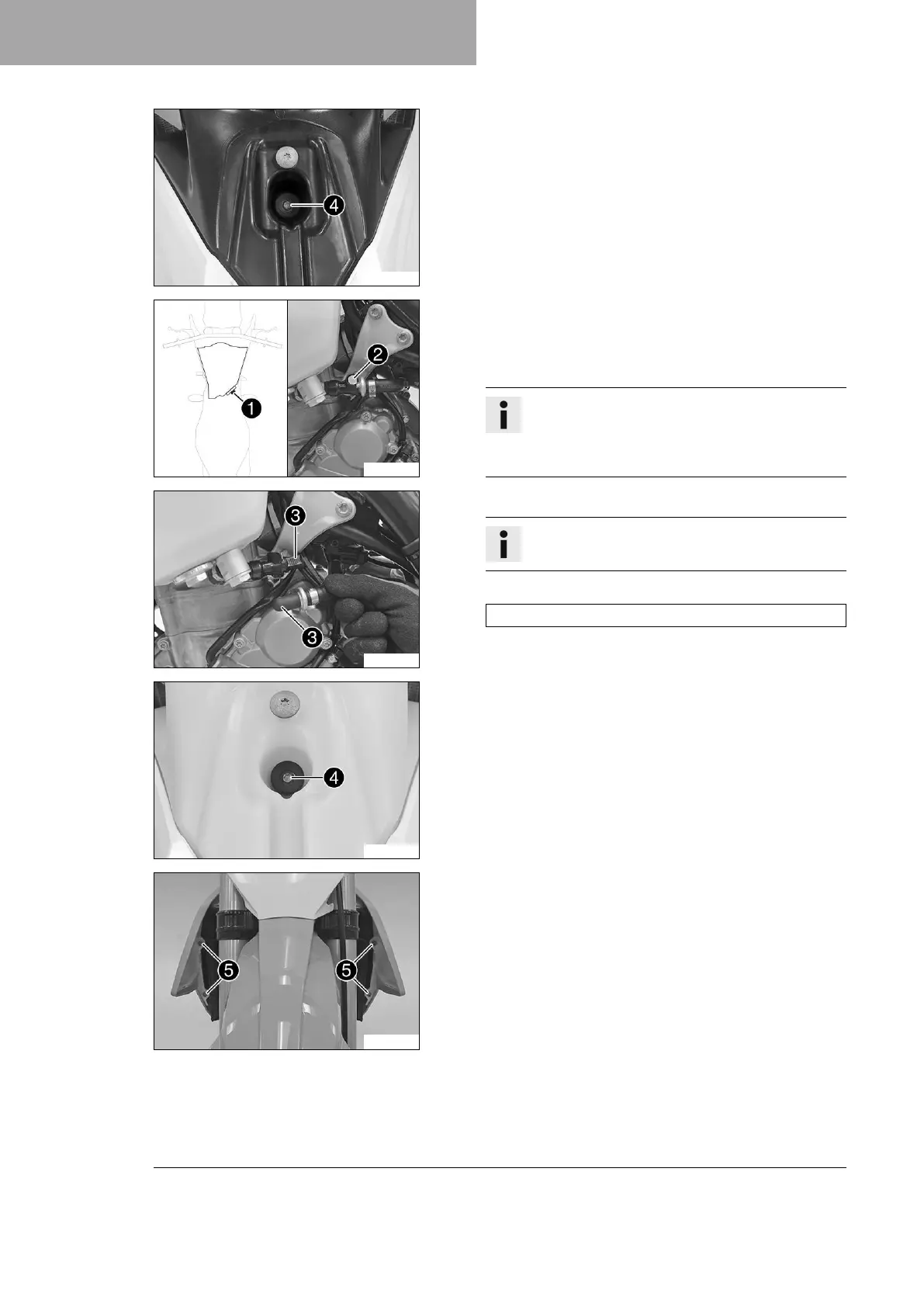

Remove screw
4
with the rubber bushing.
F01612-10
(All XC‑F models)
–
Unplug connector
1
of the fuel pump.
–
Clean plug-in connection
2
of the fuel line thoroughly
with compressed air.
Info
Under no circumstances should dirt enter into the
fuel line. Dirt in the fuel line clogs the injection
valve!
F01614-10
– Disconnect the quick release coupling.
Info
Remaining fuel may flow out of the fuel hose.
–
Mount wash cap set
3
.
Wash cap set (81212016100)
– Pull the fuel tank breather hose off the fuel tank lid.
F01565-10
–
Remove screw
4
with the rubber bushing.
F01541-10
–
Remove screws
5
with the collar bushings.
