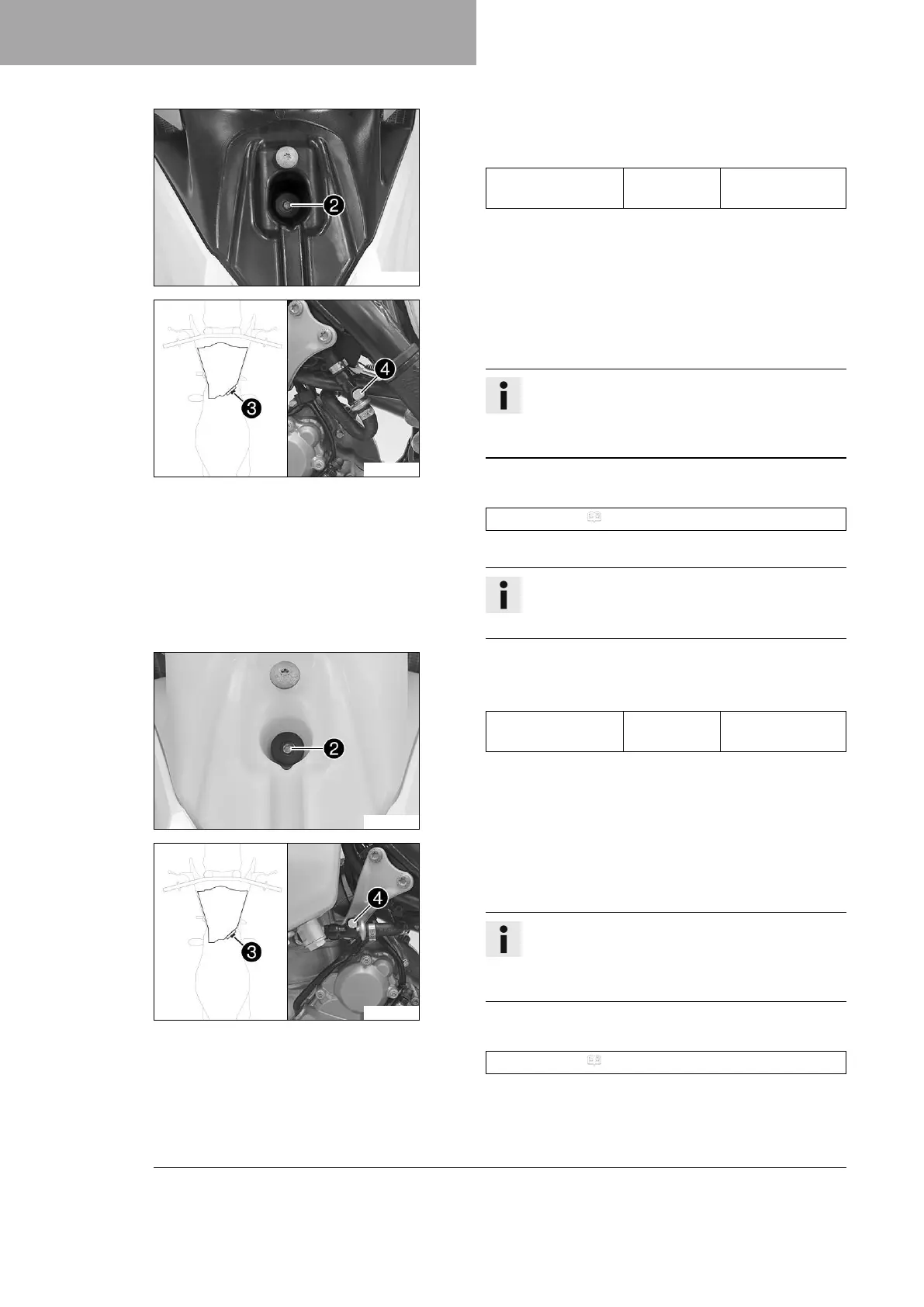

11 SERVICE WORK ON THE CHASSIS
78
K01034-11
(All SX‑F models)
–
Mount and tighten screw
2
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
F01611-11
–
Plug in connector
3
for the fuel pump.
– Remove the wash cap set. Clean the quick release coupling
thoroughly with compressed air.
Info
Under no circumstances should dirt enter into the
fuel line. Dirt in the fuel line clogs the injection
valve!
– Spray silicone spray onto a lint-free cleaning cloth and
lightly lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 150)
–
Join quick release coupling
4
.
Info
Route the cable and fuel line at a safe distance
from the exhaust system.
F01565-11
(All XC‑F models)
–
Mount and tighten screw
2
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
F01612-11
–
Plug in connector
3
for the fuel pump.
– Remove the wash cap set. Clean the quick release coupling
thoroughly with compressed air.
Info
Under no circumstances should dirt enter into the
fuel line. Dirt in the fuel line clogs the injection
valve!
– Spray silicone spray onto a lint-free cleaning cloth and
lightly lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 150)
–
Join quick release coupling
4
.
