SERVICE WORK ON THE CHASSIS 11
83
S01250-01

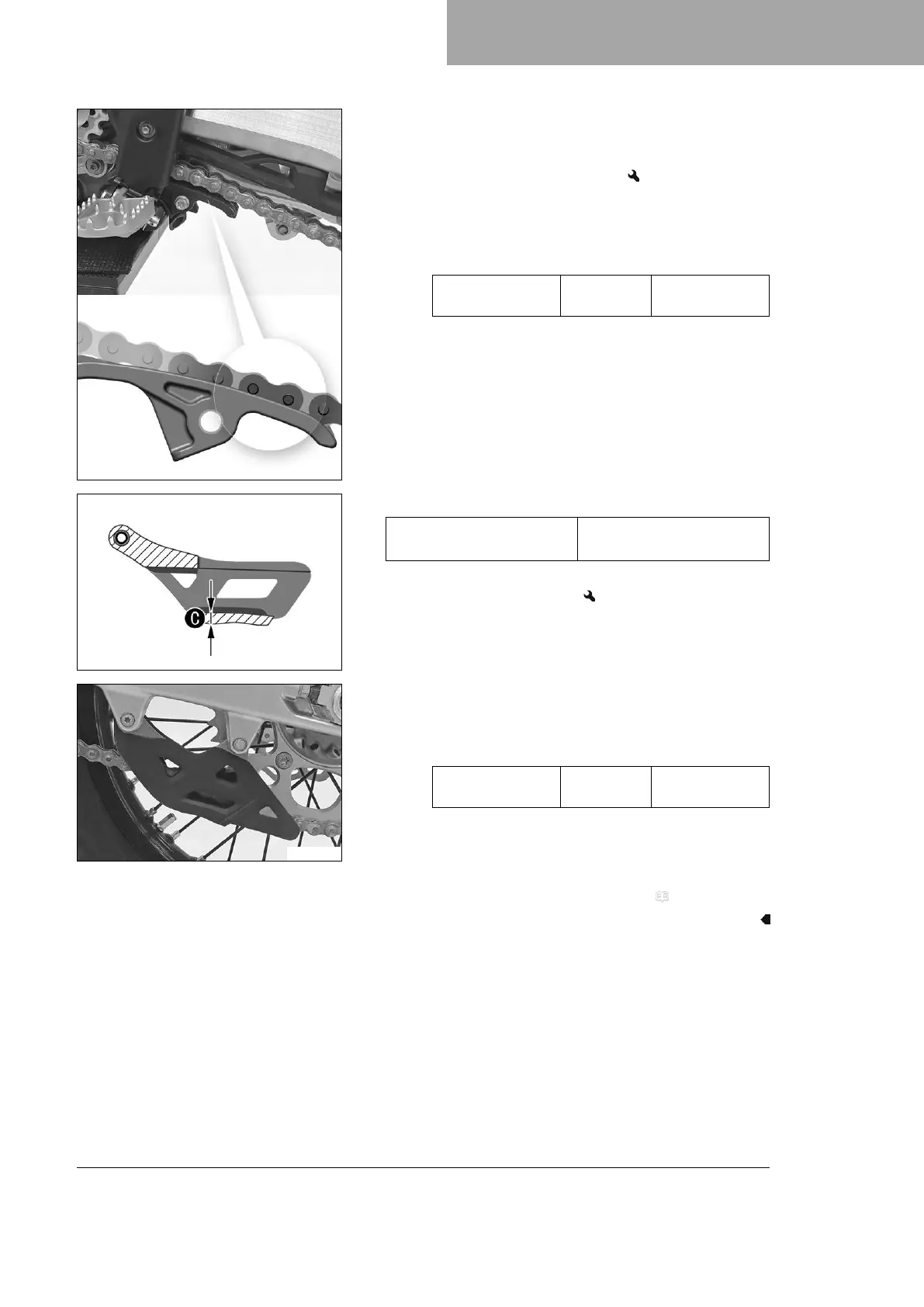

– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below
the chain sliding piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the screw on the chain sliding piece.
Guideline
Screw, chain slid-
ing piece
M8 15 Nm
(11.1 lbf ft)
402421-10
–
Check the chain guide with a slide gauge for dimension
C
.
Minimum thickness
C
of
the chain guide
6 mm (0.24 in)
» If the measured value is less than the specification:
– Change the chain guide.
F01553-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 51)
