12 SERVICE WORK ON THE CHASSIS
128
F00861-10
Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–

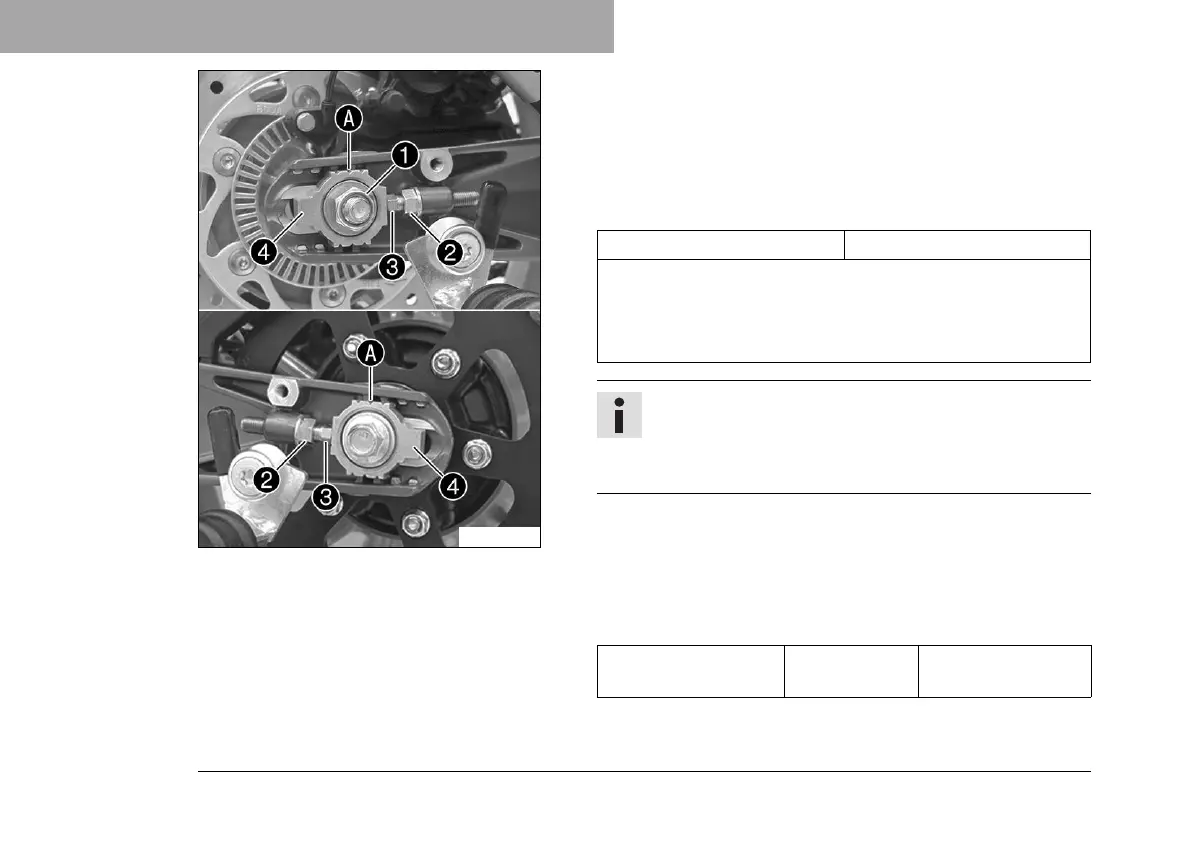

Adjust the chain tension by turning adjusting screws
3
left
and right.
Guideline
Chain tension 5 … 7 mm (0.2 … 0.28 in)
Turn the adjusting screws
3
on the left and right so that
the markings on the left and right chain adjusters
4
are in
the same position relative to the reference marks
A
. The
rear wheel is then correctly aligned.
Info
The upper part of the chain must be taut.
Chain wear is not always even, so you should check the
setting at different chain positions.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spin-
dle
M14x1.5 98 Nm (72.3 lbf ft)

KTM 390 DUKE 2017 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Torque	37 Nm @ 7, 000 rpm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Frame	Steel trellis frame, powder coated
Rear Suspension	WP monoshock
Front Tire	110/70 R17
Rear Tire	150/60 R17
Seat Height	830 mm
Ground Clearance	185 mm
Dry Weight	149 kg
Engine Type	Single cylinder, 4-stroke
Power	32 kW (44 hp) @ 9, 000 rpm
Clutch	Wet multi-disc clutch
Front Suspension	WP upside-down Ø 43 mm
Front Brake	320 mm Disc, Four-Piston Radial Fixed Caliper
Rear Brake	230 mm Disc, Single-Piston Floating Caliper
ABS	Bosch 9MB two-channel ABS
Fuel Tank Capacity	13.4 liters
