MAINTEN
ANCE
ON
CHASSIS
AND
ENGINE
121
301816-10
–

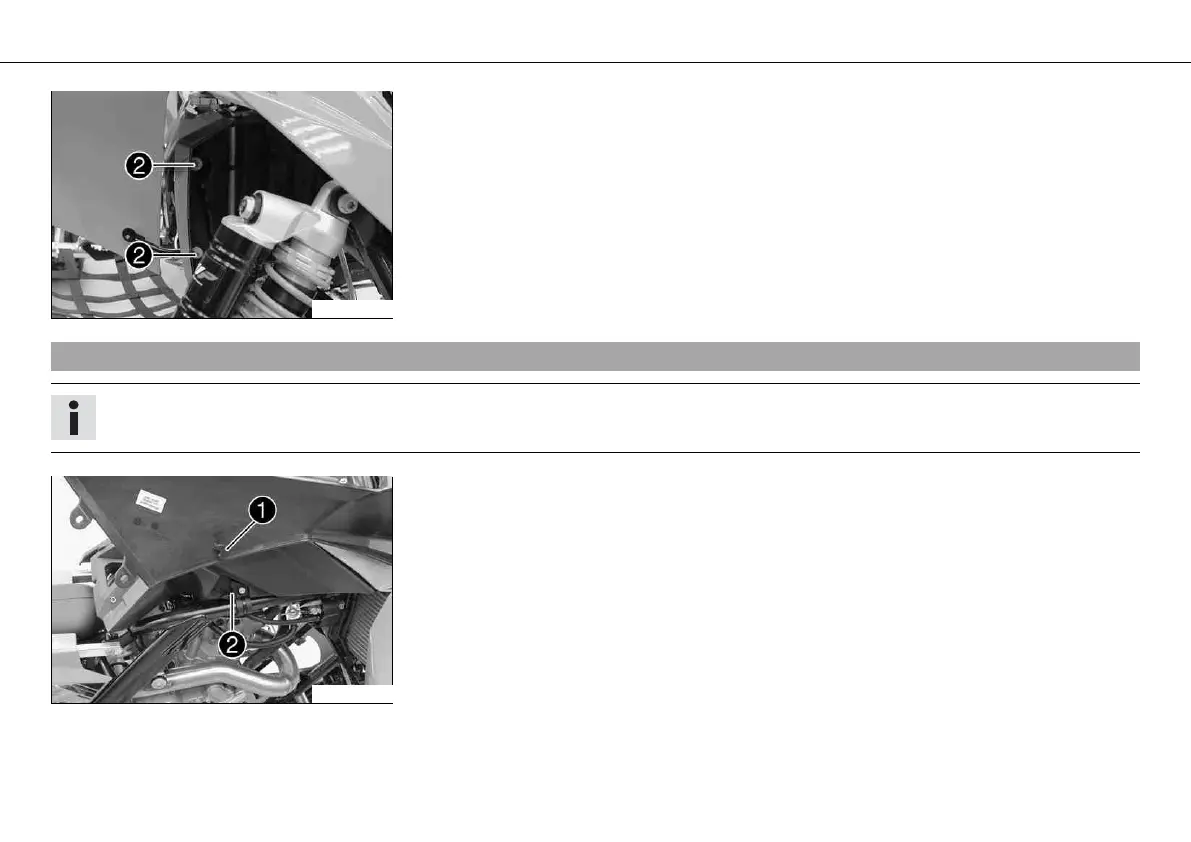

Remove
the
screws
on
the
radiator.
–
Detach
the
radiator
spoiler
and
remove
it.
9.65
Installing
the
radiator
spoiler
Info
The
operations
are
the
same
on
the
left
and
right.
301819-10
–
Hook
catch
of
the
radiator
spoiler
into
holder
of
the
fuel
tank
and
position
it
on
the
radiator.
122
