KTM 85 SX 2020 User Manual

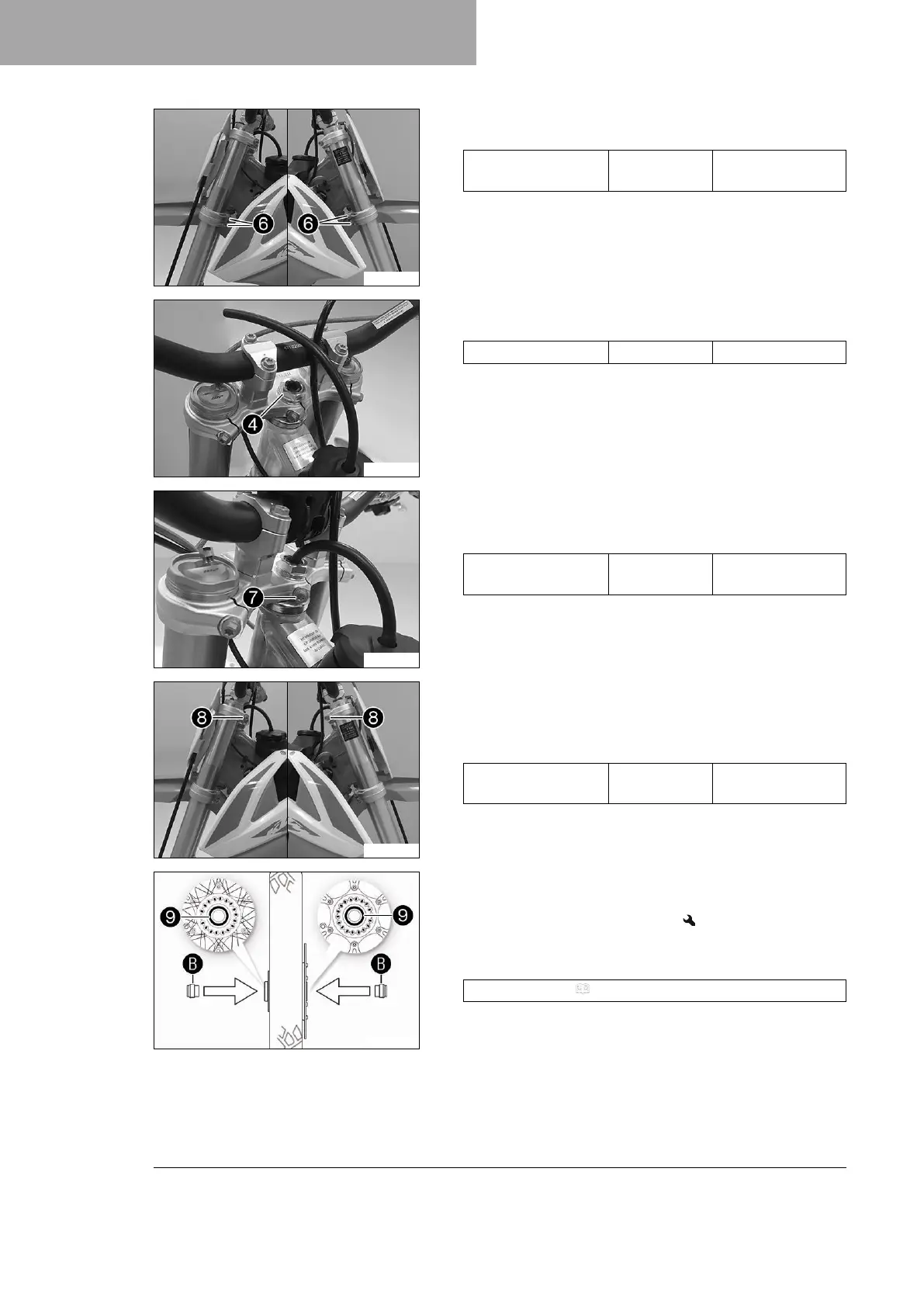

11 SERVICE WORK ON THE CHASSIS
50
S03454-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
S03419-10
–
Tighten nut
4
.
Guideline
Nut, steering stem M20x1.5 10 Nm (7.4 lbf ft)
S03416-11
– Position the fuel tank breather in the steering stem.
–
Tighten screw
7
.
Guideline
Steering stem clamp
screw
M8 20 Nm (14.8 lbf ft)
S03420-10
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
–
Tighten screws
8
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
S03455-10
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change front wheel bearing.
–
Clean and grease shaft seal rings
9
and contact surfaces
B
of the spacers.
Long-life grease ( p. 123)
– Insert the spacers.

KTM 85 SX 2020 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Brake	Disc brake
Rear Brake	Disc brake
Front Brake Disc Diameter	240 mm
Chain	1/2 x 5/16"
Steering Head Angle	66°
Weight (without fuel)	68 kg
Frame Material	Chrome-molybdenum steel
Bore x Stroke	47 mm x 48.95 mm
Frame Design	Central tube frame, chrome molybdenum steel
Front Suspension	WP XACT USD, 43 mm
Rear Suspension	WP XACT monoshock
Tank Capacity	5.2 liters
Fuel System	Keihin PWK 28
Wheelbase	1, 290 ± 10 mm
