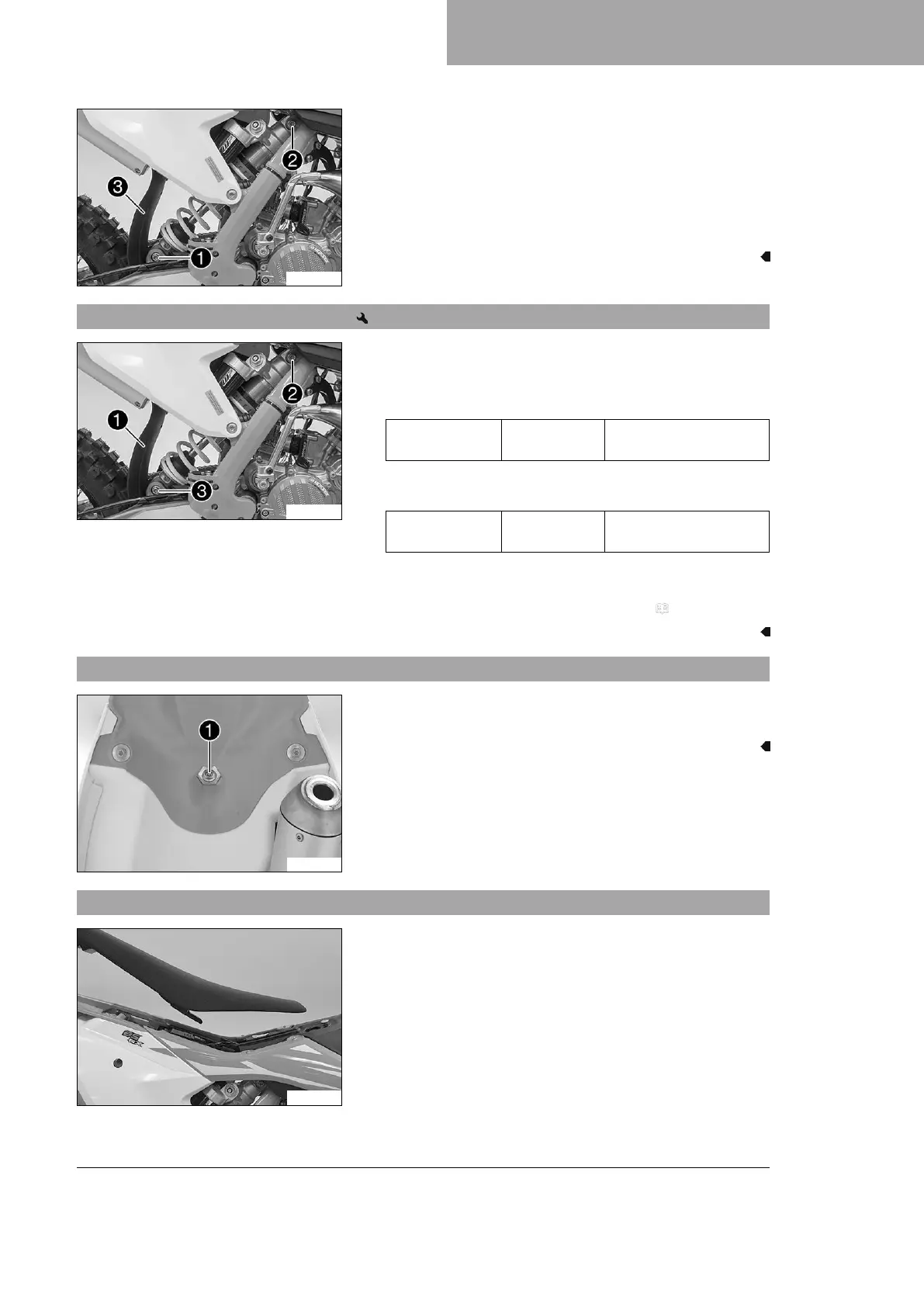

SERVICE WORK ON THE CHASSIS 11
55
A00044-10
Main work
– Detach the brake line from the brake line guide.
–
Remove screw
1
and lower the rear wheel with the link fork
as far as possible without blocking the rear wheel. Secure the
rear wheel in this position.
–
Remove screw
2
, push splash protector
3
to the side, and
remove the shock absorber.
11.19 Installing the shock absorber
A00044-11
Main work
–
Push splash protector
1
to the side and position the shock
absorber. Mount and tighten screw
2
.
Guideline
Screw, top
shock absorber
M12 60 Nm (44.3 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw
3
.
Guideline
Screw, bottom
shock absorber
M12 60 Nm (44.3 lbf ft)
Loctite
®
2701™
– Attach brake line.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 44)
11.20 Removing the seat
V00836-10
–
Remove screw
1
.
– Raise the rear of the seat, pull the seat back, and lift it off.
11.21 Mounting the seat
V00837-01
– Mount the front of the seat on the collar bushing of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure that the seat is correctly locked in.

KTM 85 SX 2020 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Brake	Disc brake
Rear Brake	Disc brake
Front Brake Disc Diameter	240 mm
Chain	1/2 x 5/16"
Steering Head Angle	66°
Weight (without fuel)	68 kg
Frame Material	Chrome-molybdenum steel
Bore x Stroke	47 mm x 48.95 mm
Frame Design	Central tube frame, chrome molybdenum steel
Front Suspension	WP XACT USD, 43 mm
Rear Suspension	WP XACT monoshock
Tank Capacity	5.2 liters
Fuel System	Keihin PWK 28
Wheelbase	1, 290 ± 10 mm
