KTM 85 SX 2020 User Manual

11 SERVICE WORK ON THE CHASSIS
68
V00847-01

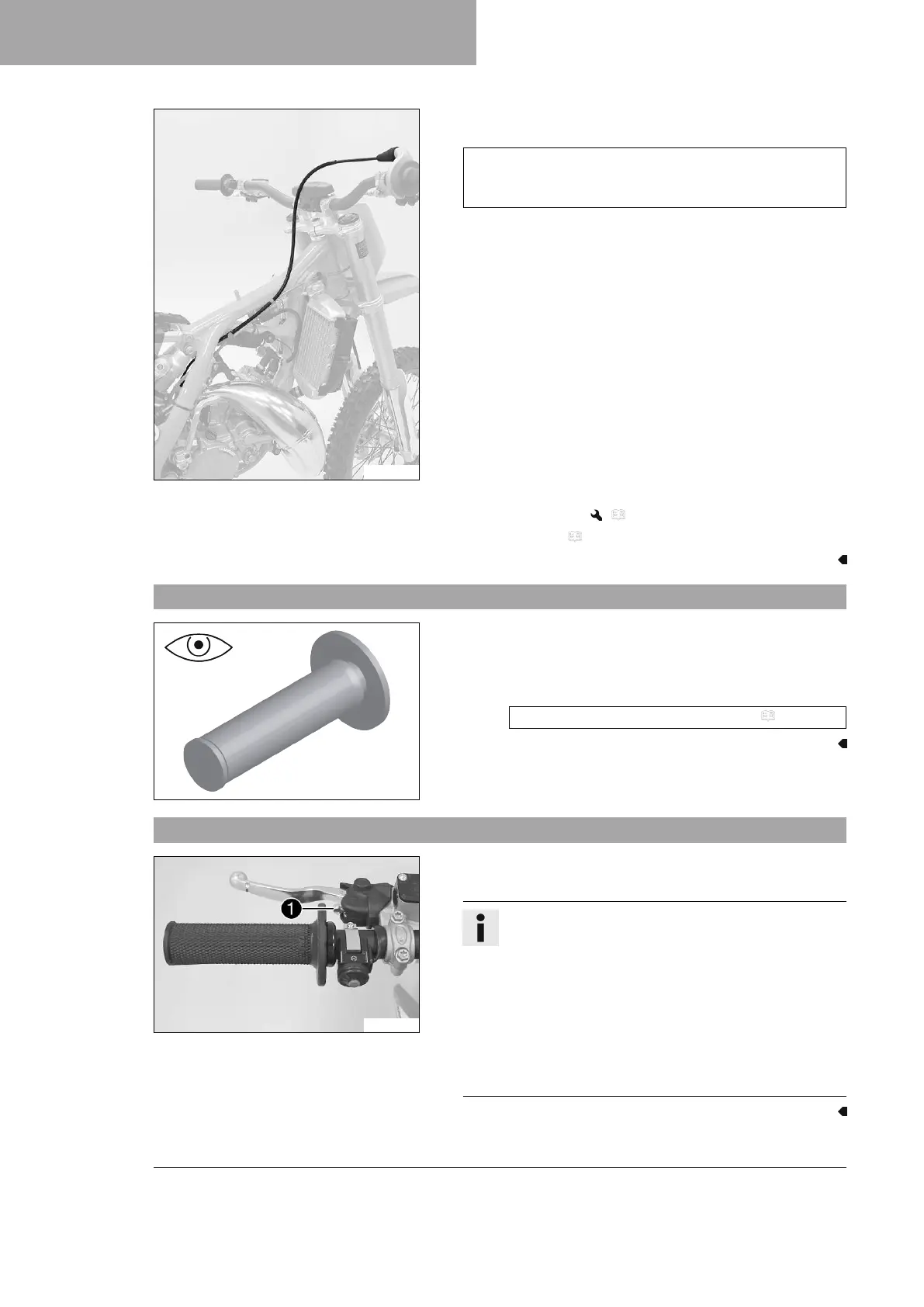

Main work
– Check the throttle cable routing.
The throttle cable must be routed along the back of the
handlebar, to the right of the frame, above the fuel tank
bracket, and to the carburetor.
» If the throttle cable routing is not as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 61)
– Mount the seat. ( p. 55)
11.40 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage and wear
and to ensure they are firmly seated.
» If a rubber grip is damaged, worn or loose:
– Change and secure the rubber grip.
Rubber grip adhesive (00062030051) ( p. 124)
11.41 Adjusting the basic position of the clutch lever
V00811-12
– Adjust the basic position of the clutch lever to the size of the
rider's hand using adjusting screw
1
.
Info
Turn the adjusting screw clockwise to increase the
distance between the clutch lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease
the distance between the clutch lever and the handle-
bar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not
apply any force.
Do not make any adjustments while riding.

KTM 85 SX 2020 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Brake	Disc brake
Rear Brake	Disc brake
Front Brake Disc Diameter	240 mm
Chain	1/2 x 5/16"
Steering Head Angle	66°
Weight (without fuel)	68 kg
Frame Material	Chrome-molybdenum steel
Bore x Stroke	47 mm x 48.95 mm
Frame Design	Central tube frame, chrome molybdenum steel
Front Suspension	WP XACT USD, 43 mm
Rear Suspension	WP XACT monoshock
Tank Capacity	5.2 liters
Fuel System	Keihin PWK 28
Wheelbase	1, 290 ± 10 mm
