TUNING THE CHASSIS 10
41

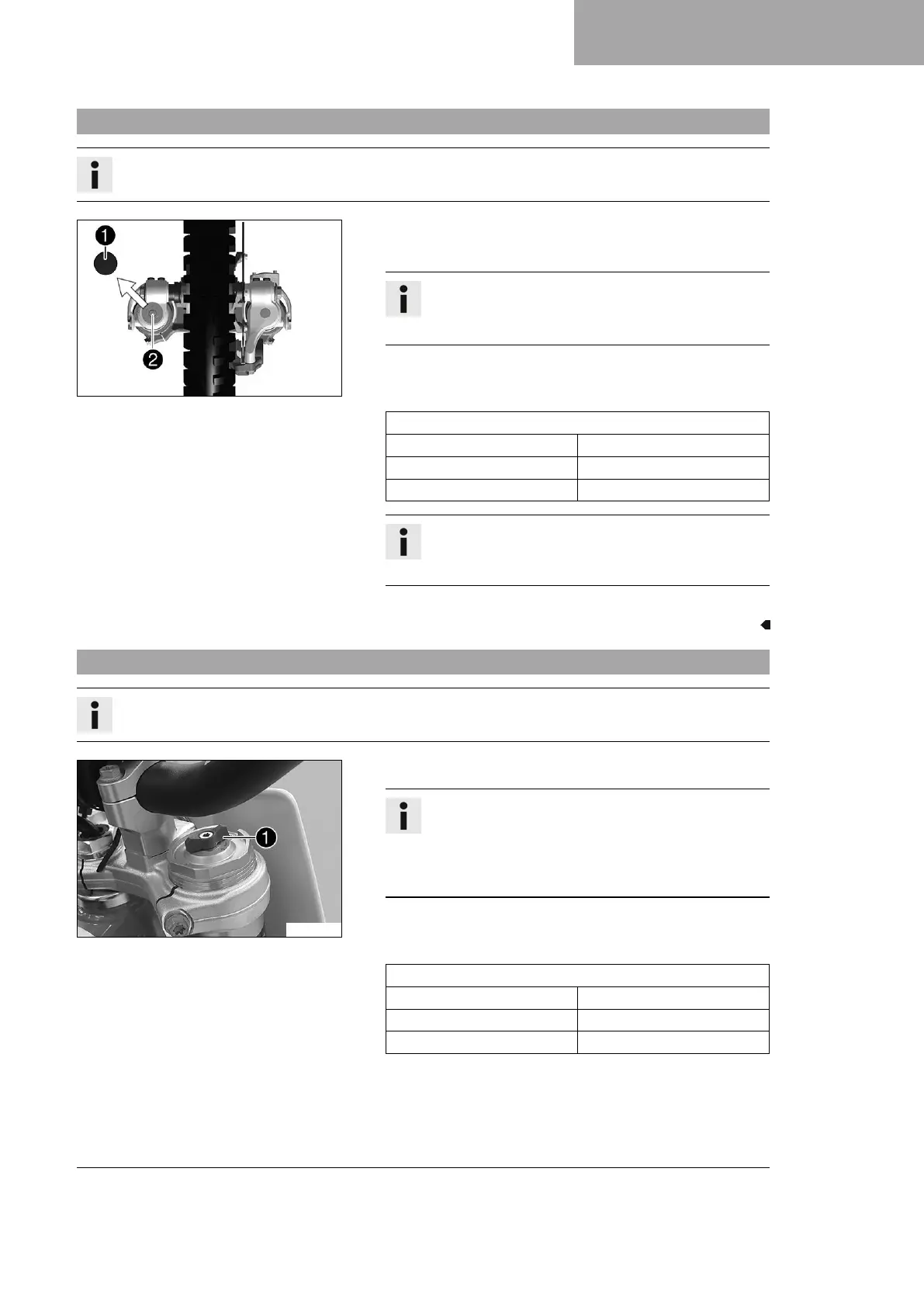

10.14 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
V00823-10
–
Take off protection cap
1
.
–
Turn adjusting screw
2
clockwise all the way.
Info
The adjusting screw
2
is located at the lower end of
the right fork leg.
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Compression damping
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during compression.
–
Mount protection cap
1
.
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
S03415-10
–
Turn red adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of the
right fork leg.
The rebound damping is located in right fork leg REB
(red adjusting screw).
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Rebound damping
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
