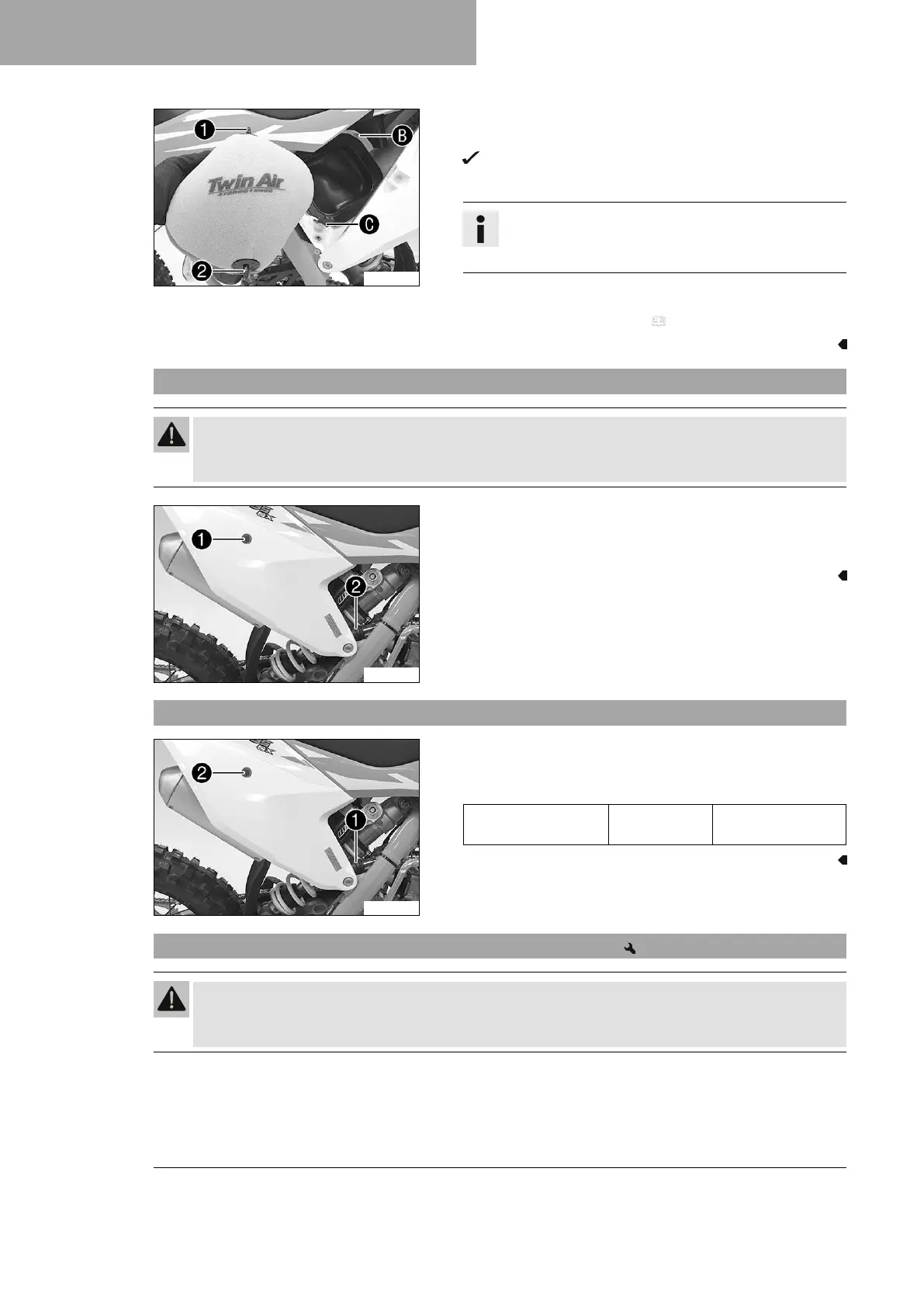

11 SERVICE WORK ON THE CHASSIS
58
V00840-10
Insert the air filter and position top retaining pin
1
in bush-
ing
B
.
The air filter is correctly positioned.
Secure the bottom retaining pin
2
with holding tab
C
.
Info
If the air filter is not mounted correctly, dust and dirt
may enter the engine and result in damage.
Finishing work
Install the air filter box cover. ( p. 56)
11.27 Removing the main silencer
Warning
Danger of burnsThe exhaust system gets very hot when the vehicle is driven.
Allow the exhaust system to cool down before performing any work on the vehicle.
V00841-10
Remove screw
1
.
Pull off the main silencer from the manifold at exhaust
sleeve
2
.
11.28 Installing the main silencer
V00841-11
Mount the main silencer with exhaust sleeve
1
.
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.29 Changing the glass fiber yarn filling of the main silencer
Warning
Danger of burnsThe exhaust system gets very hot when the vehicle is driven.
Allow the exhaust system to cool down before performing any work on the vehicle.
