SERVICE WORK ON THE CHASSIS 11
55

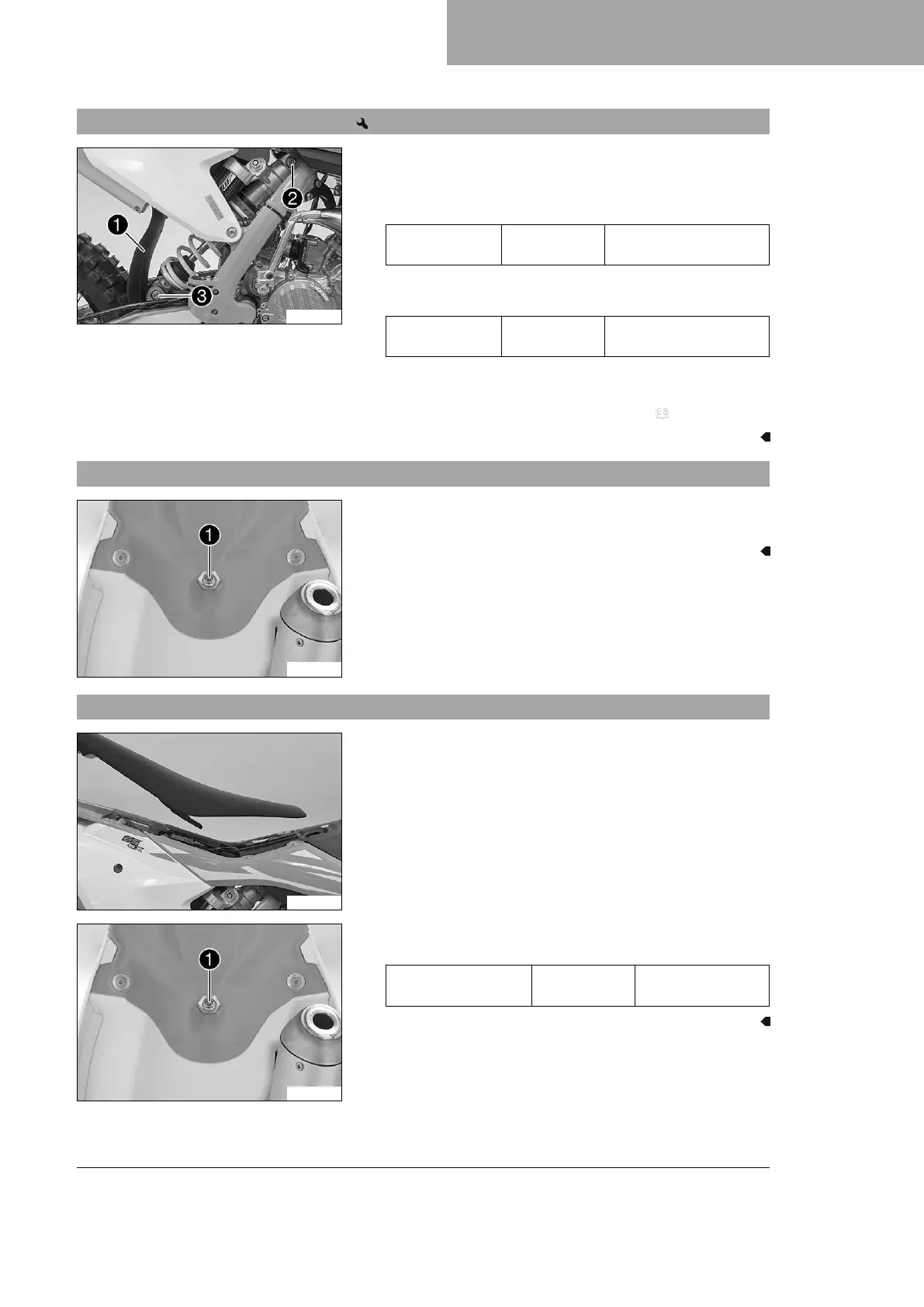

11.19 Installing the shock absorber
A00044-11
Main work
–
Push splash protector
1
to the side and position the shock
absorber. Mount and tighten screw
2
.
Guideline
Screw, top
shock absorber
M12 60 Nm (44.3 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw
3
.
Guideline
Screw, bottom
shock absorber
M12 60 Nm (44.3 lbf ft)
Loctite
®
2701™
– Attach brake line.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 44)
11.20 Removing the seat
V00836-10
–
Remove screw
1
.
– Raise the rear of the seat, pull the seat back, and lift it off.
11.21 Mounting the seat
V00837-01
– Mount the front of the seat on the collar bushing of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure that the seat is correctly locked in.
V00836-10
–
Mount and tighten screw
1
of the seat fixing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
