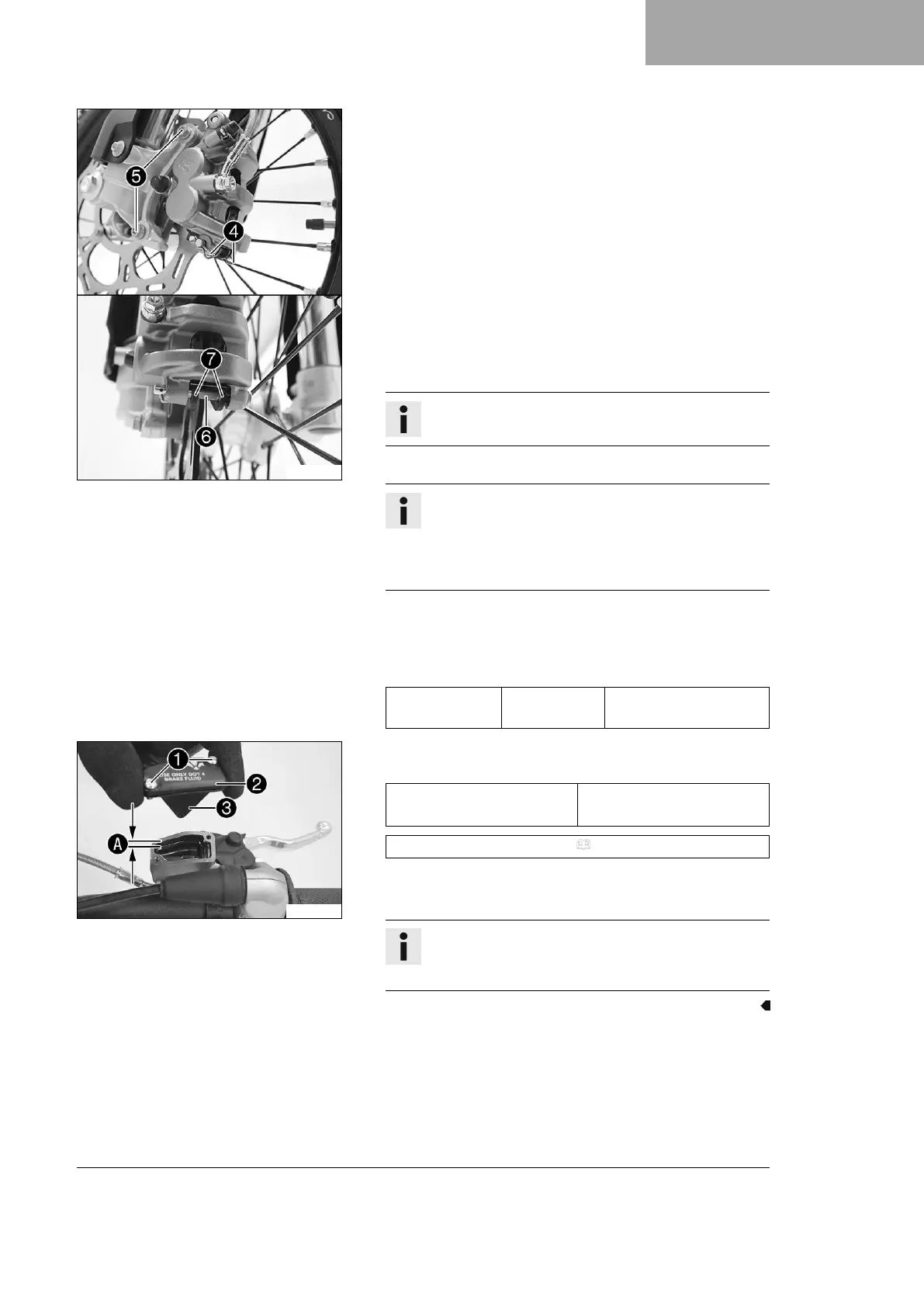

BRAKE SYSTEM 12
77
S04286-10
–
Remove cotter pin
4
.
–
Remove screws
5
.
– Press back the brake linings by slightly tilting the brake caliper
laterally on the brake disc. Carefully pull the brake caliper
backward from the brake disc.
– Press the brake piston back into the basic position and ensure
that brake fluid does not flow out of the brake fluid reservoir,
extracting some if necessary.
–
Remove pin
6
.
–
Remove brake linings
7
and the retainer spring.
– Clean brake caliper.
– Position the retainer spring.
– Position the new brake linings.
Info
Always change the brake linings in pairs.
–
Mount pin
6
.
Info
To make it easier to mount the pin, push the brake lin-
ings against the retainer spring.
Make sure the brake linings and retainer spring are
seated correctly.
–
Mount cotter pins
4
.
– Position the brake caliper.
–
Mount and tighten screws
5
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
S04284-10
–
Correct the brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 122)
–
Position cover
2
with membrane
3
.
–
Mount and tighten screws
1
.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
