COMBINATION INSTRUMENT 7
27

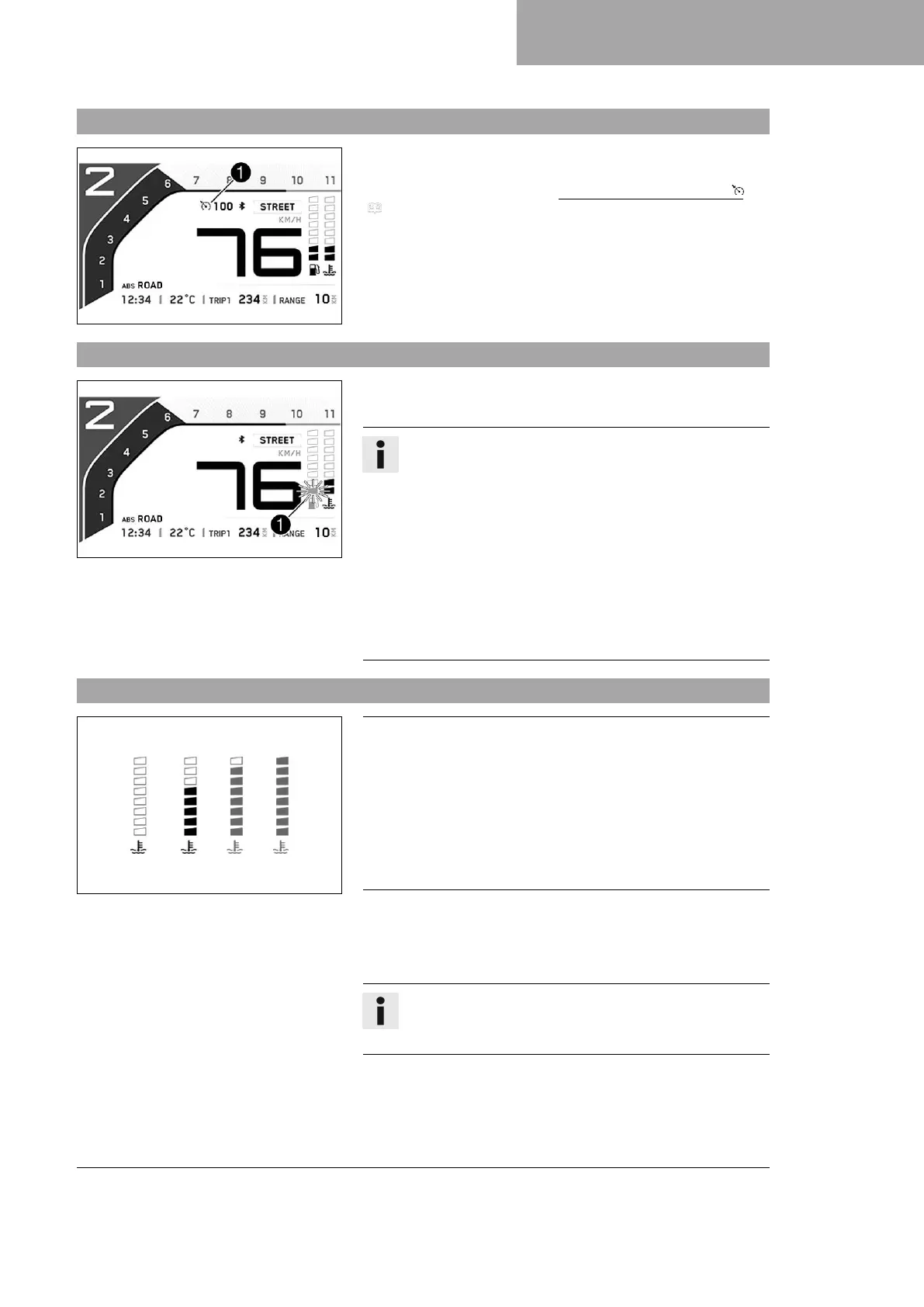

7.9 Cruise control indicator (optional)
F02755-10
When cruise control (optional) is activated, the operating mode
1
is shown on the combination instrument display.
Cruise control is operated using the cruise control tip switch
( p. 15).
7.10 Fuel level display
F02749-10
The fuel level indicator
1
consists of bars. The more bars are lit,
the more fuel is in the fuel tank.
Info
If the fuel level is getting low, the last bar flashes orange
and the LOW FUEL warning also appears.
The fuel level is displayed with a slight delay to prevent the
indicator from constantly moving while riding.
The fuel level display is not updated while the side stand is
folded out or the emergency off switch is switched off.
Once the side stand is folded up and the emergency OFF
switch is switched on, the fuel level display is next updated
after 2 minutes.
The fuel level display flashes if the combination instrument
does not receive a signal from the fuel level sensor.
7.11 Coolant temperature indicator
H02616-01
Note
Engine failure Overheating damages the engine.
– If the coolant temperature warning is displayed, stop imme-
diately and take care not to endanger yourself or other traffic
participants in the process.
– Allow the engine and cooling system to cool down.
– Check and, if necessary, correct the coolant level on the cool-
ing system while it is in a cooled state.
The temperature indicator consists of eight bars. The more bars
that light up, the hotter the coolant.
Emergency mode operation is automatically activated at a coolant
temperature of 120 °C.
Info
When all the bars light up, the ENGINE TEMP HIGH warning
also appears.
Possible states
• The engine is cold – Up to three bars light up.
• Engine warm – Four to five bars light up.
