Section 1: Assembly & Set-up
Table of Contents
AP-SC4060 & AP-SC4072 Skid Steer Rotary Cutters 326-765MK12/14/18
9
SC40 Motor And Hose Assembly
Your skid steer Rotary Cutter is factory supplied with one
of two motors mounted to the deck. Make sure you check
gpm rating on the hydraulic motor decal to verify it
matches your skid steer’s gpm rating. Skip assembly
instructions below if the motor gpm rating matches your
skid steer.
See “Hydraulic Motor and Hose Bundles” on page 23
to properly select a motor that matches your skid steer.
Contact your Kubota dealer to order the motor.

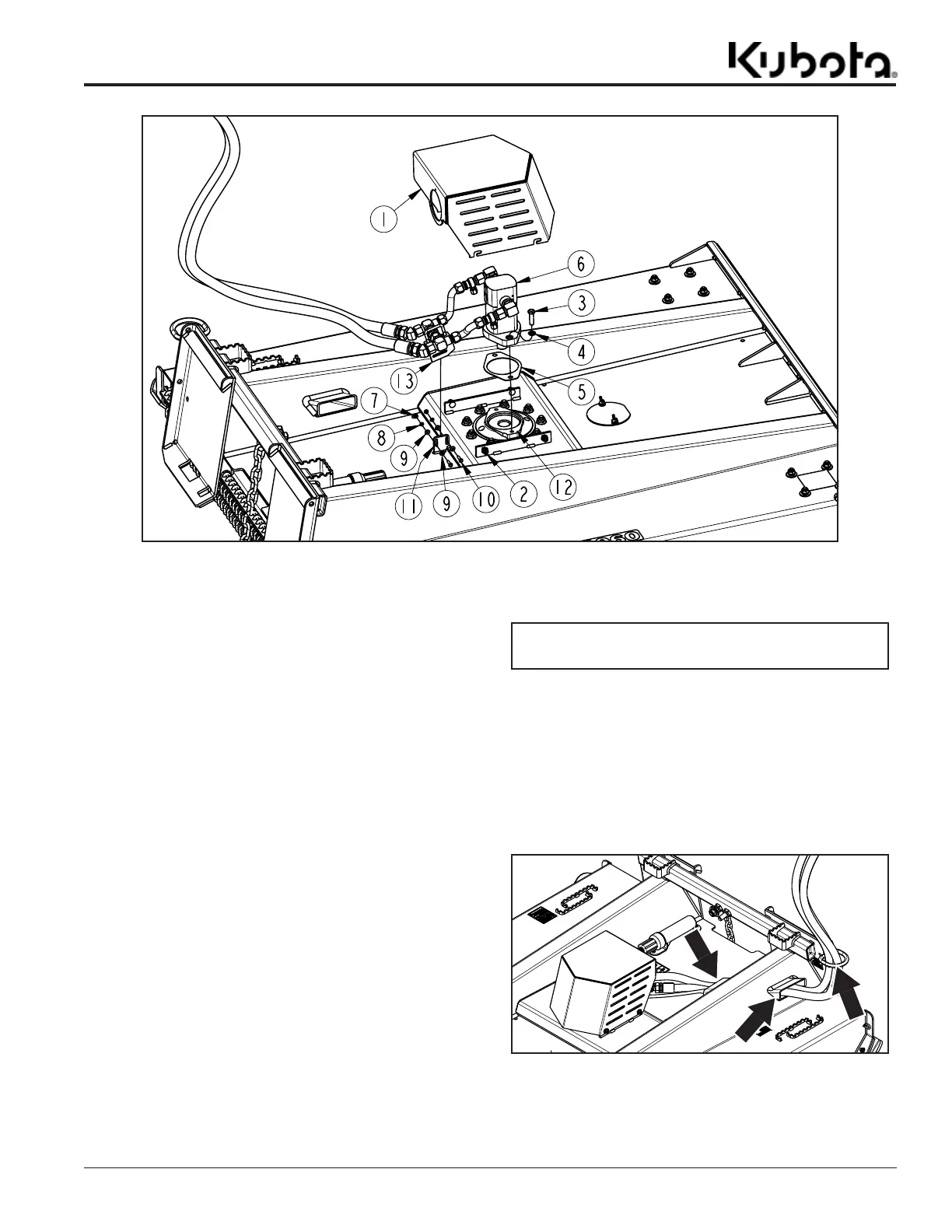

Refer to Figure 1-2:
1. Loosen four 3/8"-16 hex nuts (#2). Removing the hex
nuts is not necessary.
2. Remove the motor shroud (#1) by pushing it toward
the front of the unit then lifting it upward.
3. Remove two 1/2"-13X1 3/4" bolts (#3) and
lock washers (#4).
4. Remove 1/4"-20X1" bolts (#10), hex nuts (#7) &
washers (#8 & 9) from hose clamp support (#11).
5. Remove existing motor and hose assembly (#6).
Clean old gasket (#5) from gearbox flange (#12).
6. Place new gasket (#5) onto gearbox flange (#12).
7. Gently lower new motor and hose assembly (#6) onto
gasket (#5) with hoses extending toward the hitch
plate
8. Secure new hydraulic motor assembly with two
1/2"-13X1 3/4" bolts (#3) and lock washers (#4).
Tighten to correct torque.
9. Re-attach hose clamp (#13) to hose clamp support
(#11) with 1/4"-20X1" bolts (#10), hex nuts (#7) &
washers (#8 & 9). Tighten to correct torque.
10. Place the motor shroud back in its designated place
and pull back to lock it in place. Tighten hex nuts (#2)
to correct torque.
SC4060 & SC4072 Hose Routing
Figure 1-3
IMPORTANT: Route hydraulic hoses through
designated areas as shown in Figure 1-3.
39980
SC4060 & SC4072 Motor and Hose Assembly
Figure 1-2
39983
