Section 1: Assembly & Set-up
Table of Contents
AP-SC4060 & AP-SC4072 Skid Steer Rotary Cutters 326-765MK 12/14/18
12
Case Drain Assembly

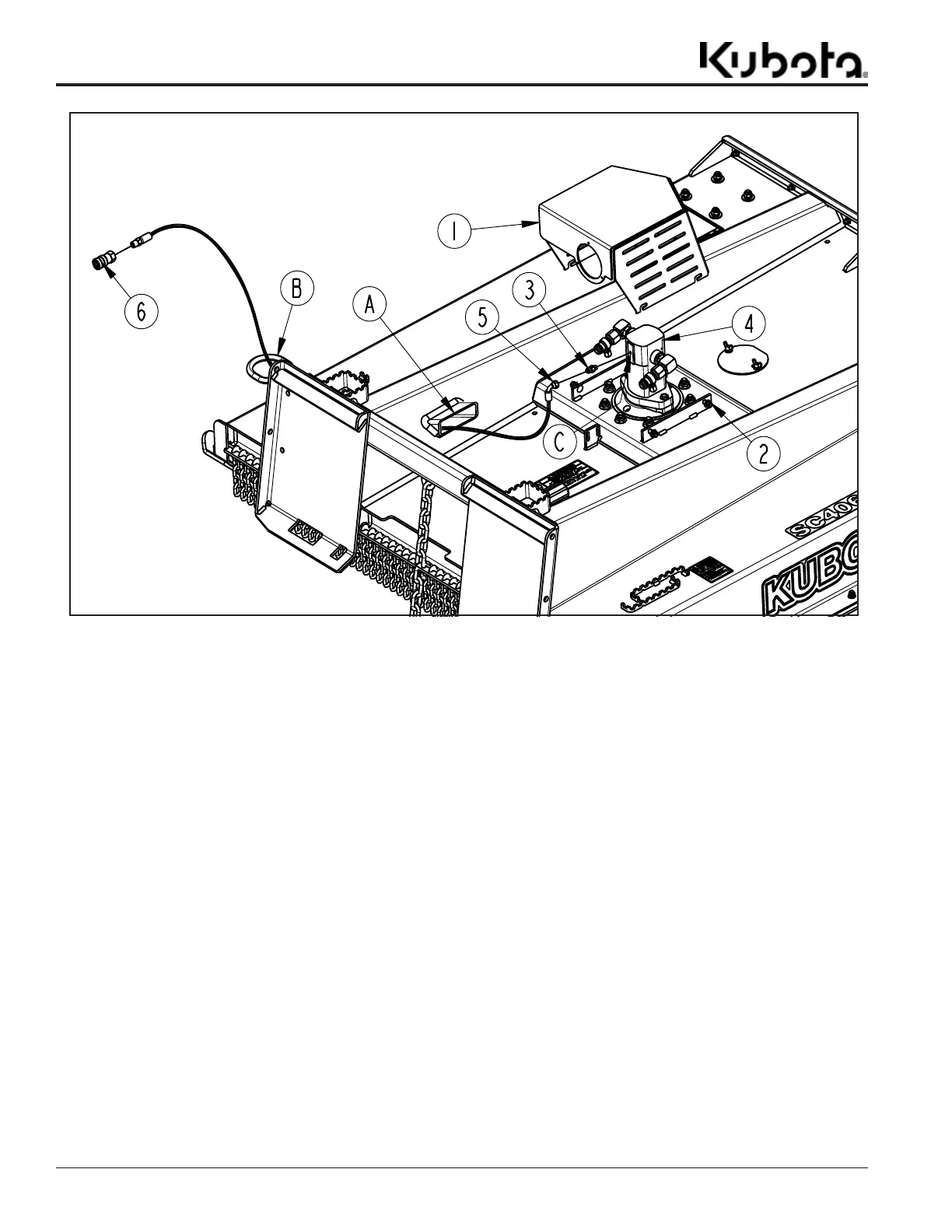

Figure 1-8
39987
Case Drain Assembly (Optional)
Refer to Figure 1-8:
1. Loosen four 3/8"-16 hex nuts (#2). Removing the hex
nuts is not necessary.
2. Remove the motor shroud (#1) by pushing it toward
the front of the unit then lifting it upward.
3. Remove plug from hole (C) in hydraulic motor.
4. Attach adapter fitting (#3) to hole (C) in hydraulic
motor (#4) as shown and tighten.
5. Route hydraulic hose (#5) through designated areas
(A & B) as shown.
6. Attach female end of hydraulic hose (#5) to adapter
fitting (#3) and tighten.
7. Place the motor shroud back in its designated place
and pull back to lock it in place. Tighten hex nuts (#2)
to correct torque.
8. Attach flat faced coupler (#6) to the male end of
hydraulic hose (#5) and tighten.
9. Connect coupler (#6) to case drain resevoir on skid
steer as shown on Figure 1-6 on page 11.
10. Zip tie the case drain hydraulic hose to the two
existing hoses.
