HYDRAULIC UNIT36
A For mid outlet, be sure to use the control valve of the
"Power beyond type" (with relief valve that has a third
line return to tank).
A The "tank" port flow from implement valve should be
connected to the port located on the right hand side of
transmission case.
[Rear outlet]
A If the implement control valve has a relief valve, the
tank port flow from implement should be connected to
the port located on the right hand side of transmission
case.

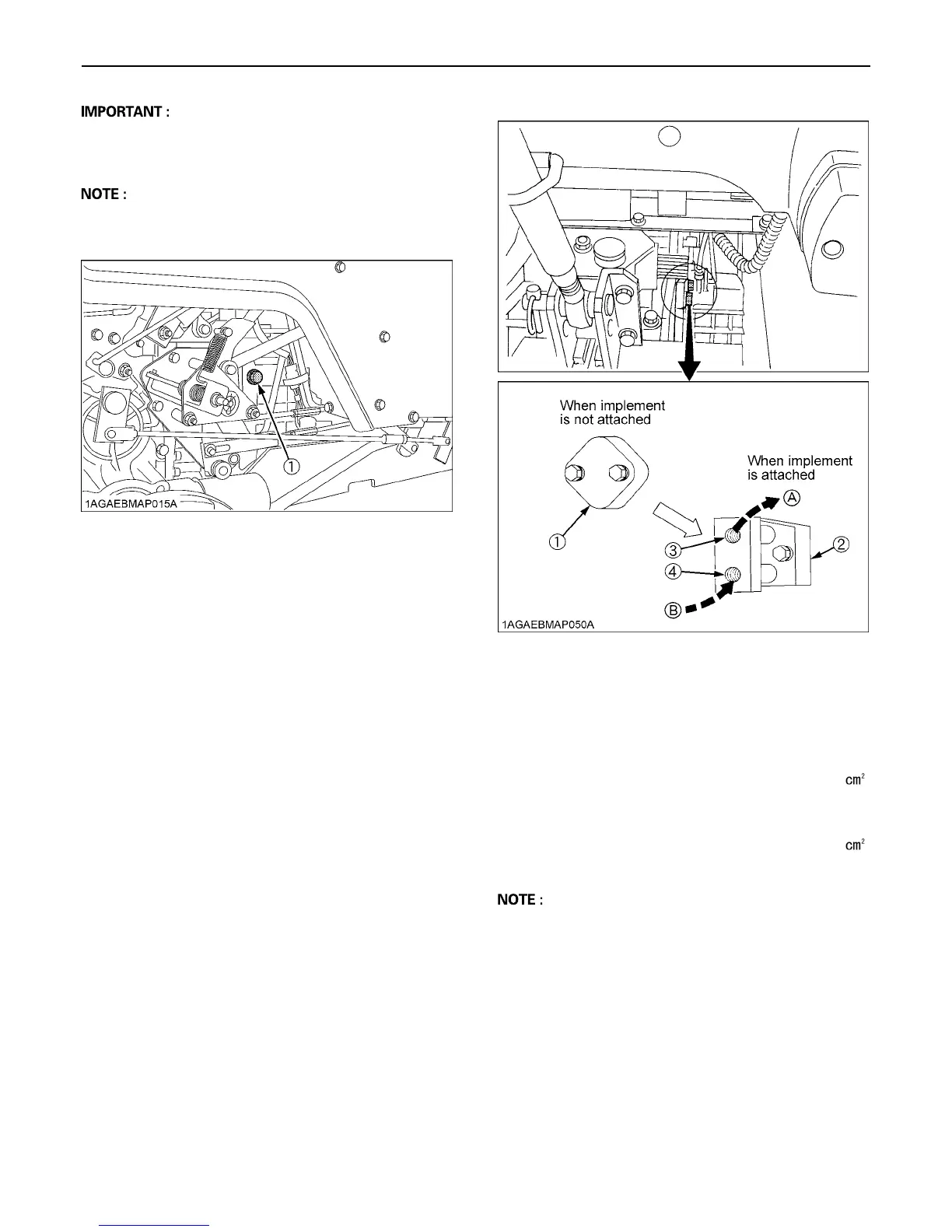

(1) Return port
(1) Block cover
(2) Block outlet cover (option)
(3) Outlet
(4) Inlet
(A) To implement inlet
Max. flow
[B2630]: 21.2 L/min
(5.6 U.S.gals./min)
[B3030/B3000]: 19.7 L/min
(5.2 U.S.gals./min)
Max. pressure
[B2630]: 15.2 to 16.2 MPa
(155 to 165 kgf/ )
(2204 to 2349 psi)
[B3030/B3000]:
15.0 to 16.0 MPa
(153 to 163 kgf/ )
(2175 to 2320 psi)
(B) from implement outlet
