AUXILIARY HYDRAULIC
CONTROL VALVE (IF
EQUIPPED)
WARNING
To avoid serious injury or death:
• Hydraulic fluid leaks under pressure can reach
sufficient force to penetrate skin, causing
serious personal injury.
Before disconnecting the lines, be sure to
relieve all pressure.
• Before applying pressure to the hydraulic
system, be sure that all connections are tight
and that lines, tubes, and hoses are not
damaged.
• Hydraulic fluid escaping from a very small
hole can be almost invisible. Use a piece of
cardboard or wood, rather than hands to search
for suspected leaks.
• If someone gets injured because of leaked
hydraulic fluid, see a doctor at once. Serious
infection or allergic reaction will develop if
proper medical treatment is not administered
immediately.

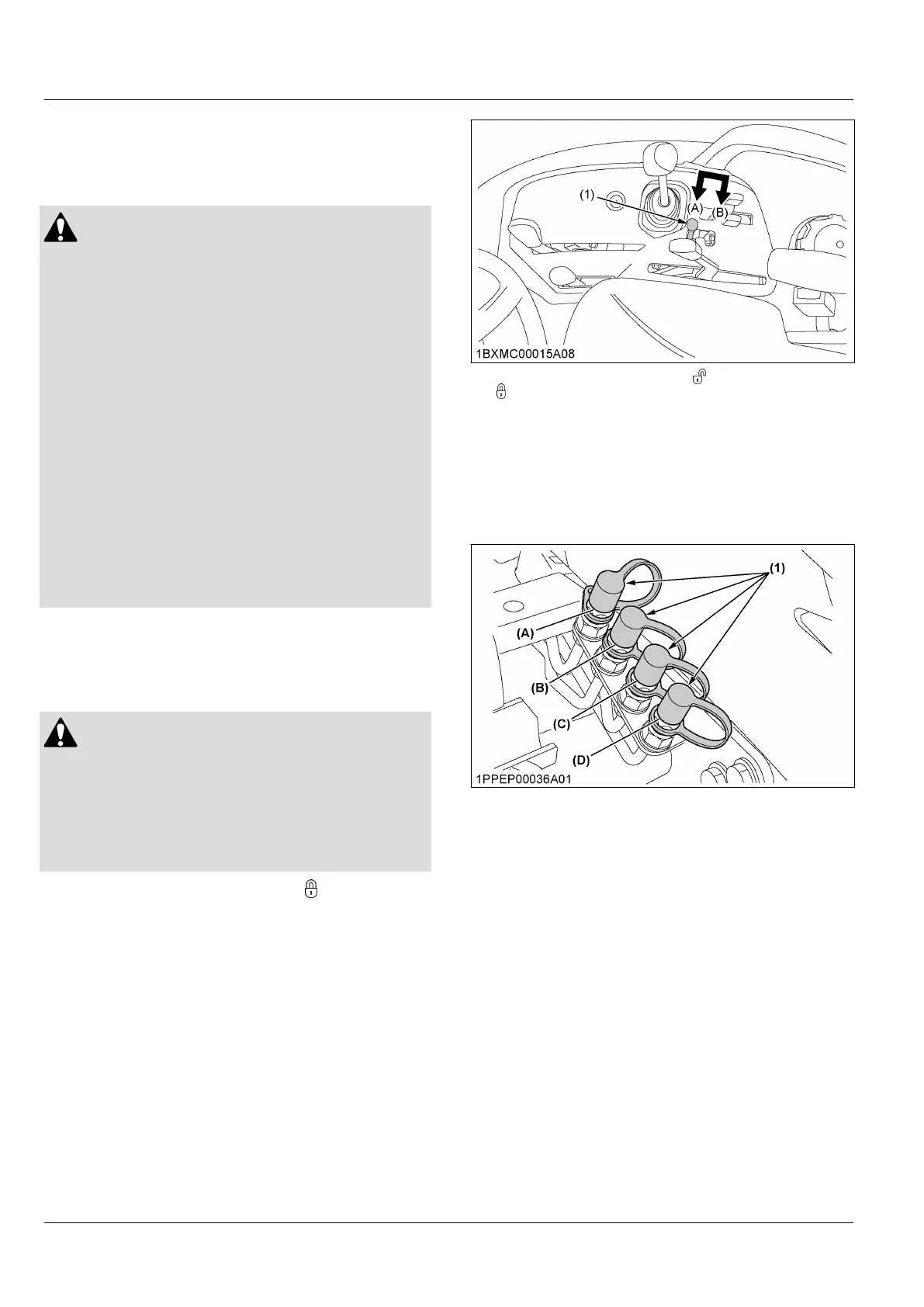

1. Valve lock
The control valve is equipped with a feature of the
valve lock.
WARNING
To avoid personal injury or death from crushing:
• Do not utilise the valve lock for machine
maintenance or repair.
• The valve lock is to prevent accidental actuation
when implement is not in use or during
transport.
The control valve is locked in the lock position.
The lock is not intended and will not prevent a leak
down of the implement during the period of storage.
(1) Lock lever
(A)
Lock
(B)
Unlock
2. Auxiliary hydraulic ports
The auxiliary hydraulic ports are equipped with quick
couplers.
If you do not use the auxiliary hydraulic ports, place the
dust plugs on the quick couplers ends.
(1) Dust plugs
(A) Left (blue)
(B) Right (red)
(C) Backward (yellow)
(D) Forward (white)
HYDRAULIC UNIT AUXILIARY HYDRAULIC CONTROL VALVE (IF EQUIPPED)
