HOW TO USE THE QUICK
COUPLER
IMPORTANT :
• Be sure to relieve all pressure before
connecting or disconnecting lines.
The quick-coupler-system is designed to easily connect
and disconnect the hydraulic hoses simultaneously
without oil leak when attaching and detaching the
loader.
Connecting the quick coupler
IMPORTANT :
• Before connecting each hose, make sure to
carefully clean the mating surfaces of the fixed
part, mating surfaces of the mobile part, and the
reference pins.

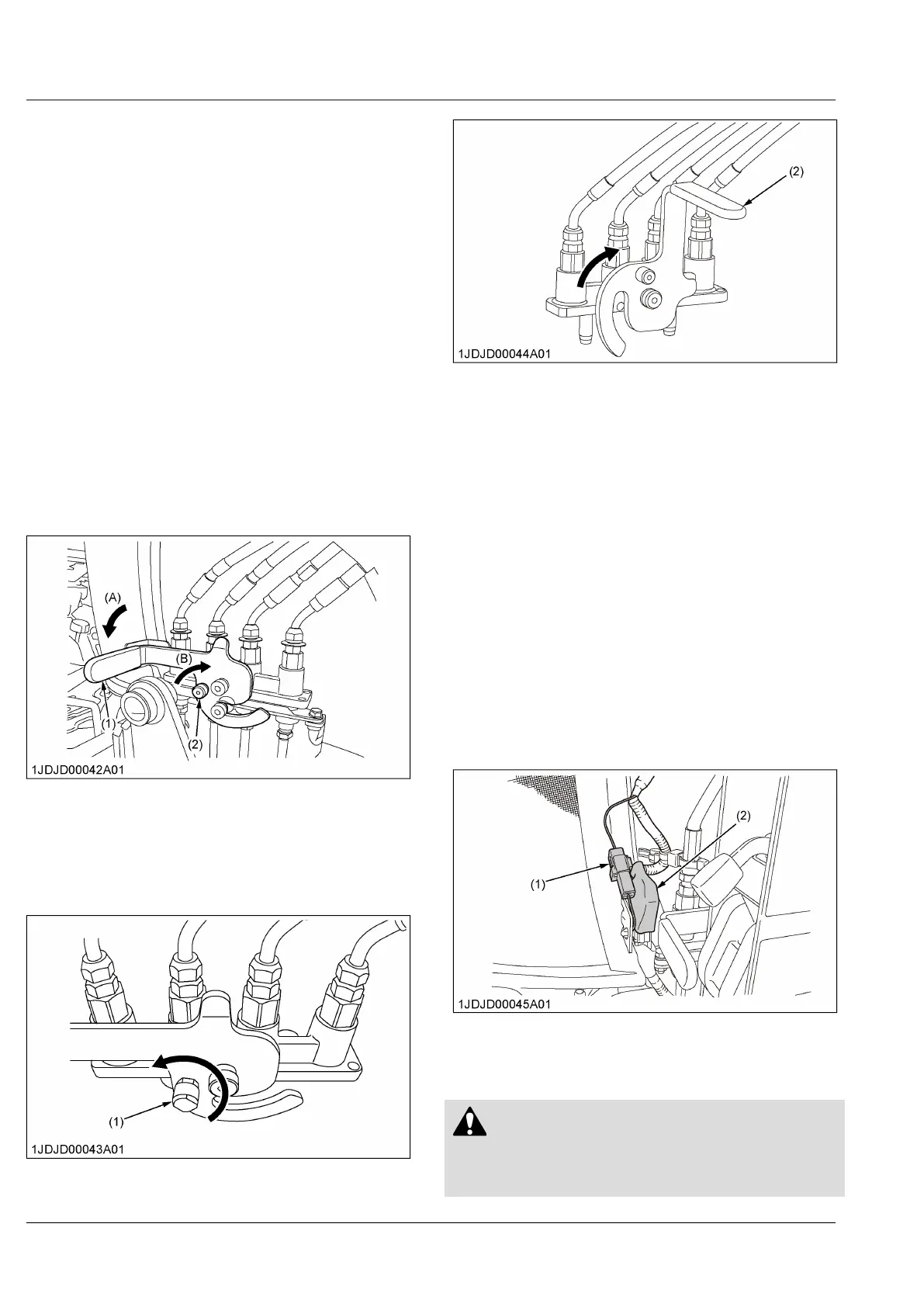

1. Connect the quick coupler and lower the lever until
it stops.
2. Turn the safety-lock-button clockwise.
(1) Lever
(2) Safety lock button (red)
(A) Lower
(B) Clockwise
Disconnecting the quick coupler
1. Turn the safety-lock-button counterclockwise to
unlock it.
2. Raise the lever until it stops.
(1) Safety lock button (2) Lever
IMPORTANT :
• Lubricate periodically all the moving
components.
FRONT REMOTE HYDRAULIC
CONTROL SYSTEM (IF
EQUIPPED)
You can use the front-remote-hydraulic-control-system
for a front mounted hydraulic implement.
The front-remote-hydraulic-control-system provides
hydraulic oil to the front outlet directly.
1. Installing the front remote
hydraulic control system
1. Mount the loader and connect the wire harness of
the front-remote-hydraulic-control-system.
(1) Main harness line (2) Cap connecting
2. Operating the control lever
WARNING
To avoid personal injury or death:
• Valve lock does not lock out the switch-
operated third-function hydraulics, which are
OPERATING THE LOADER HOW TO USE THE QUICK COUPLER
