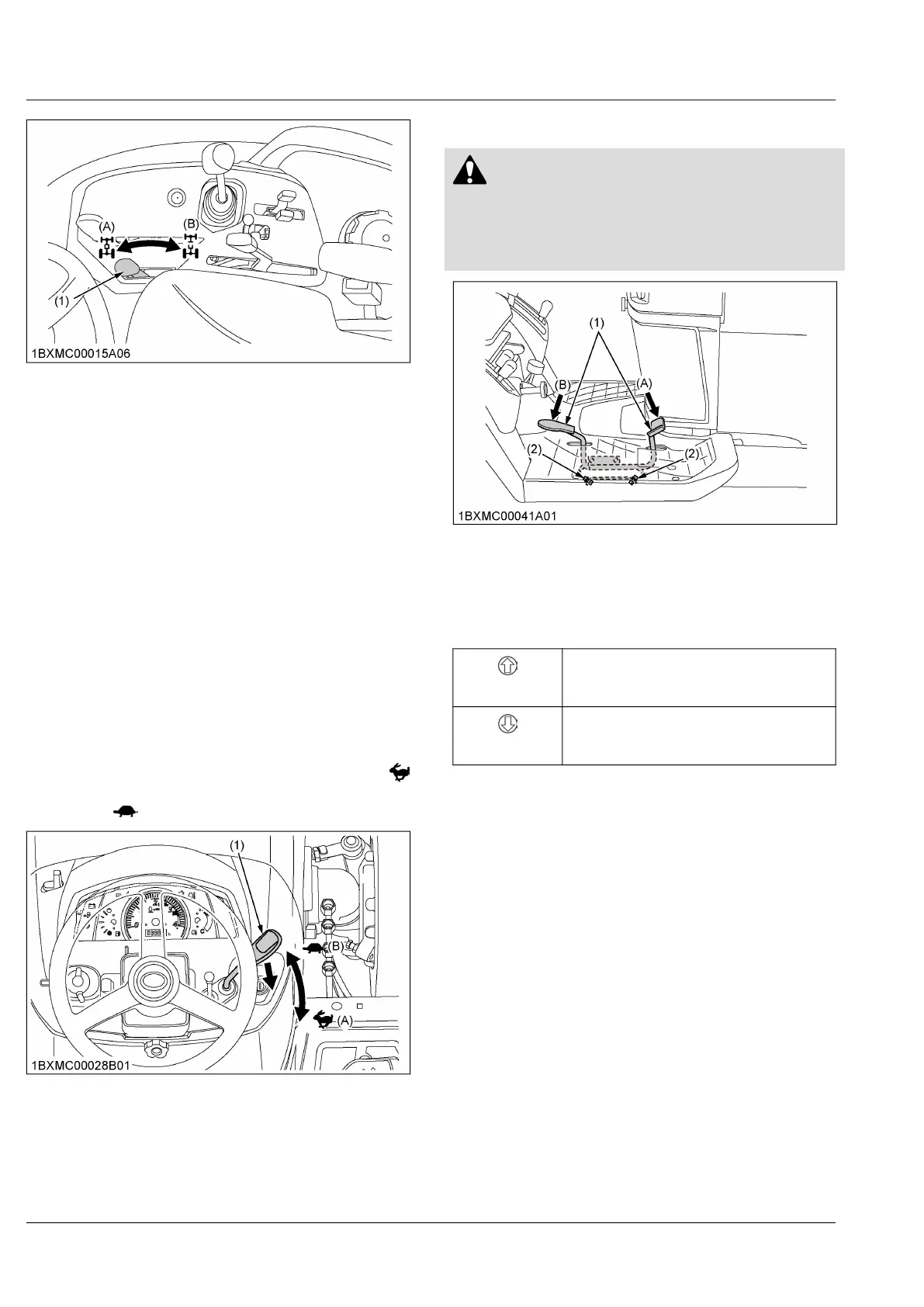

(1) Front wheel drive lever
(A) On
(B) Off
IMPORTANT :
• To avoid damage of transmission, when the
front-wheel-drive-lever is not smoothly shifted,
slightly depress forward or rearward on the
speed-control-pedal.
• Tires will wear quickly if the front-wheel-drive is
engaged on paved roads.
Front wheel drive is effective for the following jobs:
• When greater pulling force is needed, such as
working in a wet field, when pulling a trailer, or
when working with a front-end-loader
• When working in sandy soil
• When working on a hard soil where a rotary tiller
might push the tractor forward
• Additional braking at reduced speed
6. Hand accelerator lever
Pulling the hand-accelerator-lever back (the
position) increases the engine speed, and pushing it
forward (the position) decreases engine speed.
(1) Hand accelerator lever
(A) Increase
(B) Decrease
7. Speed control pedal
WARNING
To avoid serious injury or death:
• Do not operate the tractor if it moves on level
ground with your foot off the speed-control-
pedal.
(1) Speed control pedal
(2) Stopper bolts
(A) Forward
(B) Reverse
IMPORTANT :
• To prevent serious damage to the HST, do not
adjust the stopper bolts.
Forward pedal
Depress the forward pedal with the toe of your
right foot to move forward.
Reverse pedal
Depress the reverse pedal with the heel of
your right foot to move backward.
NOTE :
• When you stand up from the seat with the
speed-control-pedal stepped on, the engine will
stop regardless of whether the machine is
moving or not. Engine stopping is because that
the tractor is equipped with the operator-
presence-control-system (OPC).
8. Speed set device
The speed-set-device is designed for tractor-operating-
efficiency and operator's comfort. This device will
provide a constant forward operating speed by
mechanically holding the speed-control-pedal at a
selected position.
INSTRUMENT PANEL AND CONTROLS
FOOT CONTROLS AND HAND CONTROLS
