15OPERATING THE MACHINE
STARTING

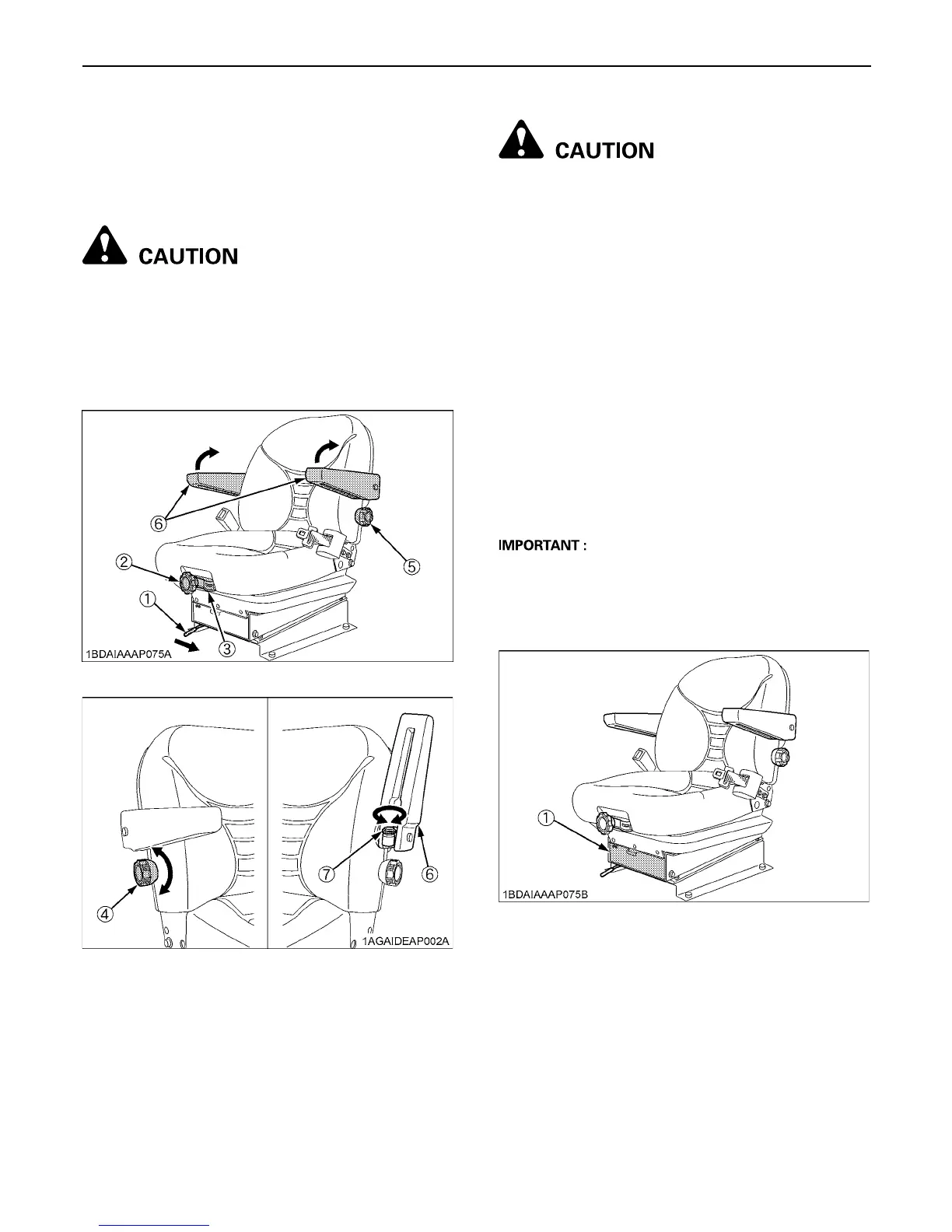

BOperator's Seat
To avoid personal injury:
A Make adjustments to the seat only while the
machine is stopped.
A Make sure that the seat is completely secured
after each adjustment.
A Do not allow any person other than the driver to
ride on the machine.
C Travel adjustment
Unlock the travel adjust lever and slide the seat backward
or forward, as required. The seat will lock in position when
the lever is released.
To avoid personal injury:
A Use extra caution when unlocking the travel
adjust lever because the seat might slide
forward by itself.
C Suspension adjustment
Turn the suspension adjust knob to achieve the optimum
suspension setting.
C Lumbar support adjustment
Turn the lumbar support adjust knob to the desired
position.
C Backrest tilt adjustment
Turn the backrest tilt adjust knob to the desired angle.
C Arm rest
Arm rest may be set at upright position if desired.
C Arm rest angle adjustment
Turn the arm rest angle adjust knob to the desired angle.
A After adjusting the operator's seat, be sure to check to
see that the seat is properly locked.
BGlobe Box
1. Adjust the operator's position.
(1) Travel adjust lever
(2) Suspension adjust knob
(3) Indicator of suspension
(4) Backrest tilt adjust knob
(5) Lumber support adjust knob
(6) Arm rest
(7) Arm rest angle adjust knob
(1) Globe box
To Next Page
