Kubota G23 User Manual

MOWER
G23, G26, WSM
7-M1
(EU)
1. POWER TRANSMISSION
The power is transmitted from the engine flywheel to the blades.
Q Power Transmission
Engine flywheel → PTO clutch belts → PTO clutch → Universal joint (1) → Input shaft → Bevel gear case (2) →
Mower centre case (Idle gears) → Blade spindle case (LH) (3), (RH) → Blade (LH) (4), Blade (RH)
9Y1210294MOM0001US0

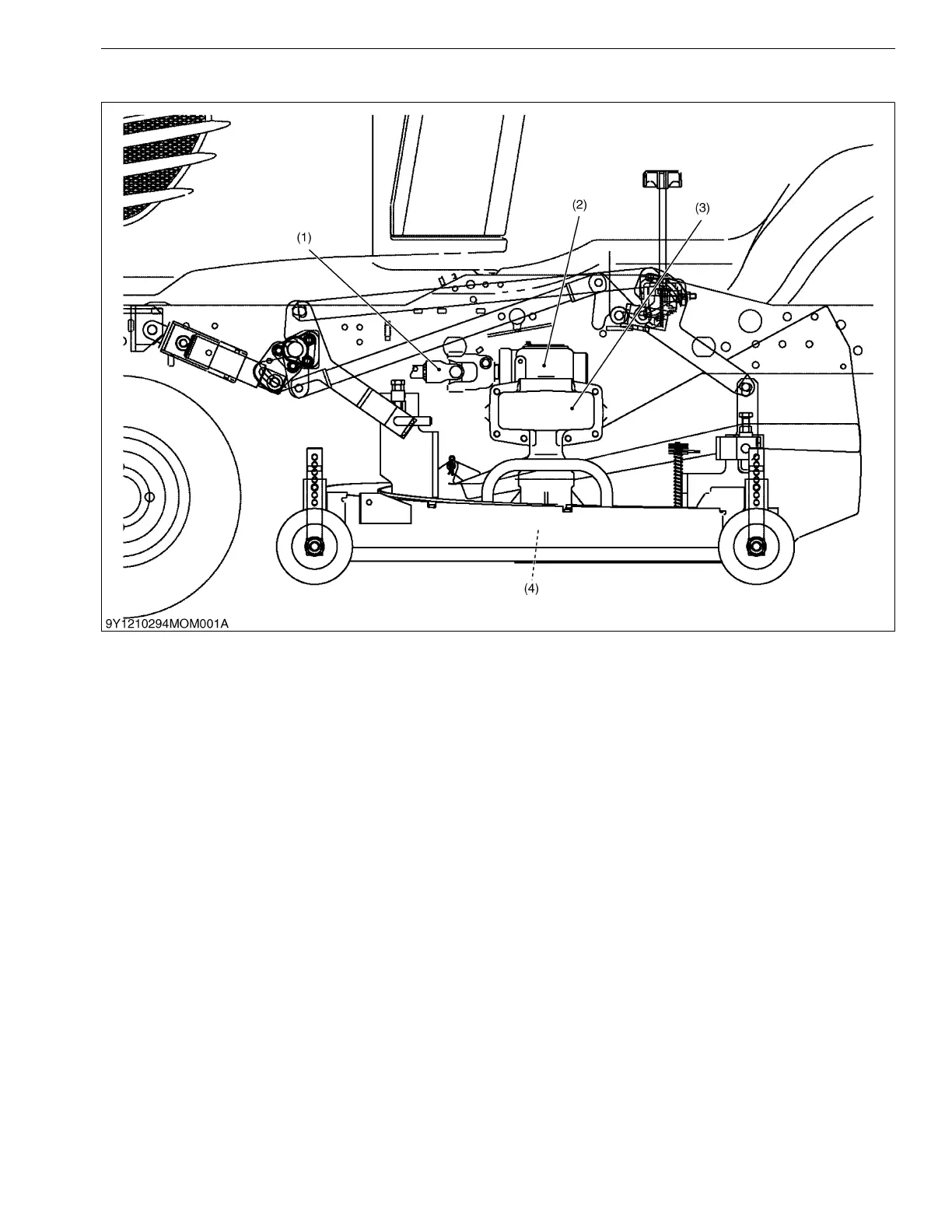

(1) Universal Joint (2) Bevel Gear Case (3) Blade Spindle Case (LH) (4) Blade (LH)
KiSC issued 08, 2009 A

Kubota G23 Specifications

General

Engine Power	23 HP
Transmission	Hydrostatic
Cutting Width	48 inches
Fuel Type	Diesel
Drive	2WD
Number of Blades	3
Engine Type	Diesel
Fuel Capacity	6.3 gallons
