GENERAL
G23, G26, WSM
G-61
(EU)
9. TYRE PRESSURE AND WHEEL
[1] TYRE PRESSURE
Checking Tyre Pressure
To avoid personal injury :
• Do not attempt to mount a tyre on a rim. This should be
done by a qualified person with the proper equipment.
• Always maintain the correct tyre pressure.
Do not inflate tyre above the recommended pressure
shown in the Operator's Manual.
• Inflation pressure in front tyres rises quickly when using
compressed air.
Never operate machine with a loose rim, wheel, or axle.
• Whenever bolts are loosened, retighten to specified torque.
• Check all bolts frequently and keep them tightened.
Q Inflation Pressure
Though the inflation pressure is factory-set to the prescribed
level, it naturally drops slowly in the course of time. Thus, check it
everyday and inflate as necessary.
9Y1210294GEG0011US0
[2] WHEEL
• When re-fitting or adjusting a wheel, tighten the bolts to the
following to torques then recheck after driving the machine
200 m (182 yard), after one day (8 hours) and thereafter
every 50 hours (as per maintenance chart).
• Use the tapered bolts for wheels with beveled or tapered
holes.
9Y1210294GEG0072US0
Tyre Sizes
Recommended Inflation
Max. Pressure
Front 16 × 7.50-8, Turf
120 kPa (1.2 kgf/cm
2
,
17.4 psi)
Rear 24 × 12.00-12, Turf
100 kPa (1.0 kgf/cm
2
,
14.5 psi)

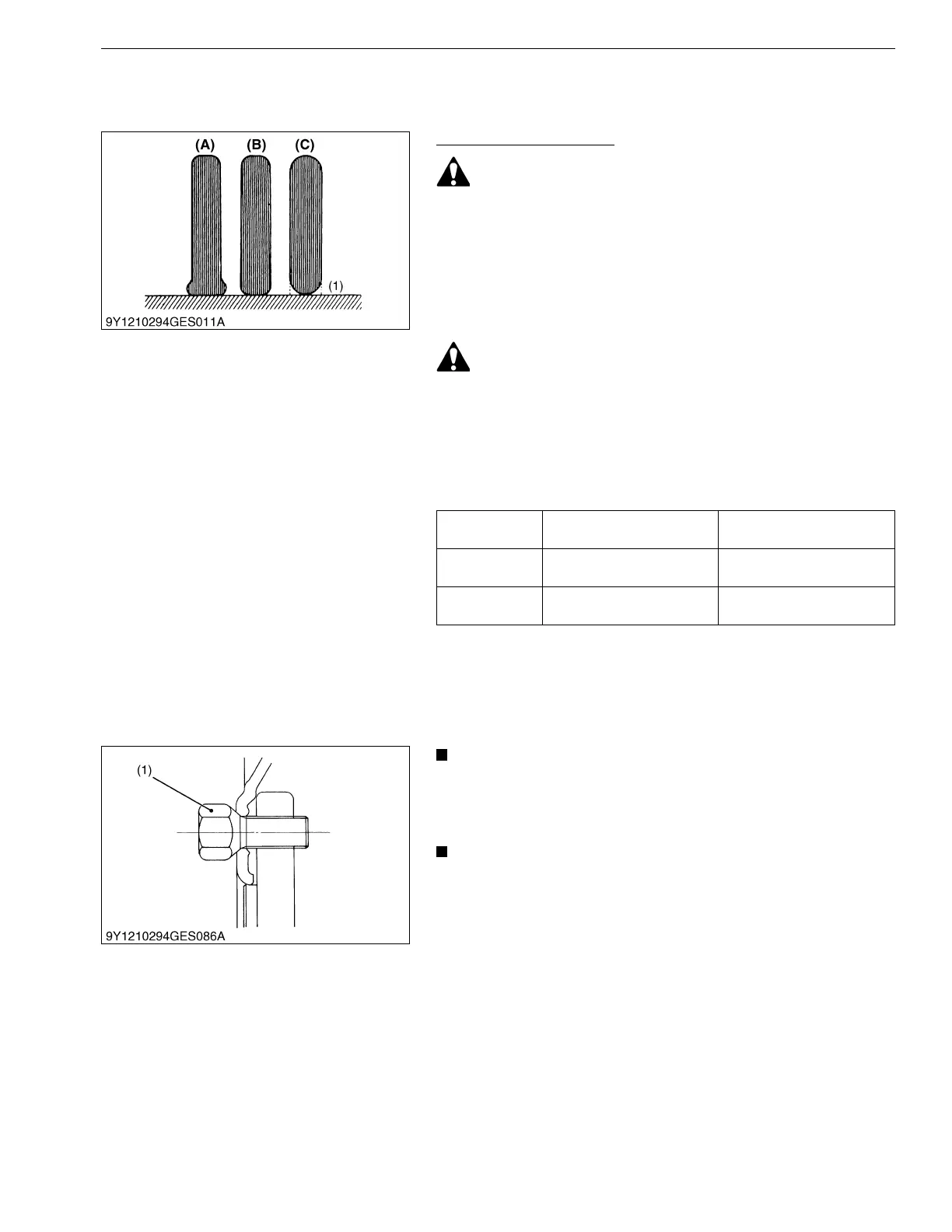

(1) Ground (A) Insufficient
(B) Normal
(C) Excessive
(1) Bolt
