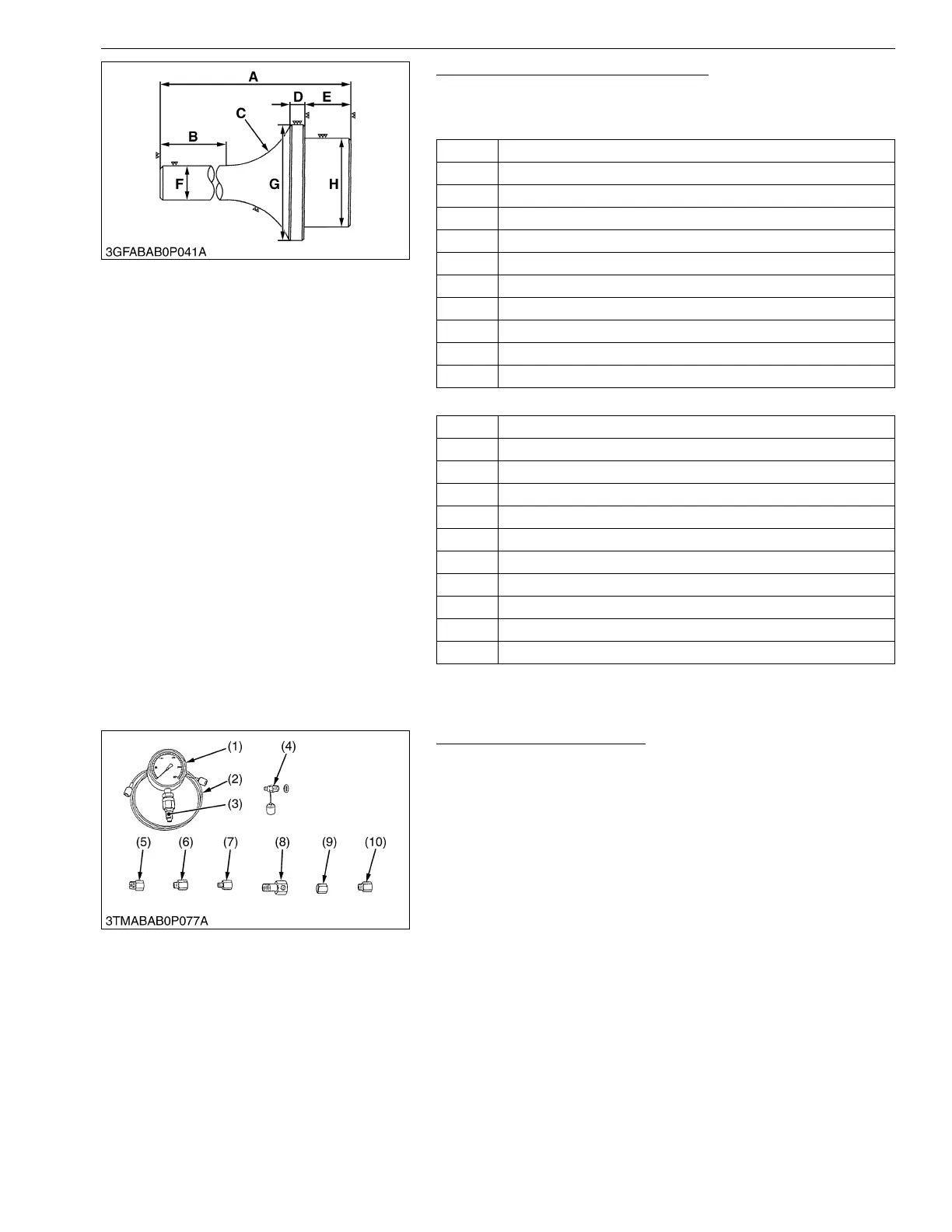

Crankshaft Bearing 1 Replacing Tool
Application
• Use to press out and press fit the crankshaft bearing 1.
[Press Out]
[Press Fit]
9Y1210294GEG0068US0
[2] SPECIAL TOOLS FOR TRACTOR
Relief Valve Pressure Tester
Code No.
• 07916-50045
Application
• This allows easy measurement of relief set pressure.
WSM000001GEG0027US0
A 135 mm (5.31 in.)
B 72 mm (2.83 in.)
C 40 mm radius (1.57 in. radius)
D 10 mm (0.39 in.)
E 22 mm (0.87 in.)
F 20 mm dia. (0.79 in. dia.)
G 56.80 to 56.90 mm dia. (2.2362 to 2.2402 in.dia.)
H 51.80 to 51.90 mm dia. (2.0393 to 2.0433 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.012 in.)
A 130 mm (5.12 in.)
B 72 mm (2.83 in.)
C 40 mm radius (1.57 in. radius)
D 9 mm (0.35 in.)
E 24 mm (0.95 in.)
F 20 mm dia. (0.79 in. dia.)
G 68 mm dia. (2.68 in.dia.)
H 47.38 to 47.48 mm dia. (1.865 to 1.869 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.012 in.)
(1) Gauge (07916-50322)
(2) Cable (07916-50331)
(3) Threaded Joint (07916-50401)
(4) Threaded Joint (07916-50341)
(5) Adaptor B (M18 × P1.5)
(07916-50361)
(6) Adaptor C (PS3/8) (07916-50371)
(7) Adaptor D (PT1/8) (07916-50381)
(8) Adaptor E (PS3/8) (07916-50392)
(9) Adaptor F (PF1/2) (07916-62601)
(10) Adaptor 58 (PT1/4) (07916-52391)
