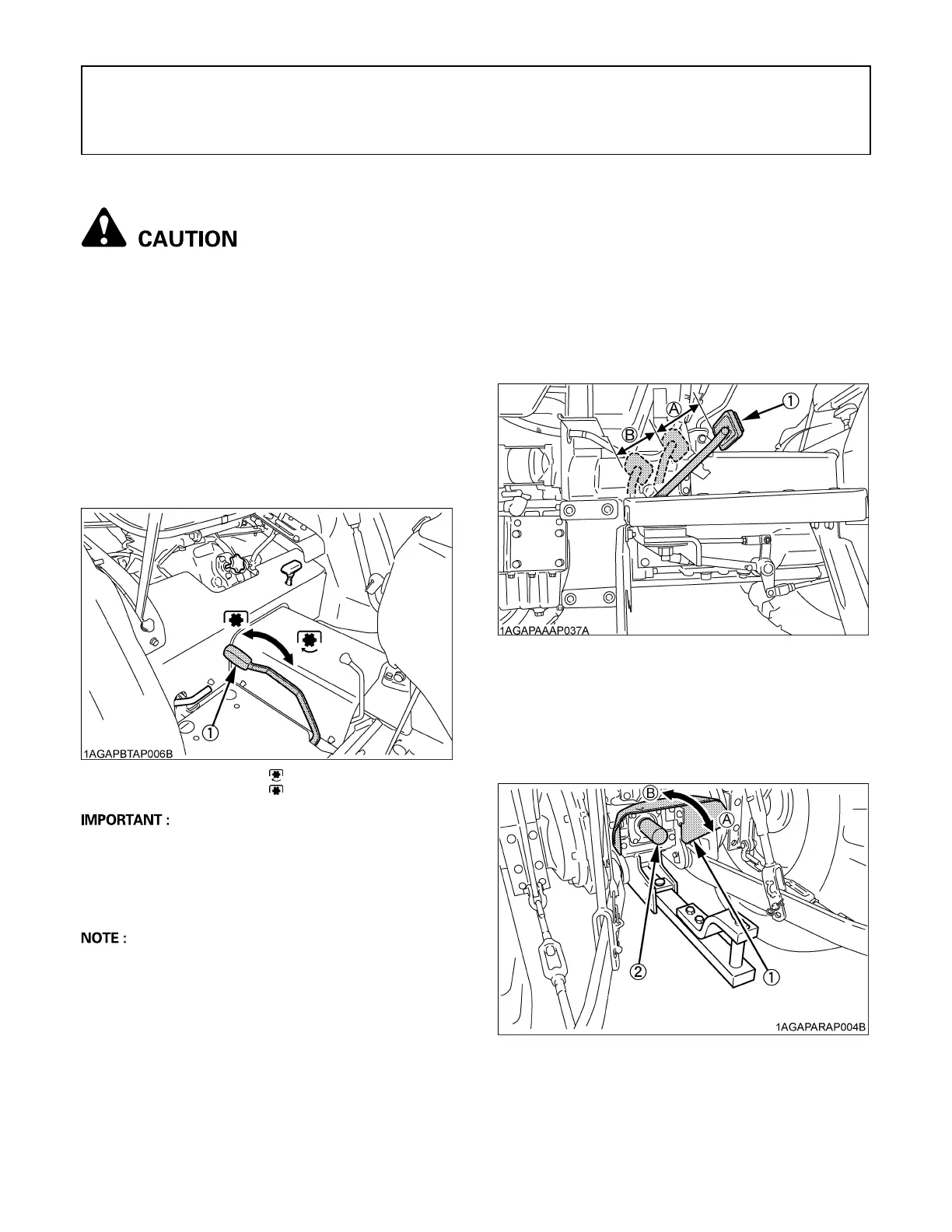

PTO OPERATION
To avoid personal injury:
A Disengage PTO, stop engine, and allow all
rotating components to come to a complete
stop before connecting, disconnecting,
adjusting, or cleaning any PTO driven
equipment.
BPTO Gear Shift Lever
1. The tractor has a 540 rpm speed position.
2. PTO shifting needs clutch operation. Press the clutch
pedal down completely to stop the tractor movement
and any PTO driven equipment movement before
shifting the PTO gear shift lever.
A To avoid shock loads to the PTO, reduce engine
speed when engaging the PTO, then open the throttle
to the recommended speed:
A To avoid damage of transmission, before shifting the
PTO gear shift lever, fully disengage the main clutch.
A There is a PTO-1 (540 rpm) indicated mark on the
tachometer board.
A Tractor engine will not start if PTO gear shift lever is in
the engaged "ON" position.
BLive PTO Operation
[with Dual Clutch]
1. Fully depressed the clutch pedal (1), and move the
PTO gear shift lever to "ON" position and select the
traveling speed.
2. Release the clutch pedal half-way (B) and the PTO will
be engaged, but transmission clutch remains
disengaged.
3. Release the clutch pedal (A) and start the tractor.
BPTO Shaft Cover and Shaft Cap
Keep the PTO shaft cover in place at all times.
Replace the PTO shaft cap when the shaft is not in use.
When connecting or disconnecting the joint to PTO shaft,
raise up the PTO shaft cover.
(1)PTO gear shift lever "ON"
"OFF"
(1) Clutch pedal
(1) PTO shaft cover
(2) PTO shaft cap
(A) "NORMAL POSITION"
(B) "RAISED POSITION"
