32 HYDRAULIC UNIT

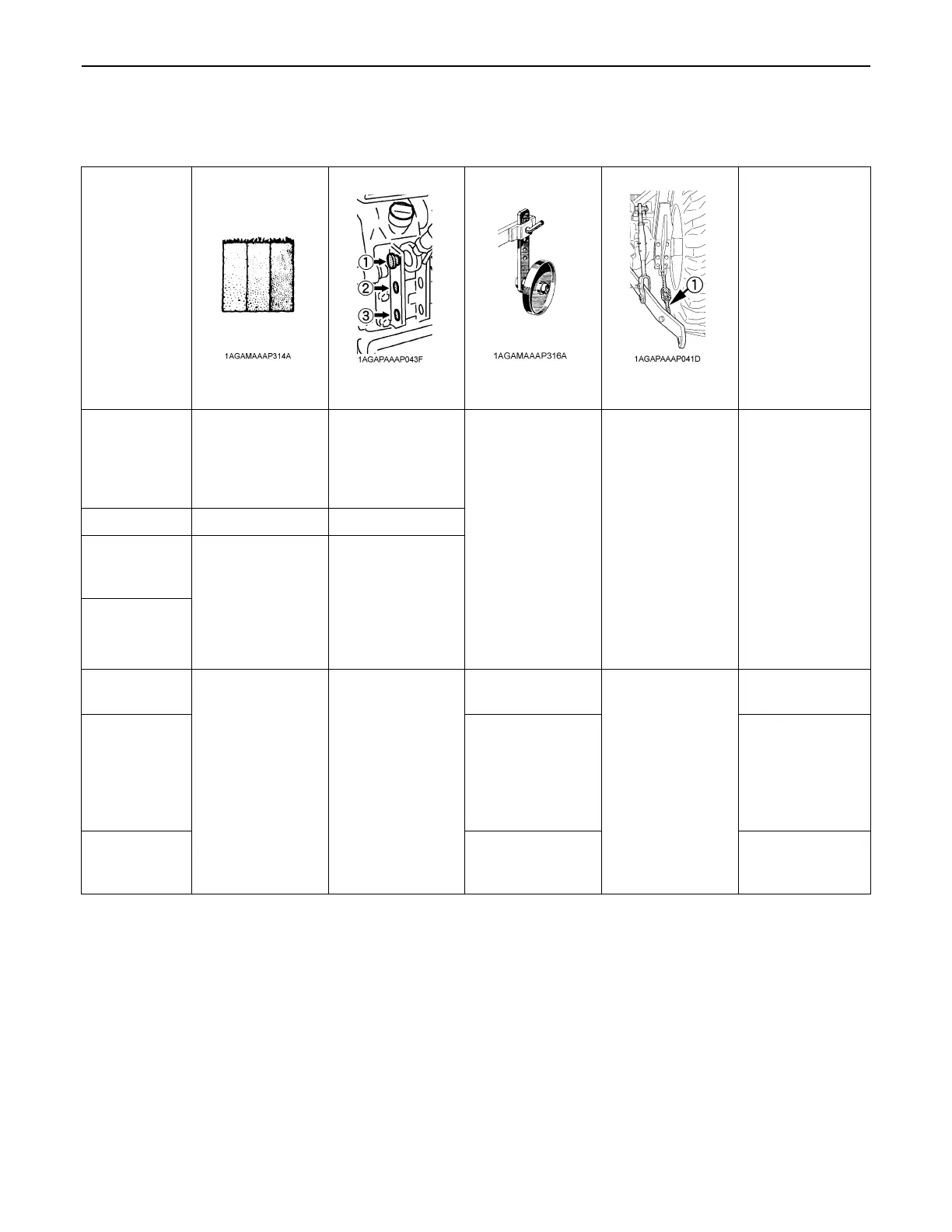

BHydraulic Control Unit Use Reference Chart
In order to handle the hydraulics properly, the operator must be familiar with the following. Though this information may not
be applicable to all types of implements and soil conditions, it is useful for general conditions.
Implement
Soil condition
Top link mounting
holes
Gauge wheel
(1) Check chains
Remarks
Moldboard
plow
Light soil
Medium soil
Heavy soil
1 or 2
2 or 3
3
YES/NO Loose
Adjust the check
chains so that the
implement can
move 5 to 6 cm
laterally.
Check chains
should be tight
enough to prevent
excessive
implement
movement when
implement is in
raised position.
Disc plow --- 2 or 3
Harrow (spike,
springtooth,
disc type)
--- 2 or 3
Sub-soiler ...
Weeder,
ridger...
--- 3
YES
Tighten
Earthmover,
digger,
scraper,
manure fork,
rear
carrier.........
YES/NO
With implements
with gauge
wheels, lower the
position control
lever all the way.
Mower (mid-
and rear-
mount type)
NO
