PERIODIC SERVICE60
BReplacing Light Bulb
1. Head light and rear combination lights :
Take the bulb out of the light body and replace with a
new one.
2. Other lights :
Detach the lens and replace the bulb.
BReplacing Head Lamp
To avoid personal injury:
A Be careful not to drop the bulb, hit anything
against the lamp, apply excess force, and get
the lamp scratched. If broken, glass may cause
injury.
A Before replacing the lamp, be sure to turn off
the light and wait until the bulb cools down,
otherwise, you may get burned.
C Removing Bulb
1. Remove the rubber boot.
2. Turn the socket counterclockwise while pressing and
remove it.
3. Remove the bulb.
C Attaching Bulb
1. Align (A) of the bulb with (B) of the lamp case and
attach the bulb.
2. Align (C) of the socket with (D) of the lamp case and
attach the socket.
3. Attach the rubber boot.
A Be sure to use a new bulb of the specified wattage.
A Never touch the bulb surface (glass) with bare hands.
Fingerprints, for example, may break the bulb.

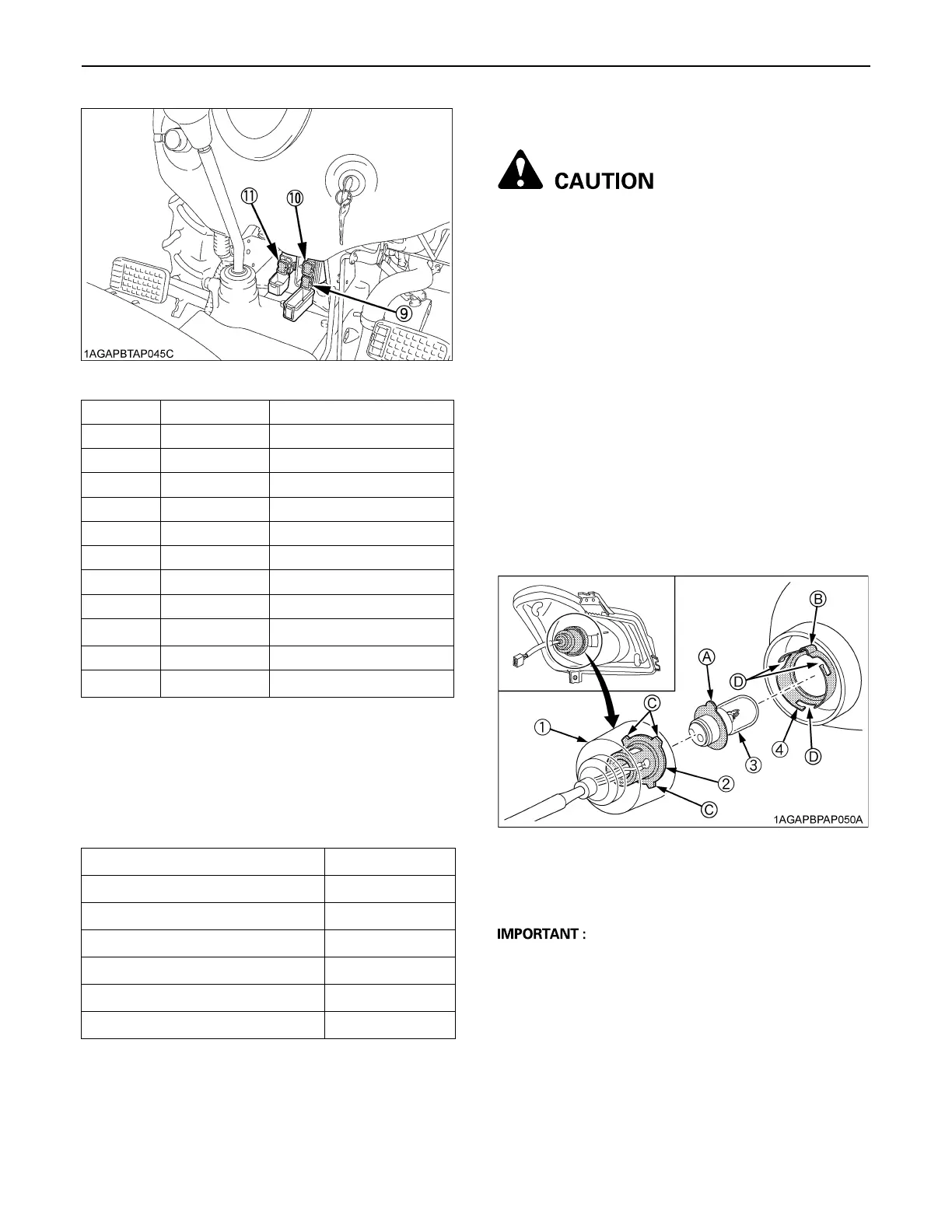

FUSE No. CAPACITY(A) Protected circuit
(1) 15 Hazard
(2) 10 Work light
(3) 10 Panel
(4) 15 Head light
(5) 5 Key stop
(6) 5 Glow lamp
(7) 5 Starter relay
(8) 10 Brake lamp
(9) 40 Main
(10) 30 Key stop
(11) 40 Key switch
Light Capacity
Head light 25 W / 25 W
Tail light 5 W
Turn signal / Hazard light (rear) 21 W
Turn signal / Hazard light (front) 23 W
Instrument panel light 1.7 W
Brake stop light 21 W
(1) Rubber boot
(2) Socket
(3) Bulb
(4) Lamp Case
(A) "Align to (B)"
(C) "Align to (D)"
