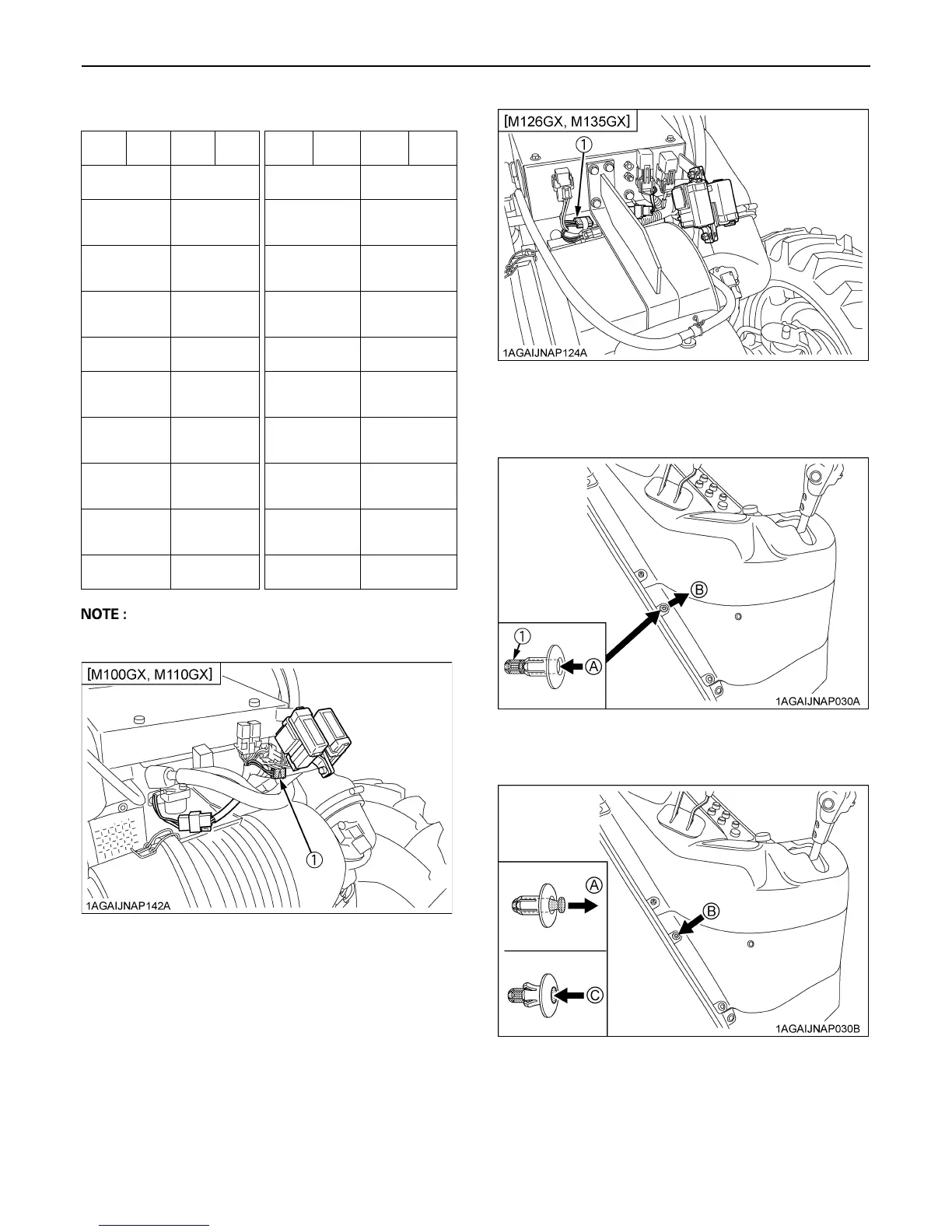

PERIODIC SERVICE136
C Protected circuit
*1 Depending on the specification, this fuse is not
equipped.
C How to attach and detach the push-rivet assy.
A Detaching procedure
A Attaching procedure
[5A]
Spare
[10A]
Spare
[15A]
Spare
[20A]
Spare
[15A] Work light
(Cabin side)
[10A] ECU
(Suspension)*1
[5A] Switch
(Transmission
control)
[15A] Work light
(Front upper)
[15A]
Head lamp
[5A]
ECU (Switch)
[5A]
Switch
(Hitch control)
[30A]
Air conditioner fan
motor
[20A]
Defogger
[10A]
ECU (Main)
[10A]
Air conditioner
compressor
[5A]
Main meter
[10A]
Option lamp
[15A]
Tail lamp
[10A]
Brake lamp
[5A]
4WD, Bi-speed,
Differential lock
[15A]
Work light (Rear)
[15A]
Hazard
[5A]
Radio
[5A]
Engine control,
PTO valve
[10A]
Work light
(Bonnet)
[10A]
Dome light, Radio
[5A]
Air conditioner
(Fan control)
[10A]
Turn signal
[15A]
Seat compressor
[10A]
Horn
[15A]
Wiper
[15A]
Loader power
aux socket
[15A]
Cigarette socket
[5A]
Glow relay
[5A]
Starter relay
[5A]
LCD monitor
[15A]
Work light (Option)
[5A] Back up
(ECU, Meter)
(1) Fuse (20A): CRS POWER
(1) Center-rivet (A) Push in the center-rivet.
(B) Pull out the push-rivet assy.
(A) Pull out the center-rivet.
(B) Attach the push-rivet assy.
(C) Push the center-rivet.
