8 INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL AND CONTROLS
B Instrument Panel, Switches and Hand Controls

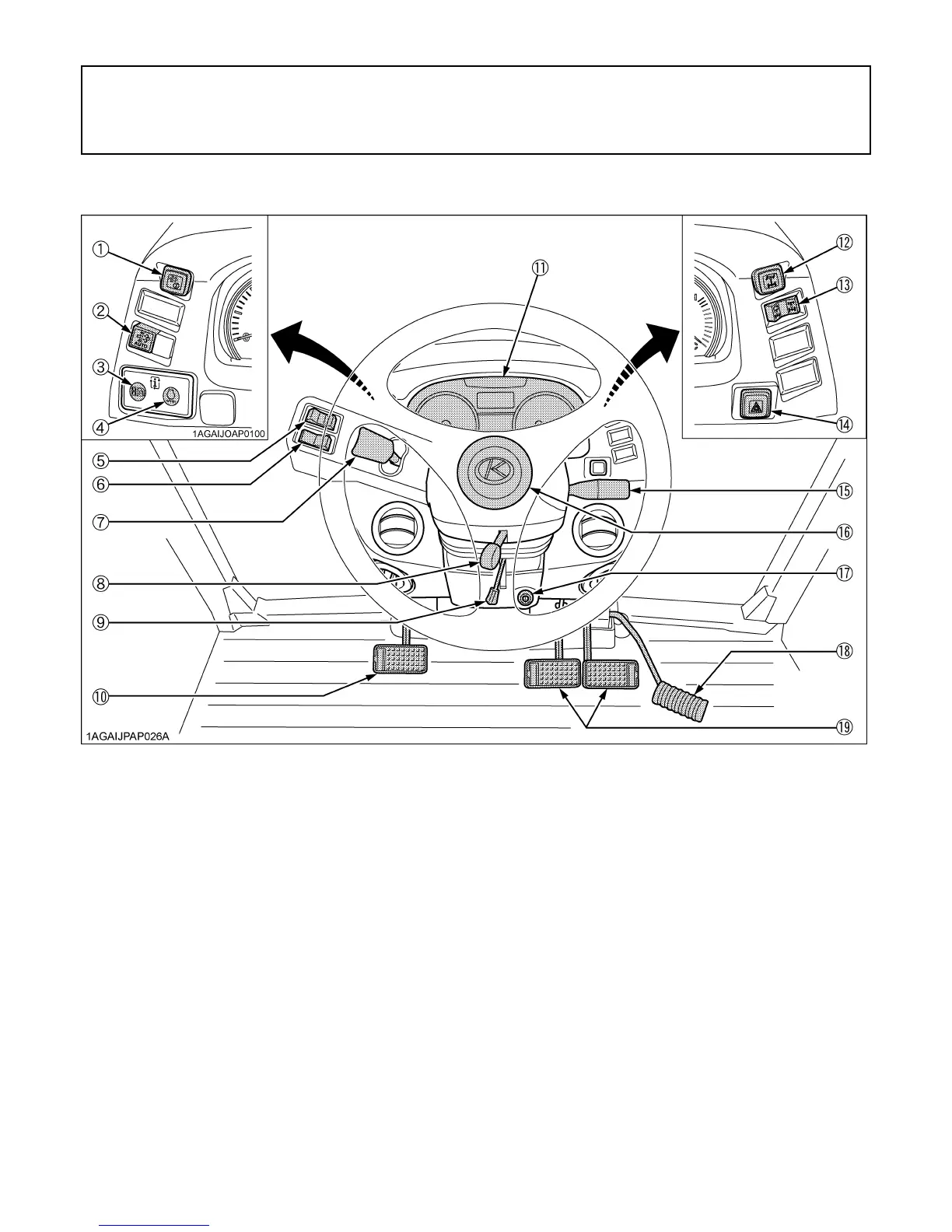

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Parked regeneration switch ................................... 14 (11) Instrument panel .................................................. 39
(2) Auto regeneration switch ....................................... 14 (12) Front wheel differential lock switch ....................... 63
(3) Display switch (Hour, Trip) ..................................... 41 (13) 4WD / Bi-speed turn switch .................................. 38
(4) Engine RPM dual memory A/B indicator switch ..... 47 (14) Hazard light switch ............................................... 31
(5) Front wiper / washer switch .................................... 91 (15) Turn signal / Head light switch .............................. 31, 31
(6) Rear wiper / washer switch .................................... 92 (16) Horn button .......................................................... 32
(7) Shuttle lever ........................................................... 37 (17) Key switch ........................................................... ---
(8) Steering wheel telescope lever .............................. 31 (18) Foot throttle ......................................................... 39
(9) Steering wheel tilt lever ........................................ 31 (19) Brake pedal ......................................................... 33
(10) Clutch pedal ......................................................... 34
