PERIODIC SERVICE84

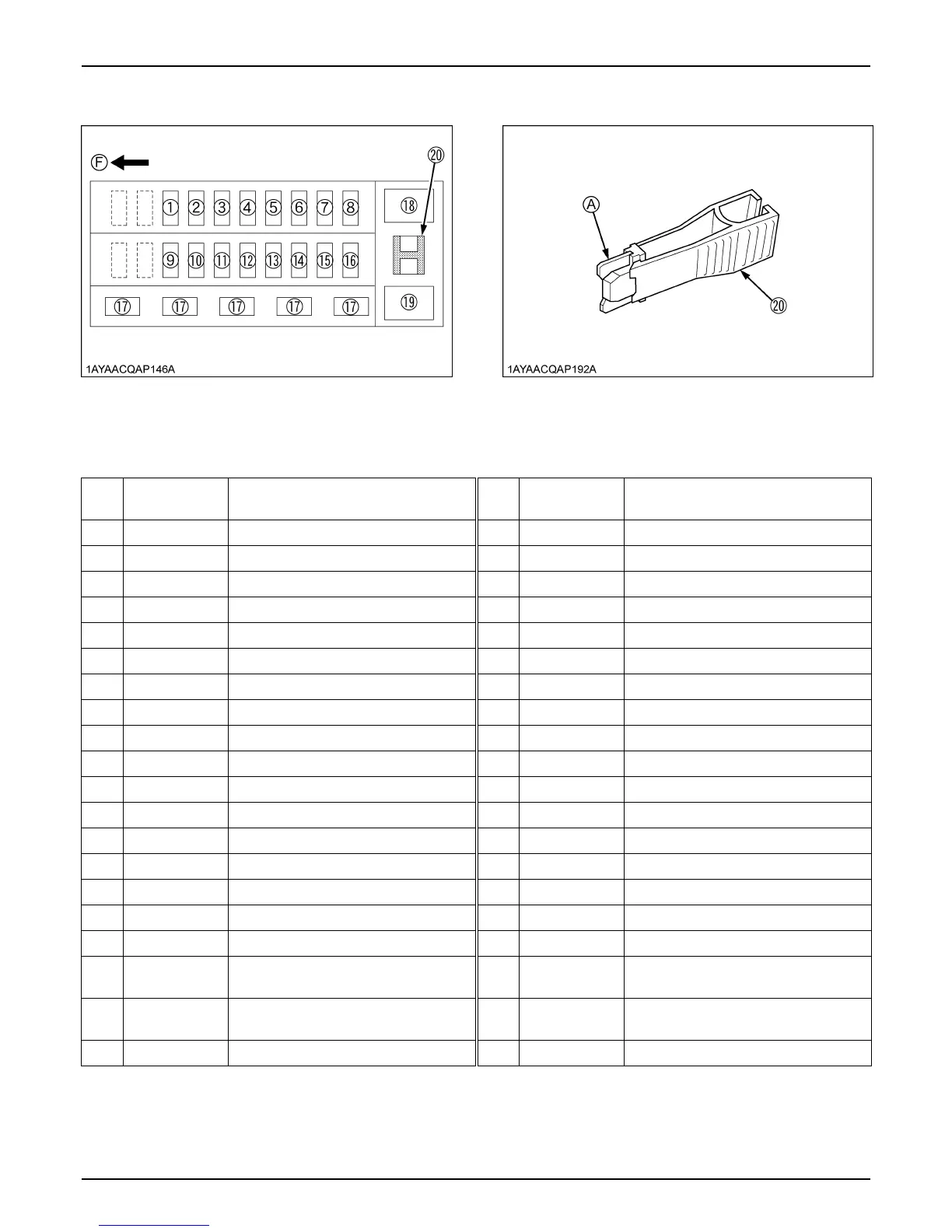

(F) Front (20) Fuse puller (A) Fuse
[RTV-X900]
Protected circuit
[RTV-X1120D]
Protected circuit
Fuse
No.
Capacity (A) Protected circuit
Fuse
No.
Capacity (A) Protected circuit
1 5 Glow lamp 1 5 Glow lamp
2 5 Starter relay 2 5 Starter relay
3 10 Radiator fan relay 3 10 Radiator fan relay
4 10 AUX / B, Buzzer relay (OPT, LAMP) 4 10 AUX / B, Buzzer relay (OPT, LAMP)
5 5 Key stop timer 5 5 Solenoid
6 5 Meter (IGN) 6 5 Meter (IGN)
7 15 Beacon / Fog lamp 7 15 Beacon / Fog lamp
8 15 Head light blinker (F) 8 15 Head light blinker (F)
9 15 Blinker (R) brake lamp 9 15 Blinker (R) brake lamp
10 30 Radiator fan 10 30 Radiator fan
11 10 DC output 11 10 DC output
12 20 --- 12 20 ---
13 10 Horn 13 10 Horn
14 15 Work light 14 15 Work light
15 15 Key stop timer 15 30 Solenoid
16 5 Meter (BAT) 16 5 Meter (BAT)
17 30, 20, 15, 10, 5 Spare 17 30, 20, 15, 10, 5 Spare
18
Slow-blow fuse
(60)
Key switch 18
Slow-blow fuse
(60)
Key switch
19
Slow-blow fuse
(60)
Alternator 19
Slow-blow fuse
(60)
Alternator
20 - Fuse puller 20 - Fuse puller
