37HYDRAULIC OUTLET
BHydraulic Outlet Valve Coupler
Connecting and Disconnecting
To avoid serious injury:
A Stop the engine and relieve pressure before
connecting or disconnecting lines.
A Do not use your hand to check for leaks.
A Make sure couplers are locked securely after
connecting them.
A Always wear protective gloves when handling
hydraulic tools, hoses and couplers.
C Connecting
1. Remove dust plugs.
2. Clean both couplers.
3. Insert the implement coupler to the vehicle hydraulic
coupler.
4. Pull the implement coupler slightly to make sure
couplers are firmly connected.
C Disconnecting
1. Lower the implement first to the ground to relieve
hydraulic pressure in the hoses.
2. Clean the couplers.
3. Relieve pressure by moving hydraulic control levers
with engine shut off.
4. Pull the hose straight from the hydraulic coupler while
pulling the ring to release it.
5. Clean oil and dust from the coupler, then replace the
dust plugs.
A Your local KUBOTA Dealer can supply parts to adapt
couplers to hydraulic hoses.

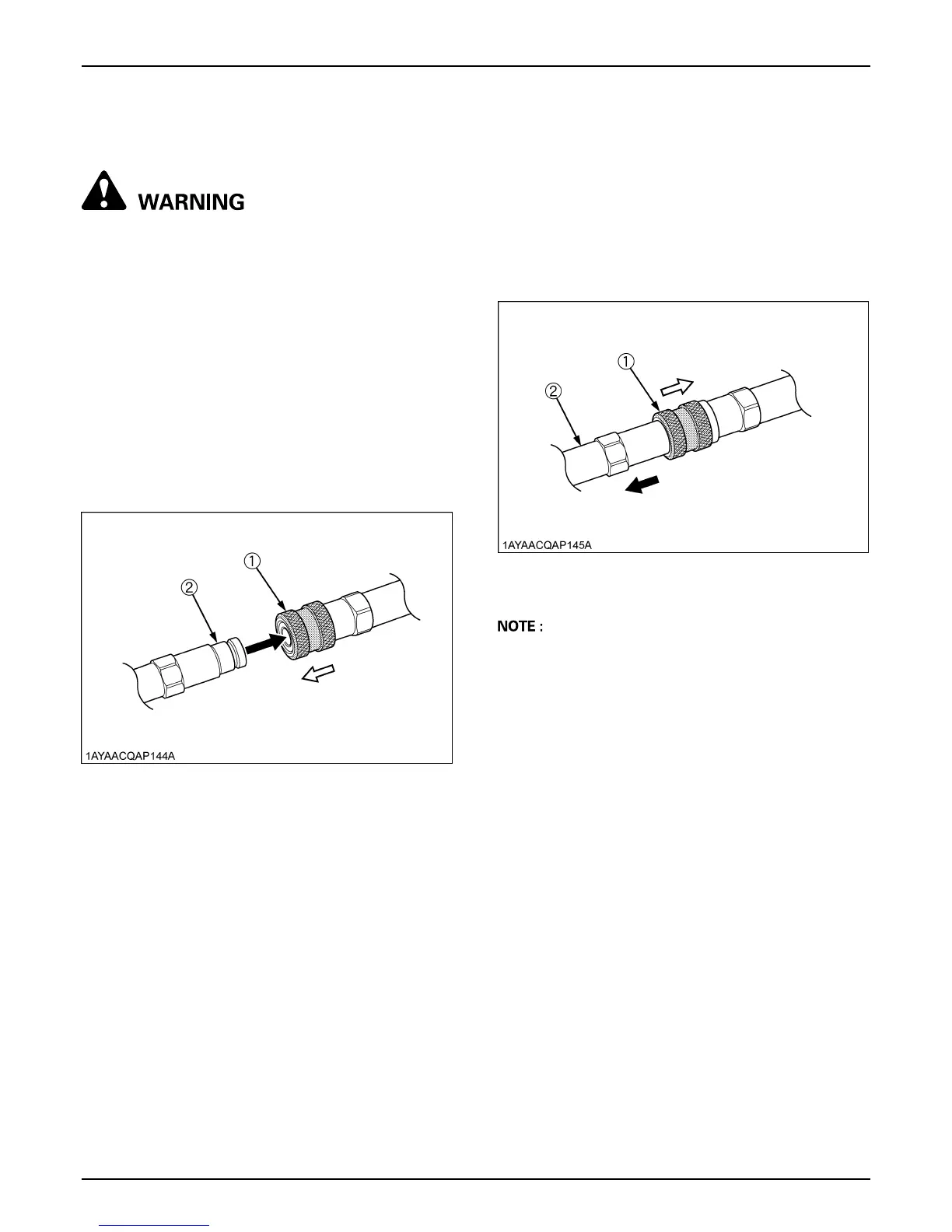

(1) Ring of female coupler
(2) Male coupler
(1) Ring of female coupler
(2) Male coupler
