Kubota WSM User Manual

2-M14
ZD18(F) · ZD21(F) · ZD28(F), WSM
TRANSAXLE

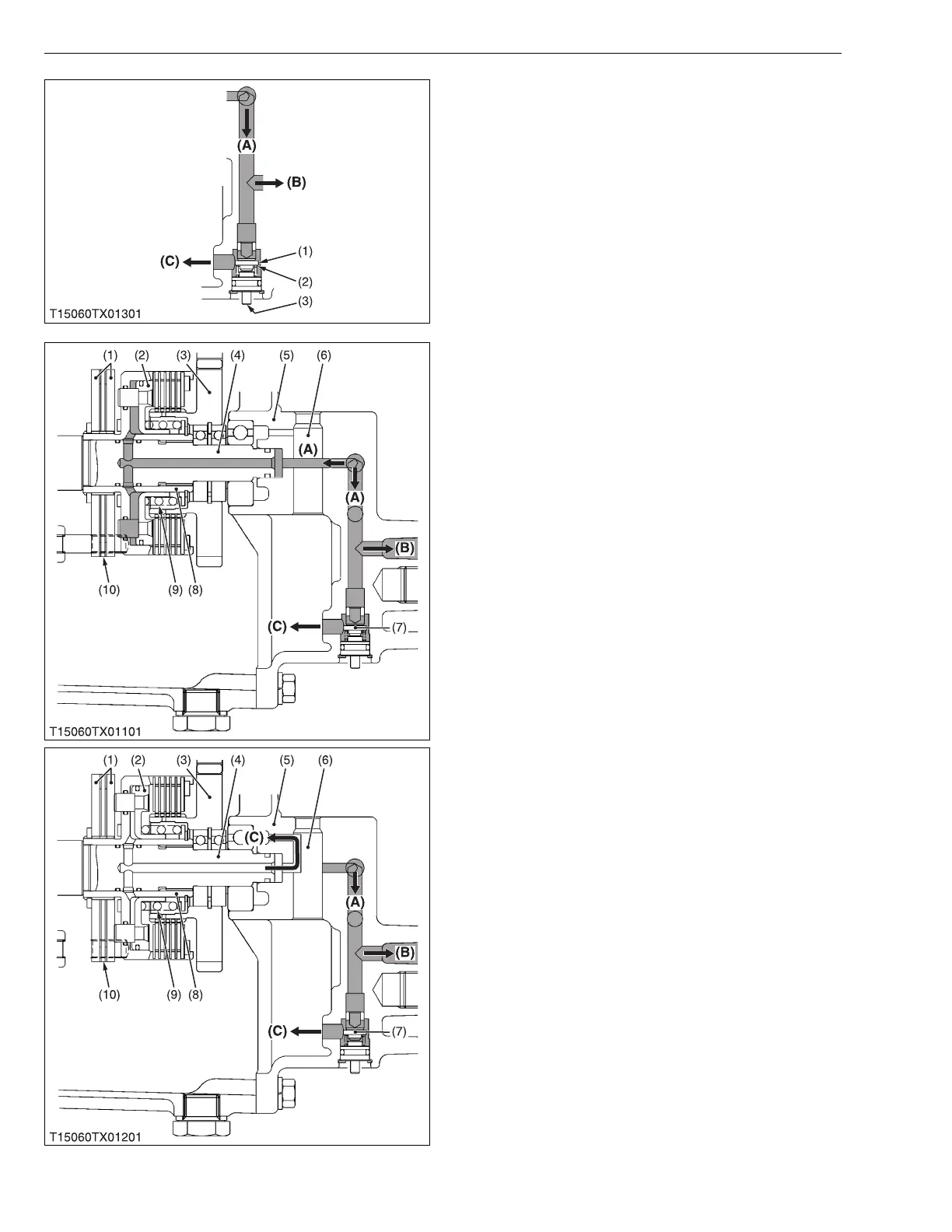

 Regulator Valve
This machine is controlled with the regulator valve so
that the oil sent from the hydraulic pump may become the
setting pressure. And the oil flows into PTO clutch and
hydrostatic transmission.
(Reference)
• Regulator valve setting pressure: 0.50 to 0.69 MPa
5.0 to 7.0 kgf/cm
2
71.1 to 99.6 psi
W1014232
 PTO Clutch “Engaged”
When the PTO clutch lever is set at the “Engaged”
position, the PTO clutch valve (6) rotates and form the oil
line to the PTO clutch pack.
Oil entering the clutch pack pushes the clutch piston
(5) to engage the clutch pack.
W1014380
 PTO Clutch “Disengaged”
When the PTO clutch lever is set at the
“Disengaged” position, the PTO clutch valve (6) rotates
and close the oil passage to the PTO clutch pack. The
oil in the PTO clutch pack drained into the transmission
case (5). Thus the clutch piston (2) is pushed back by
the spring (9).
When the piston (2) is pushed back, the piston push
to the brake pressure plate (1) so as to stop the rotation
and drag of the PTO shaft (4).
W1014560
(1) Poppet
(2) Spring
(3) Plug
(A) From Hydraulic Pump
(B) To Hydrostatic
Transmission
(C) To Transmission Case
(1) Brake Pressure Plate
(2) Clutch Piston
(3) Clutch Gear
(4) Clutch Shaft (PTO Shaft)
(5) Transmission Case
(6) PTO Clutch Valve
(7) Poppet
(8) Clutch Spline Boss
(9) Spring
(10) Brake Disc
(A) From Hydraulic Pump
(B) To Hydrostatic
Transmission
(C) To Transmission Case
(1) Brake Pressure Plate
(2) Clutch Piston
(3) Clutch Gear
(4) Clutch Shaft (PTO Shaft)
(5) Transmission Case
(6) PTO Clutch Valve
(7) Poppet
(8) Clutch Spline Boss
(9) Spring
(10) Brake Disc
(A) From Hydraulic Pump
(B) To Hydrostatic
Transmission
(C) To Transmission Case
KiSC issued 04, 2009 A
