2-M15
ZD18(F) · ZD21(F) · ZD28(F), WSM
TRANSAXLE
(B) Parking Brake

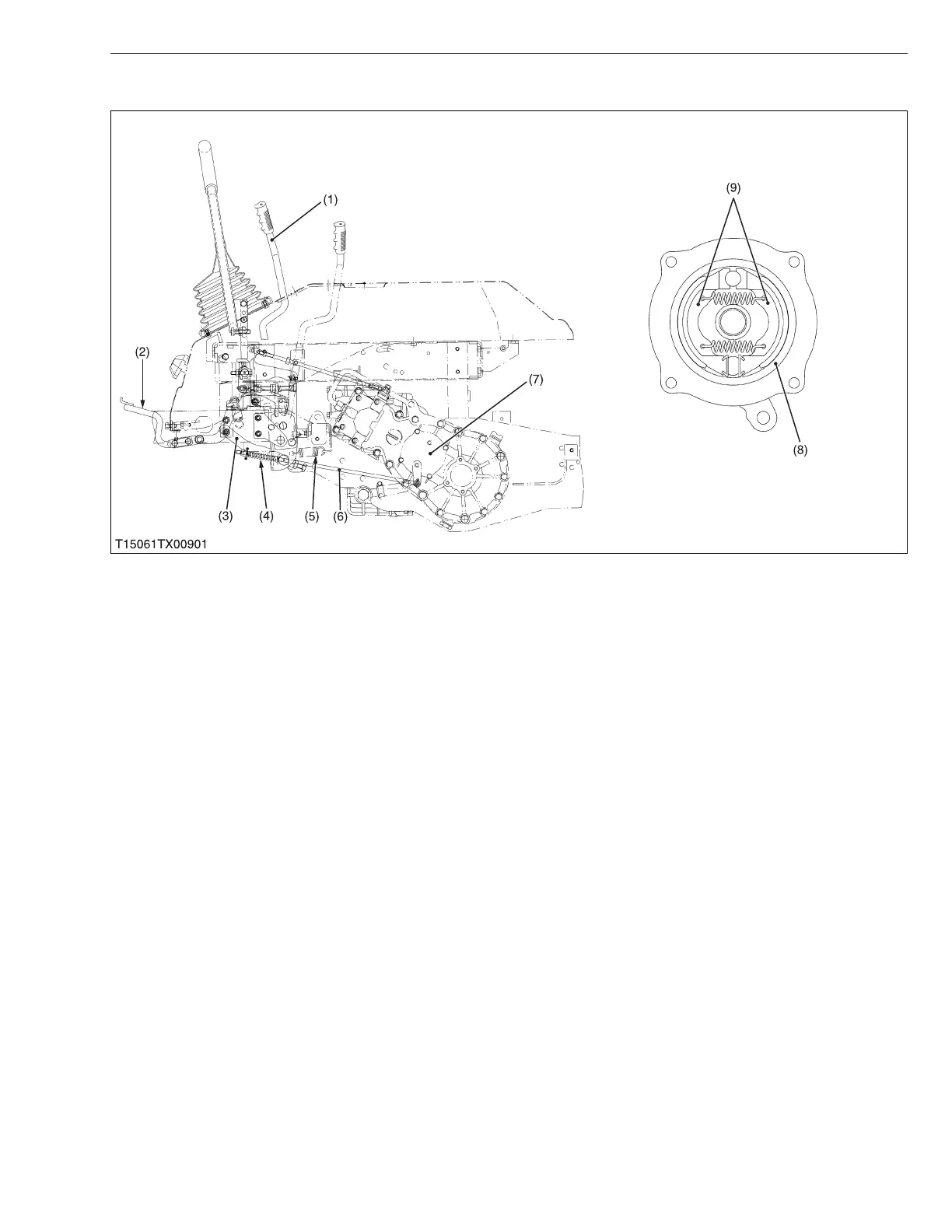

The parking brake is composed of parking brake lever (1), parking brake lock pedal (2), brake plate (3), parking
brake rod (6) and brake assembly (7). The brake is mechanical internal-expansion type with leading-trailing brake
shoes (9).
As the parking brake lock pedal (2) is pressed and the parking brake lever (1) is lifted up, the brake will be applied
and locked.
When the parking brake is released, the brake can be released if the parking brake lever is pulled back.
To prevent the brake from dragging when the parking brake is applied, this machine is designed so that the engine
may stop if the parking brake lever (1) is not released within few seconds after the engine is started.
(1) Parking Brake Lever
(2) Parking Brake Lock Pedal
(3) Brake Plate
(4) Parking Brake Spring
(5) Return Spring
(6) Parking Brake Rod
(7) Brake Assembly
(8) Brake Drum
(9) Brake Shoe
To Next Page
