2-M9
ZD21N-EC, ZD21-EC, ZD28-EC, WSM
TRANSAXLE
(7) Final Reduction Gear Section

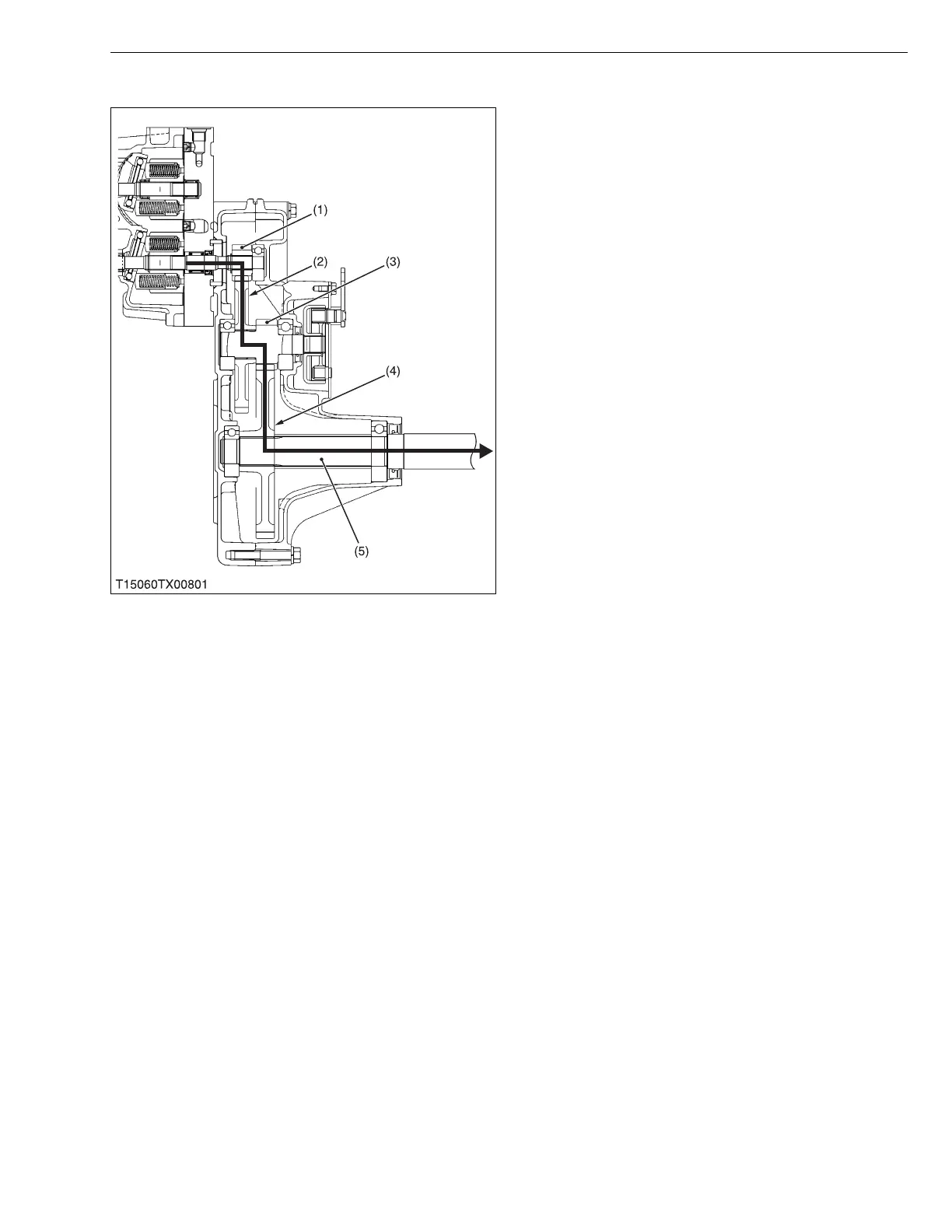

As for this machine, power is transmitted from the 12T
gear (1) on the HST motor shaft to the rear axle (5)
through 53T gear, 14T gear shaft and 57T gear.
W1013563
(1) 12T Gear
(2) 53T Gear
(3) 14T Gear Shaft (Brake Shaft)
(4) 57T Gear
(5) Rear Axle
To Next Page
