5-M11
ZD21N-EC, ZD21-EC, ZD28-EC, WSM
ELECTRICAL SYSTEM

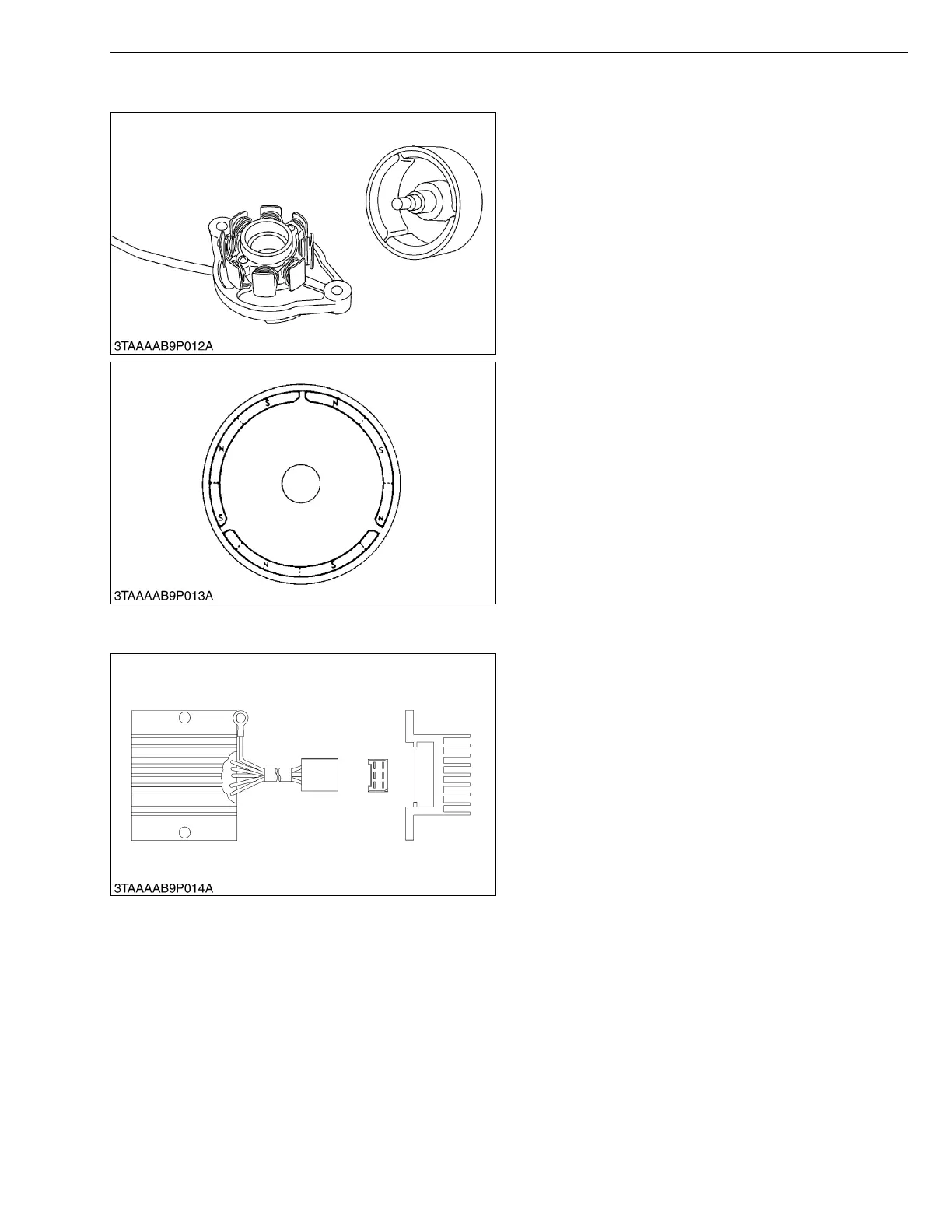

[1] AC DYNAMO
The dynamo is an 8-8 pole rotating magnet type
generator. It is simple in construction, consisting of a
stator and rotor. The rotor is made up of eight permanent
magnet pole pieces assembled on a shaft and rotates on
the center of the stator around which eight
electromagnetic coils are provided for.
This dynamo produces higher voltage in slow speed
rotation, and charges electric current to the battery
during engine idling.
W1013535
[2] REGULATOR
The regulator performs rectification and voltage
regulation.
The regulator converts AC into DC which flows
through the power consuming circuits and the battery,
and also charges the battery.
If however, the battery voltage exceeds a certain
level, the DC current is cut off from the charging circuit to
prevent overcharging.
W1013678
