5-M9
ZD21N-EC, ZD21-EC, ZD28-EC, WSM
ELECTRICAL SYSTEM

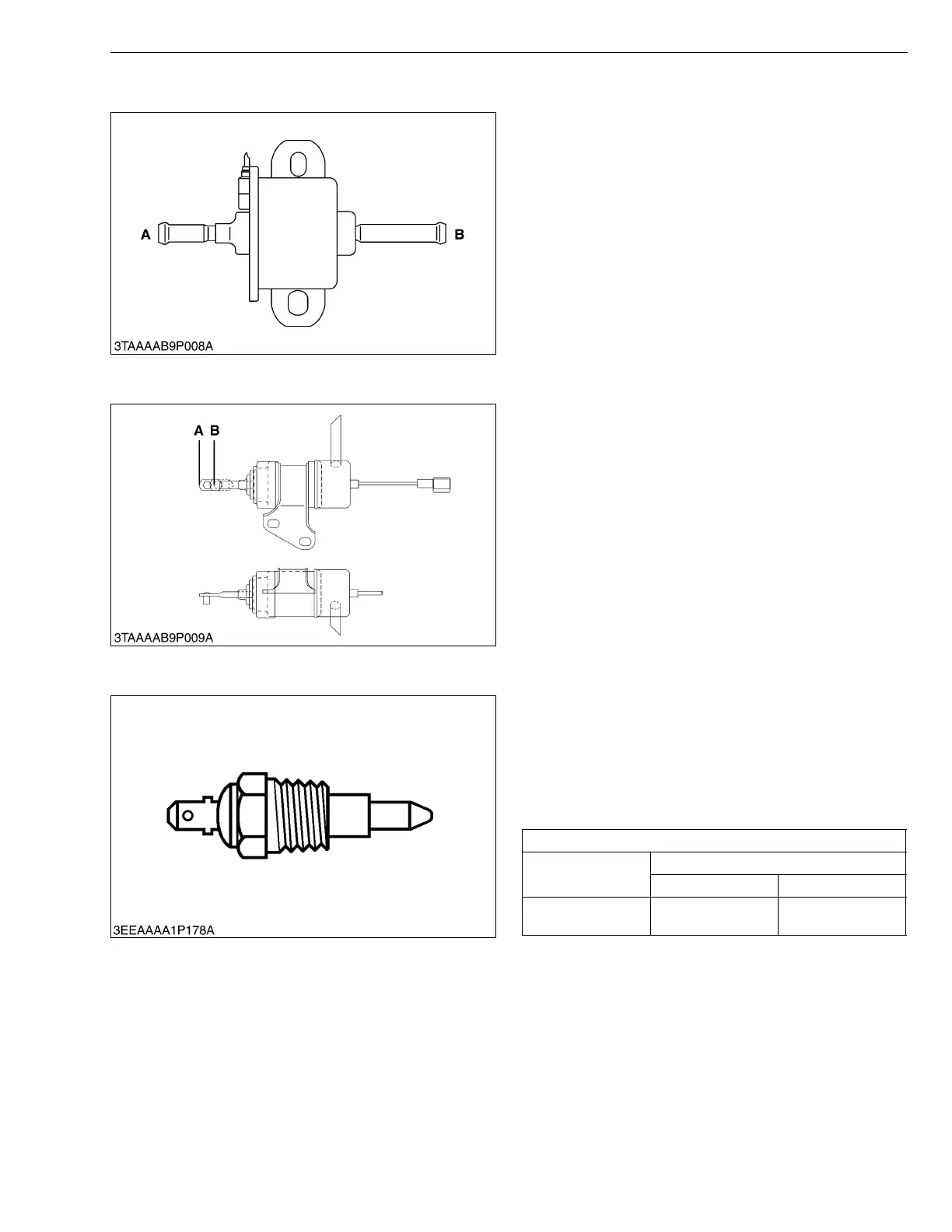

[4] FUEL PUMP
An electro magnetic fuel pump uses a transistor that
causes the pump to start pumping fuel when the main
switch is turned to the “ON” position.
Therefore, fuel is supplied to the fuel injection pump
regardless of engine speed. This pump is driven by the
battery. It can therefore be operated even with the
engine being stopped.
W1013306
[5] ENGINE STOP SOLENOID
The timer relay is provided to actuate the engine stop
solenoid approx. 10 seconds to stop after the main
switch is turned from ON position to OFF position.
Flowing of the battery current into the coil while the
timer relay contact point is closed attracts the plunger to
actuate the stop lever of the injection pump. When the
battery current stops, the plunger is returned to the
original position by the spring.
W1013394
[6] COOLANT TEMPERATURE SWITCH
The coolant temperature switch is installed to the
water flange of engine, and its tip is in touch with the
coolant.
The horn rings when the coolant temperature goes up
more than the specified value.
When the coolant temperature falls below the
specified value, the horn stops.
A: Inlet B: Outlet
A: ON B: OFF
Characteristics of Coolant Temperature Switch
Type
Operation Temperature
Horn Rings Horn Stop
Normally open
120 to 126 °C
(216 to 227 °F)
116 °C (209 °F)
To Next Page
