6-M2
ZD21N-EC, ZD21-EC, ZD28-EC, WSM
ROTARY MOWER
2. LIFTING MECHANISM
The lifting of mower is performed by the hydraulic system on the machine.
For avoiding danger, the mower should be kept lifting when traveling. When the position control lever is moved to
“LIFT” position, the rear arm (3) are risen with lift shaft (2) by the oil pressure of hydraulic system.
Therefore, front arm (5) connected with the horizon plate (4) are lifted at the same time.
As this link system is a parallel linkage, the mower can be kept parallel at every position.
CAUTION
• Never operate mower in transport position.

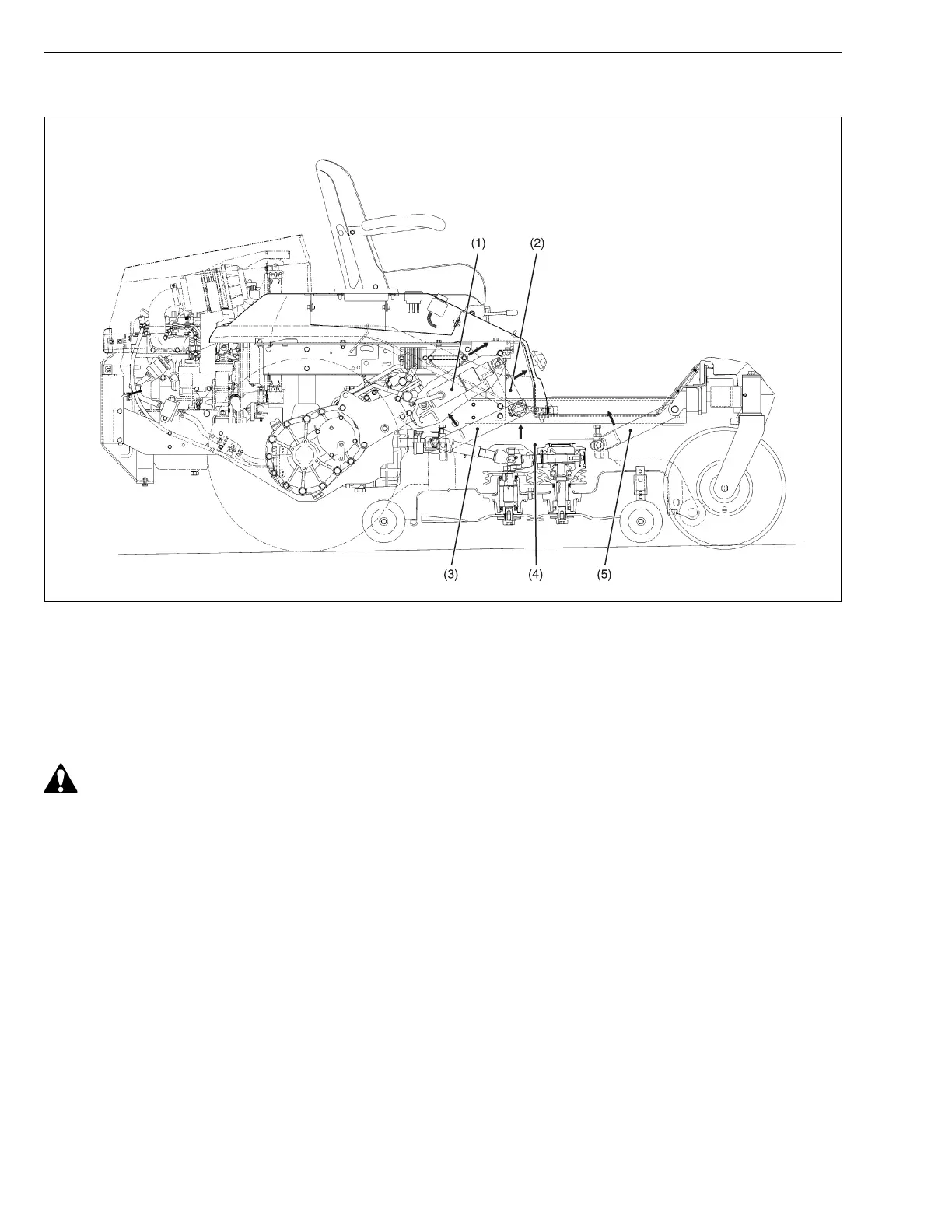

(1) Lift Cylinder
(2) Lift Shaft
(3) Rear Arm (4) Horizon Plate (5) Front Arm
T15060MO00202
