6. CYLINDER HEAD/VALVES
6-9
Downtown 300i ABS

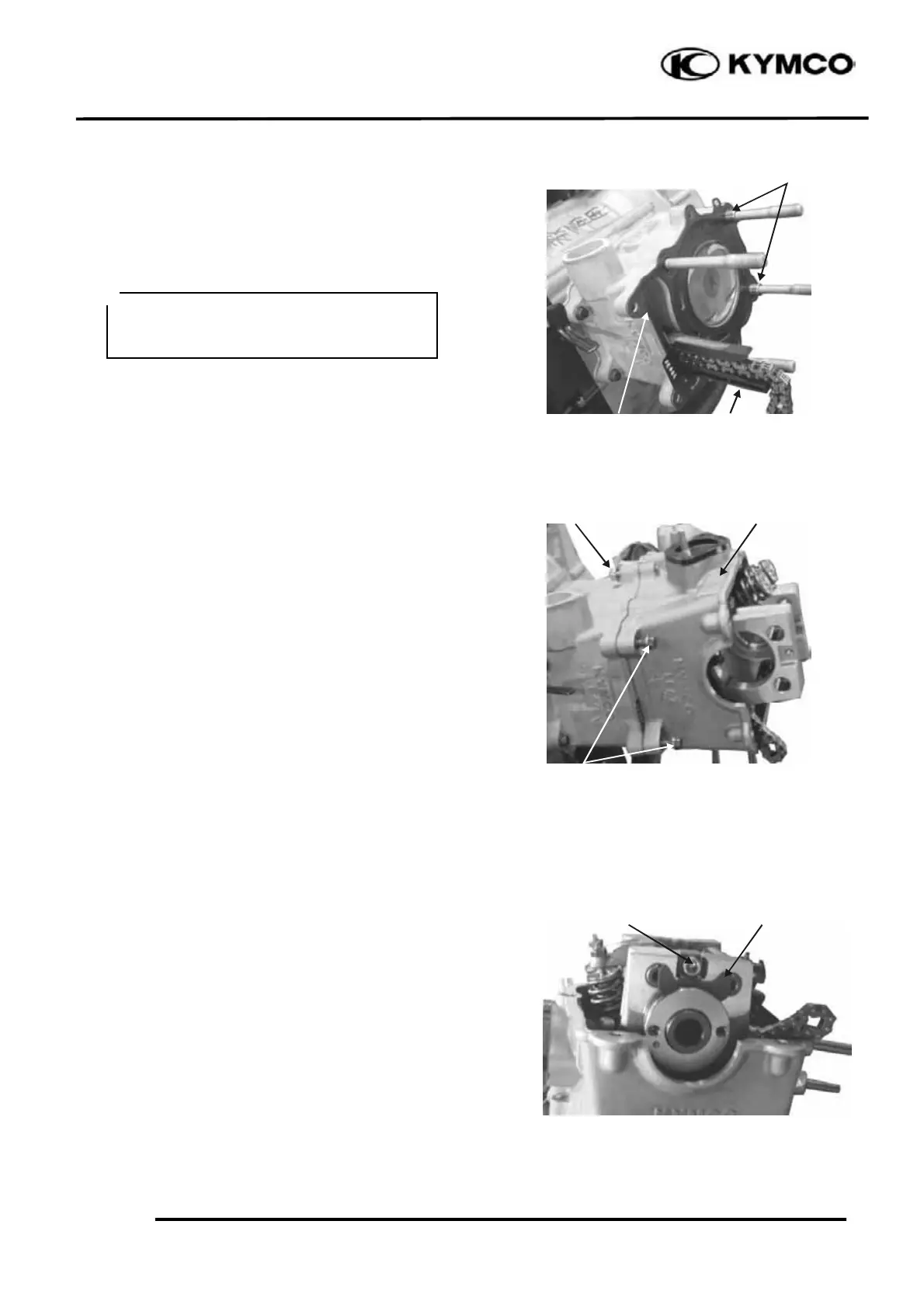

CYLINDER HEAD INSTALLATION
Install the dowel pins and a new cylinder
head gasket.
Install the cam chain guide.
Install the cylinder head.
Install the camshaft.
Install the intake valve rocker arm and the
rocker arm shafts.
CAMSHAFT INSTALLATION
Install the set plate to prevent the rocker arm
shaft from pull out.
Torque: 1.2 kgf-m (8.9 N-m)
• Clean the intake valve rocker arm
shaft off any grease before
installation.
＊
Dowel Pins
Gasket
Cam chain guide
Nut
Bolts
Cylinder Head
Fix plateBolt
