2. FRAME COVERS/EXHAUST MUFFLER
2-9
ATV 50

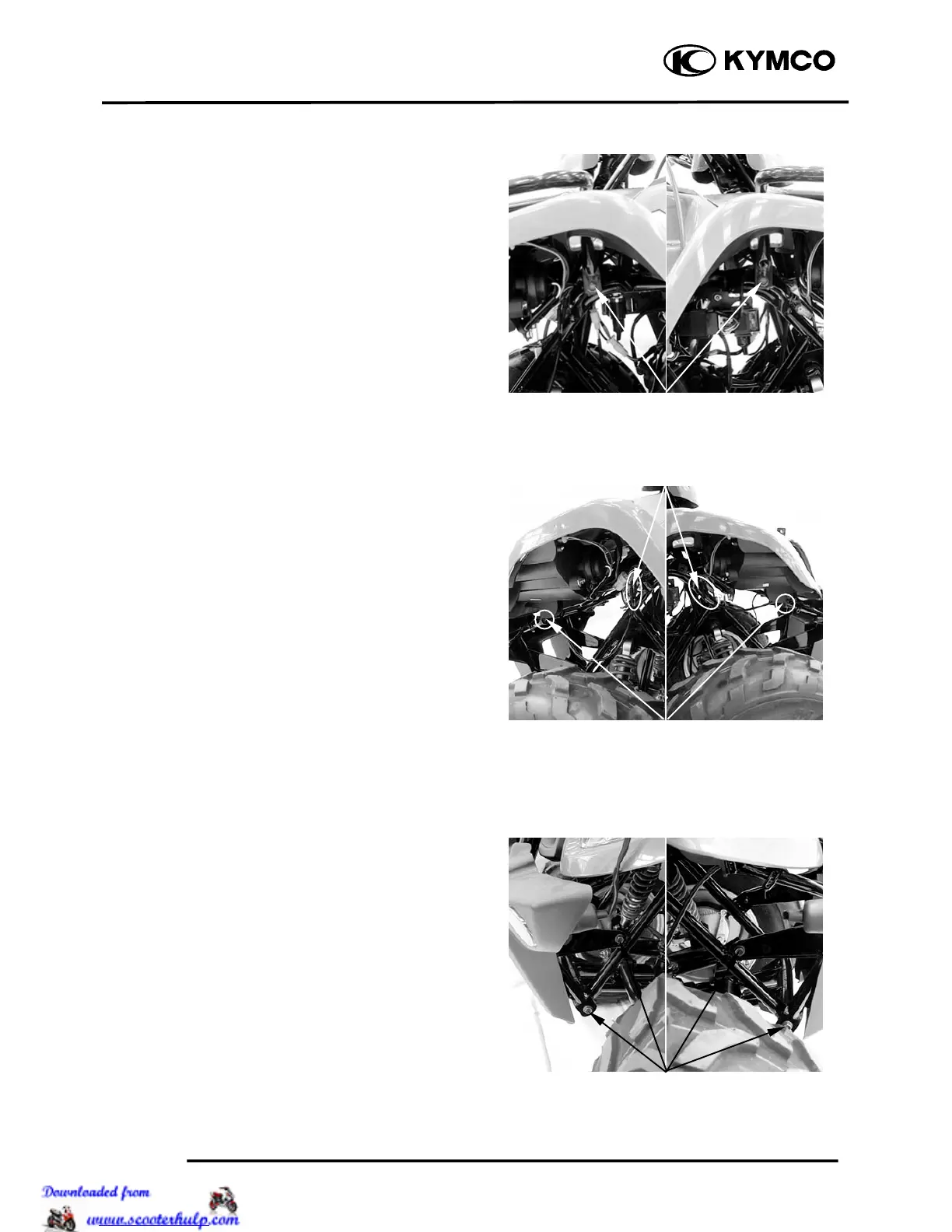

Remove the two mounting bolts from the
front cargo rack right/left side under the
front fender, remove the front cargo rack.
Installation is in the reverse order of
removal.
FRONT CARRIER
REMOVAL/INSTALLATION
Remove front cargo rack (see page 2-8).
Disconnect the right and left signal light
connectors. (ON ROAD)
Remove the bolts from the right/left
headlight case.
Remove the four mounting bolts from the
front carrier right/left side, then remove the
front carrier.
Installation is in the reverse order of
removal.
Mounting Bolts
Bolts
Right/Left Signal Light Connectors
Mounting Bolts
To Next Page
