6. ENGINE REMOVAL/INSTALLATION
6-2
ATV 50
ENGINE REMOVAL
Remove the frame covers (see chapter 2).
Remove the exhaust muffler (see chapter 2).
Remove the oil tank (see chapter 4)
Remove the fuel tank (see chapter 5).

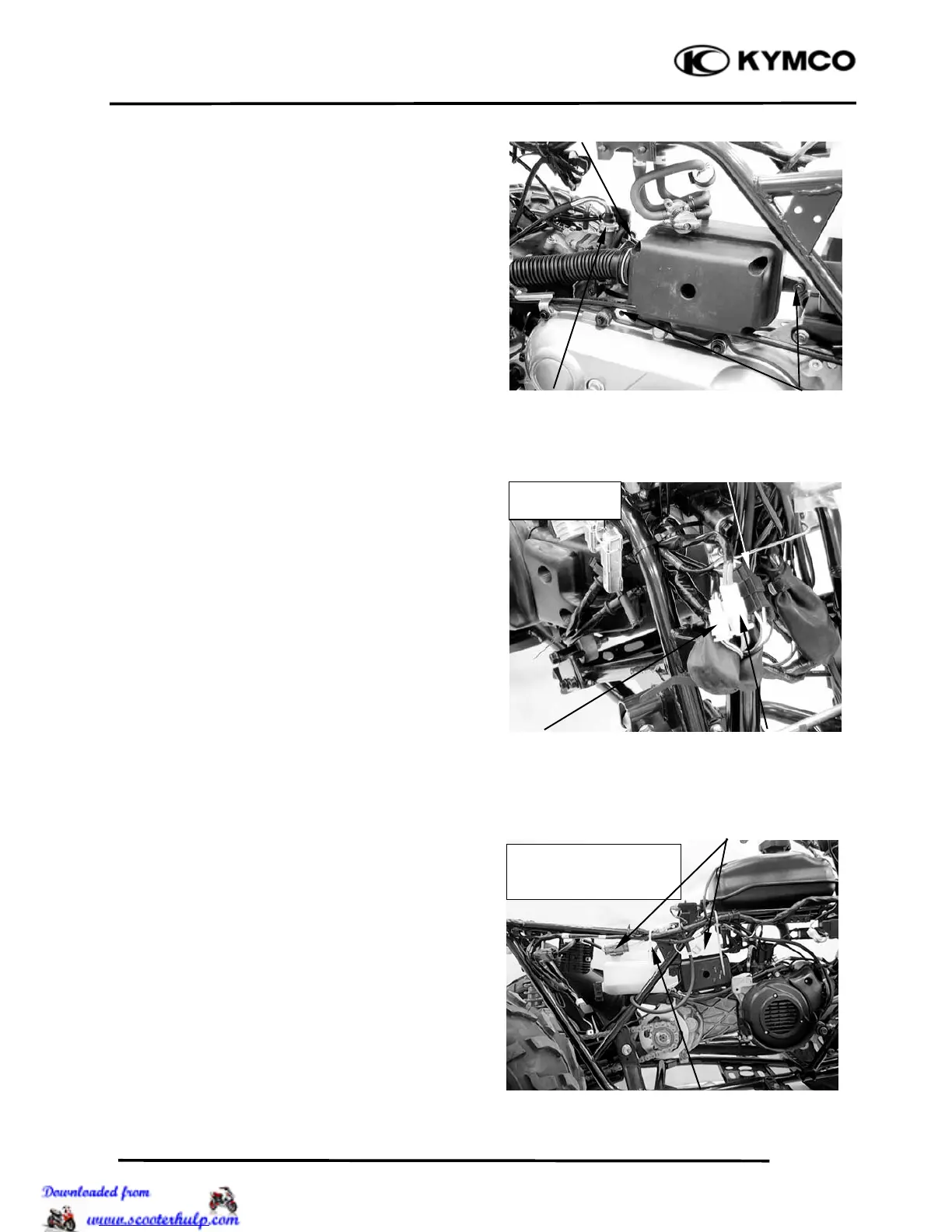

Remove the two bolts attaching the air
cleaner case.
Loosen the band between the air cleaner and
carburetor to remove the air cleaner case.
Remove the carburetor cap.
Disconnect the auto bystarter, A.C.
generator/pulser and starter motor wire
connectors.
Bolts
Band
Starter Moto
r
Wire Connector
A.C.Generator
/
Pulser Wire Connecto
r
Carburetor Cap
Auto Bystarte
r
Wire Connector
MX’ER 50
A.C.Generator Wire Connecto
r
s
MXU 50 REVERSE
MXU 50
Pulse
r
Wire Connecto
r
s
