6. ENGINE REMOVAL/INSTALLATION
6-3
ATV 50

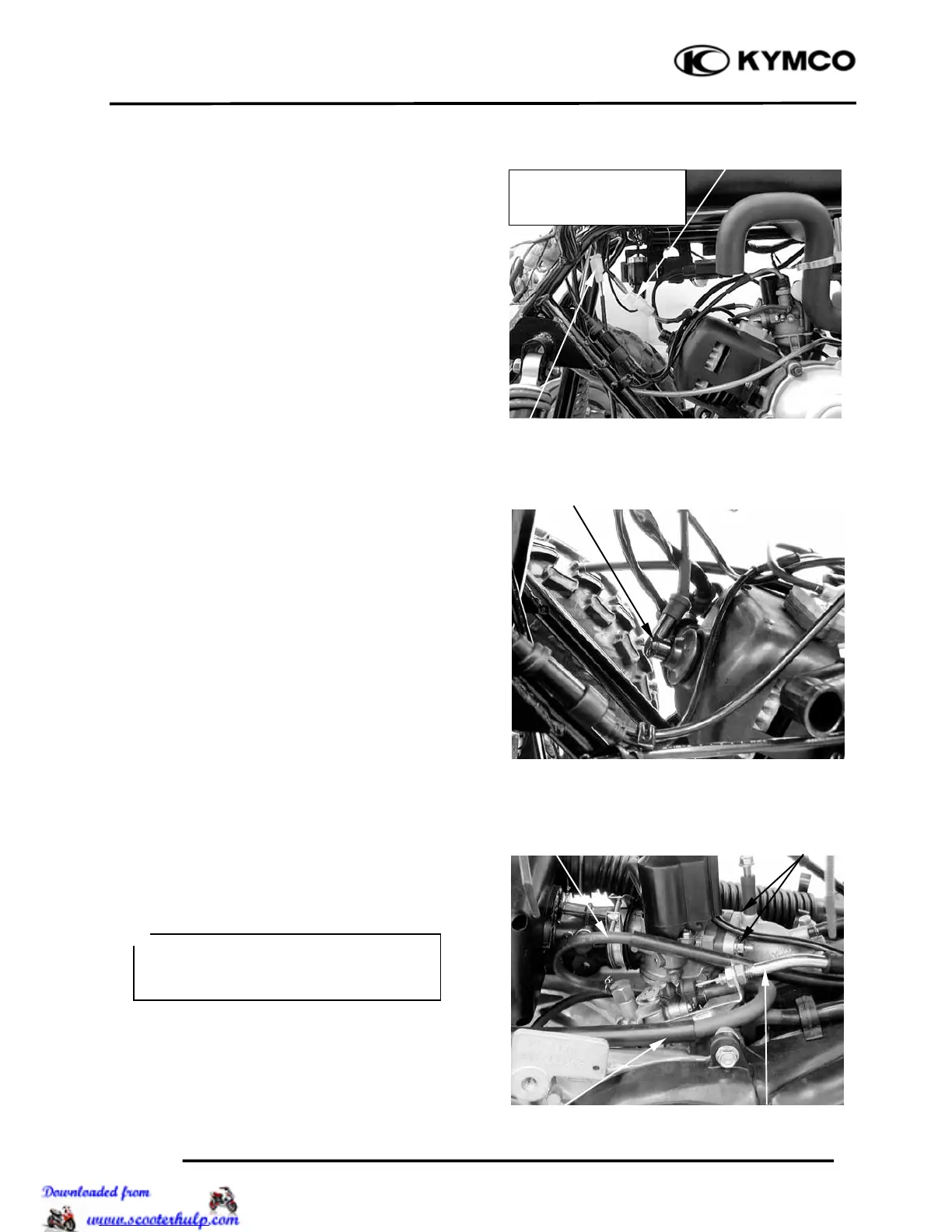

Remove the spark plug cap.
Disconnect the oil pump control cable from
the pump body.
Disconnect the oil inlet and outlet line from
the oil pump.
Remove the two carburetor lock nuts.
Remove the carburetor.
Oil Inlet Line
Control Cable
Spark Plug Cap
Carburetor Lock Nuts
Starter Motor Wire Connecto
r
Auto Bystarte
r
Wire Connecto
r
MXU 50 REVERSE
MXU 50
Oil Outlet Line
After the oil inlet line is disconnected,
plug the oil line opening to prevent oil
from flowing out.
＊
