6. ENGINE REMOVAL/INSTALLATION
6-4
ATV 50

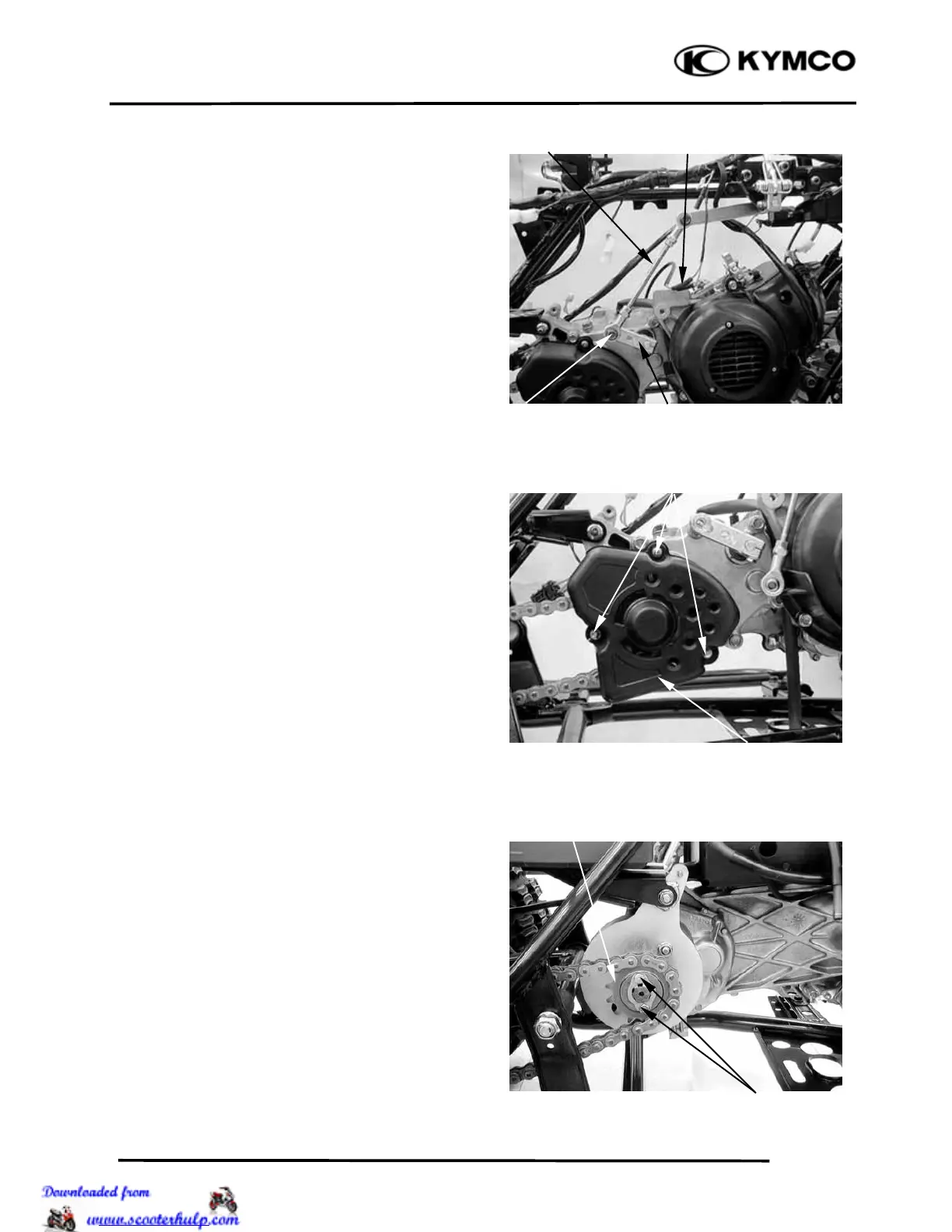

MXU 50 REVERSE:
Disconnect the neutral switch connectors.
Remove the bolt/nut at drive select rod, then
remove the drive select rod from drive
select arm.
MXU 50 REVERSE:
Remove the three bolts at the drive sprocket
cover, then remove the protector cover.
Remove the rear drive chain gear on the
bolts.
Remove the drive chain gear.
Bolts
Drive Chain Gea
r
Drive Select Rod Neutral Switch Connectors
Bolt
/
Nut Drive Select Ar
m
Bolts
Drive Sprocket Cove
r
