5. FUEL SYSTEM
5-3
ATV 50

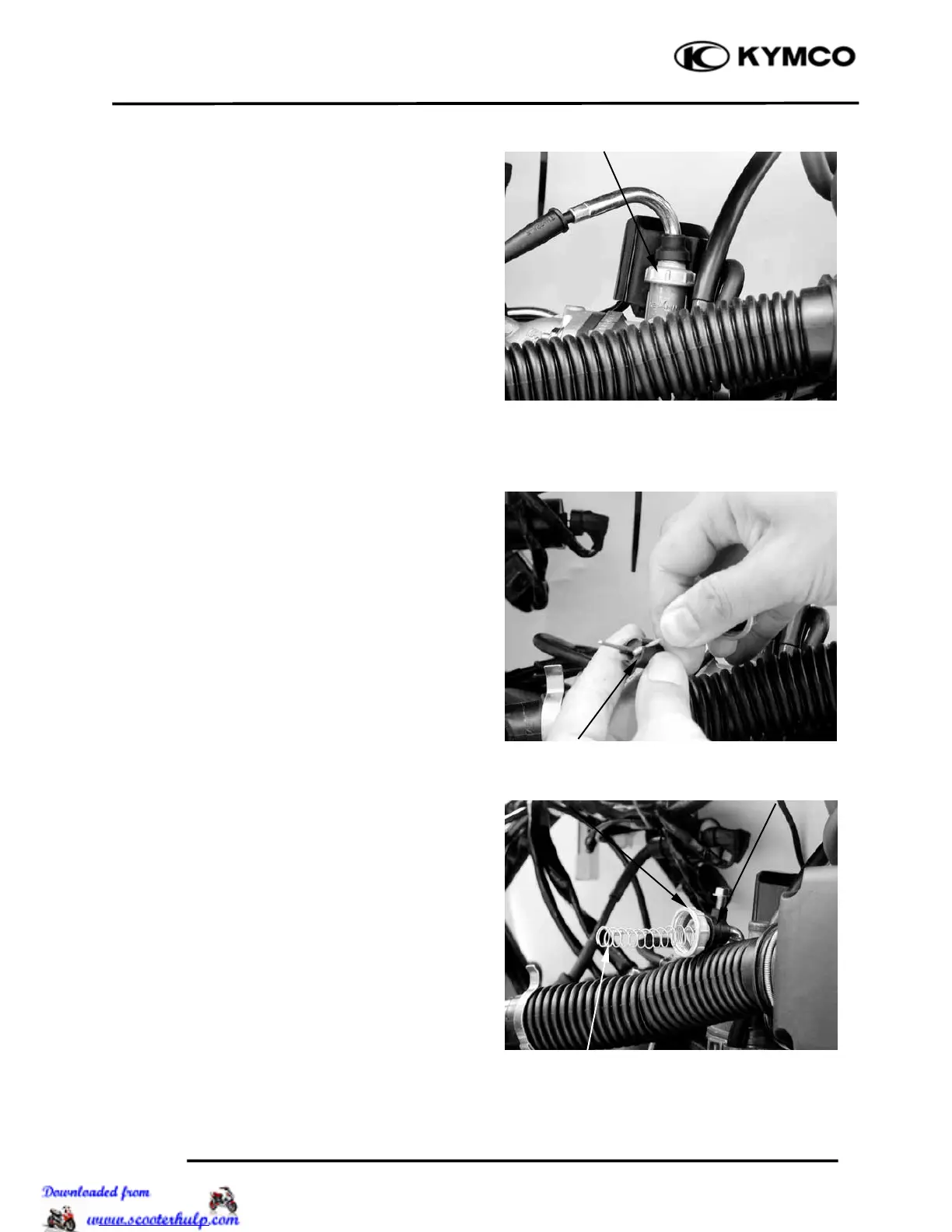

THROTTLE VALVE DIS-
ASSEMBLY/CARBURETOR
REMOVAL
Loosen the carburetor cap and remove the
throttle valve.
Disconnect the throttle cable from the
throttle valve.
Remove the throttle valve spring, carburetor
cap and rubber seal.
Carburetor Cap
Throttle Valve
Rubber Seal
Carburetor Cap
Spring
