2. FRAME COVERS/EXHAUST MUFFLER
2-14
ATV 50

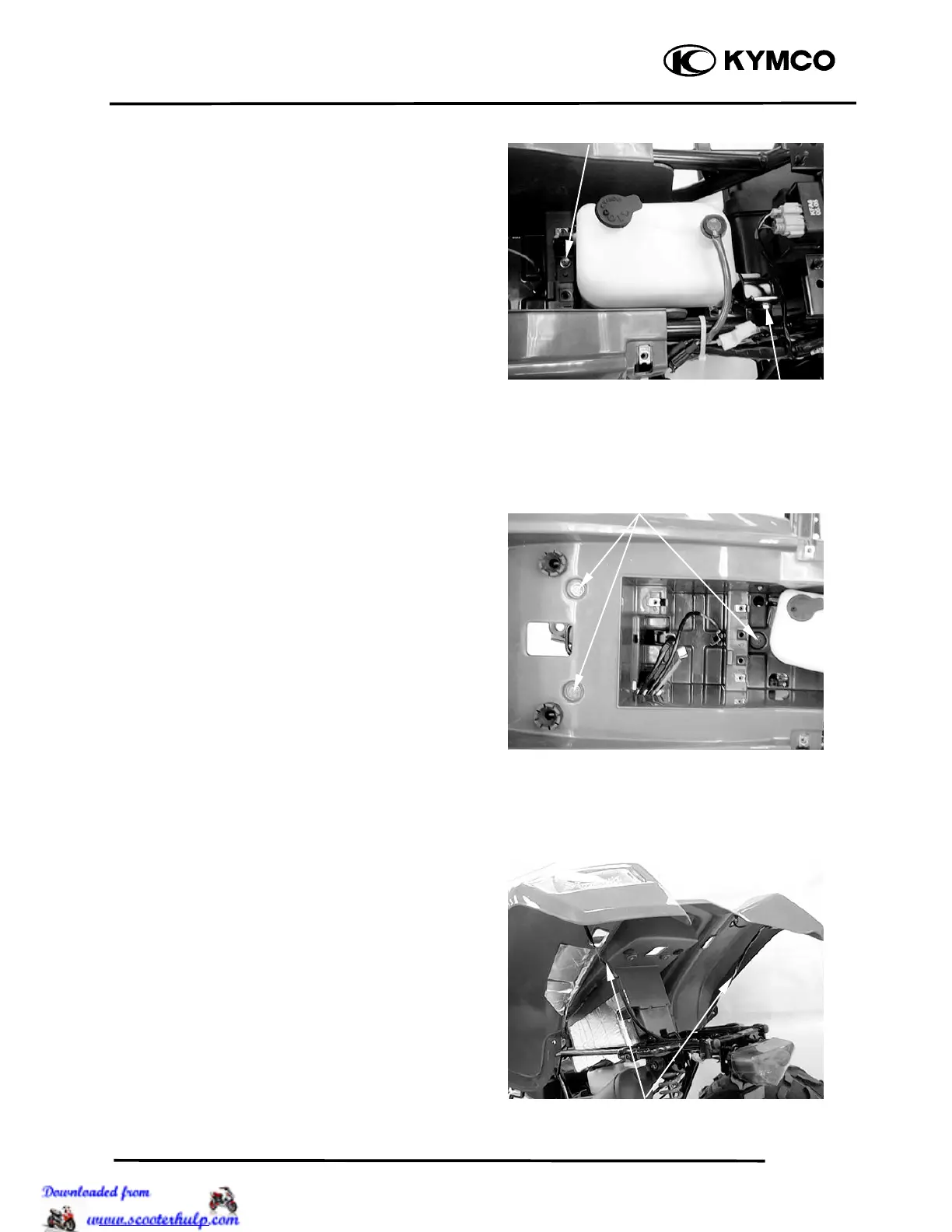

REAR FENDER
REMOVAL/INSTALLATION
Remove seat(see page 2-8), battery(see page
15-5 ), rear cargo rack (see page 2-10) and
right/left footboard (see page 2-10).
Remove one bolt and one nut, then remove
the oil tank.
Remove the three bolts from the rear fender.
Raise the rear fender and pass the
fuse/battery cables/start relay through out
the rear fender
Disconnect the rear right and left signal
light connectors.
Installation is in the reserve order of
removal.
Bol
t
Nu
t
Bolts
Connecto
r
