3. INSPECTION/ADJUSTMENT
3-11
ATV 50

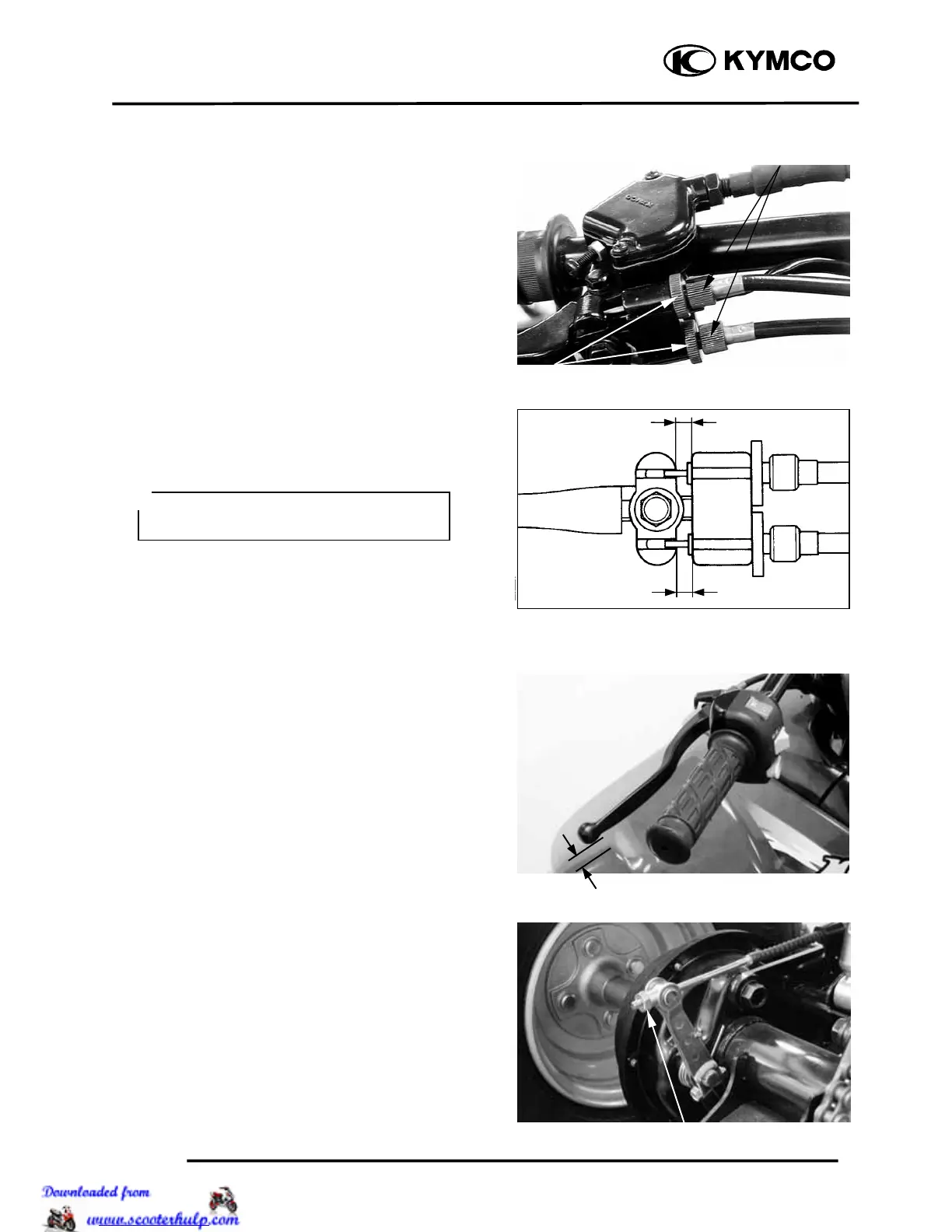

Adjust brake lever free play:
Loosen the lock nuts.
Turn the adjusters in or out until the
specified free play is obtained.
Turning adjusters in that the free play is
increased.
Turning adjusters out that the free play is
decreased.
The difference between both clearances
should be 2 mm (0.08 in)or less when front
brake is applied.
Tighten the lock nuts.
REAR BRAKE (drum brake)
Measure the rear brake lever free play.
Free Play: 10～20 mm (0.4 – 0.8 in)
If the free play do not fall within the limit,
adjust by turning the adjusting nut.
Adjusting Nu
