4. LUBRICATION SYSTEM
4-3
SUPER8 50
Bol
t
Ri
g
ht Crankcase Cove
r
Oil Pump Drive Gear
Circlip
Oil Pump Gear
Oil Pump
Bolts
O-rings

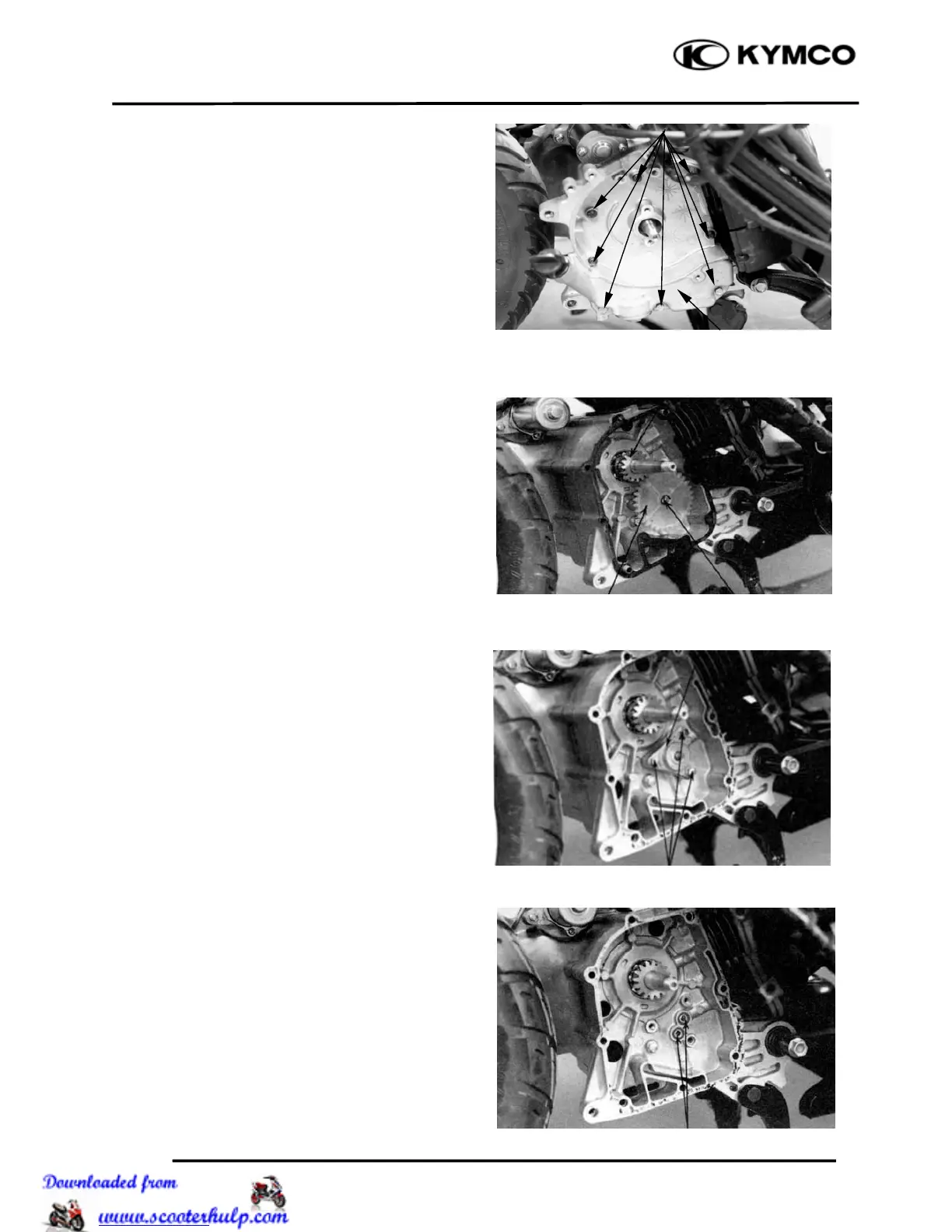

OIL PUMP
REMOVAL
Remove the exhaust muffler.
Remove the rear fork.
Remove the A.C. generator flywheel. (
Ö
14-7)
Remove the A.C. generator stator and pulsar
coil. (
Ö
14-6)
Remove the eight right crankcase cover bolts
and the right crankcase cover.
Remove the gasket and dowel pins.
Remove the oil pump drive gear circlip.
Remove the oil pump gear.
Remove the oil pump mounting bolts.
Remove the oil pump.
Remove the two O-rings.
Inspect the two O-rings for damage or
deterioration.
